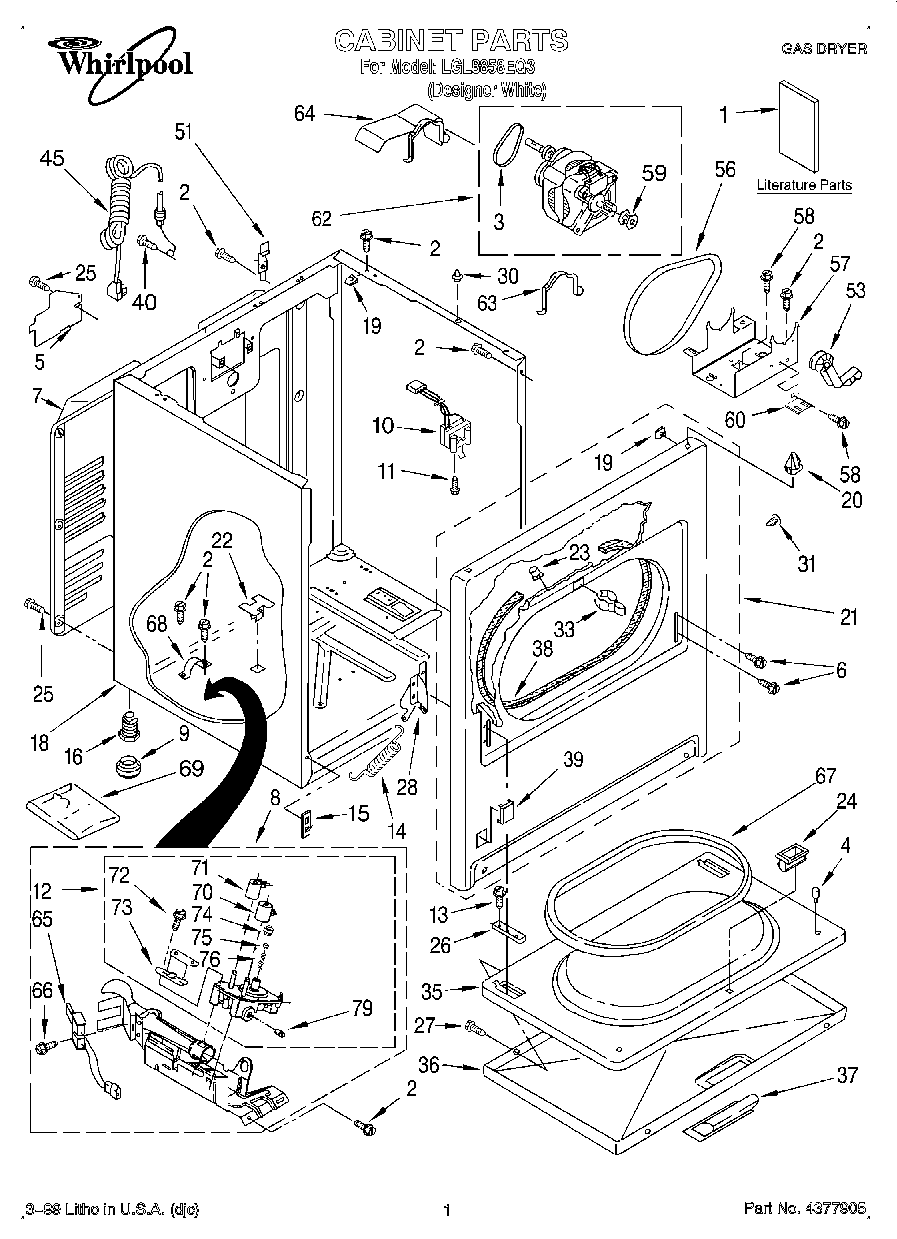

LGL8858EQ3 01 – CABINET, LITERATURE

Products

Position	Product
1	WPL LIT3406072
1	WPL LIT3405341
1	WPL LIT3406699
2	SCREW
3	WP3405160 Whirlpool Belt Assembly
4	238614 Whirlpool Bumper Hinge
5	W11539855 Whirlpool Refrigerator Pump
6	Screw, 10-32 x 1/2
7	280043 Whirlpool Rear Panel
8	WPL 3402844
9	WP3391943 Whirlpool Foot Boot
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	279923 Whirlpool Gas Valve
13	WP308685 Whirlpool Microwave Screw
14	WPW10041960 Whirlpool Door Spring
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	279740 Whirlpool Panel Primary with O/S2
22	Plug, Cabinet
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	WP693995 Whirlpool Screw
26	W11252547 Whirlpool Clip Assembly
27	WP694091 Whirlpool Screw
28	WP8066056 Whirlpool Door Hinge
28	WP8066057 Whirlpool Door Hinge
30	Locator, Top
31	WP3404413 Whirlpool Plug
33	279570 Whirlpool Dryer Door Latch Kit
35	WP695737 Whirlpool Door
36	WP3393549 Whirlpool Door Assembly
37	WP348721 Whirlpool Handle
38	W11035878 Whirlpool Bearing and Seal
39	Plug, Front Panel (White)
40	W10850756 Whirlpool Screw
45	W11222083 Whirlpool Power Cord
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	Base, Motor
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
60	3401805 Whirlpool Bracket
62	WPW10396039 Whirlpool Drive Motor
63	WP660658 Whirlpool Clamp
64	3401800 Whirlpool Shield
65	279311 Whirlpool Dryer Flat Igniter with Bracket
66	WPW10366705 Whirlpool Screw
67	W10906683 Whirlpool Door Seal
68	341029 Whirlpool Clamp
69	49572A Whirlpool Dryer Propane Gas Conversion Kit
70	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
72	694421 Whirlpool Screw Assembly
73	694538 Whirlpool Bracket
74	WP694424 Whirlpool Limiter
75	WP694423 Whirlpool Regulator
76	WP694422 Whirlpool Spring
79	W10295523 Whirlpool Plug
