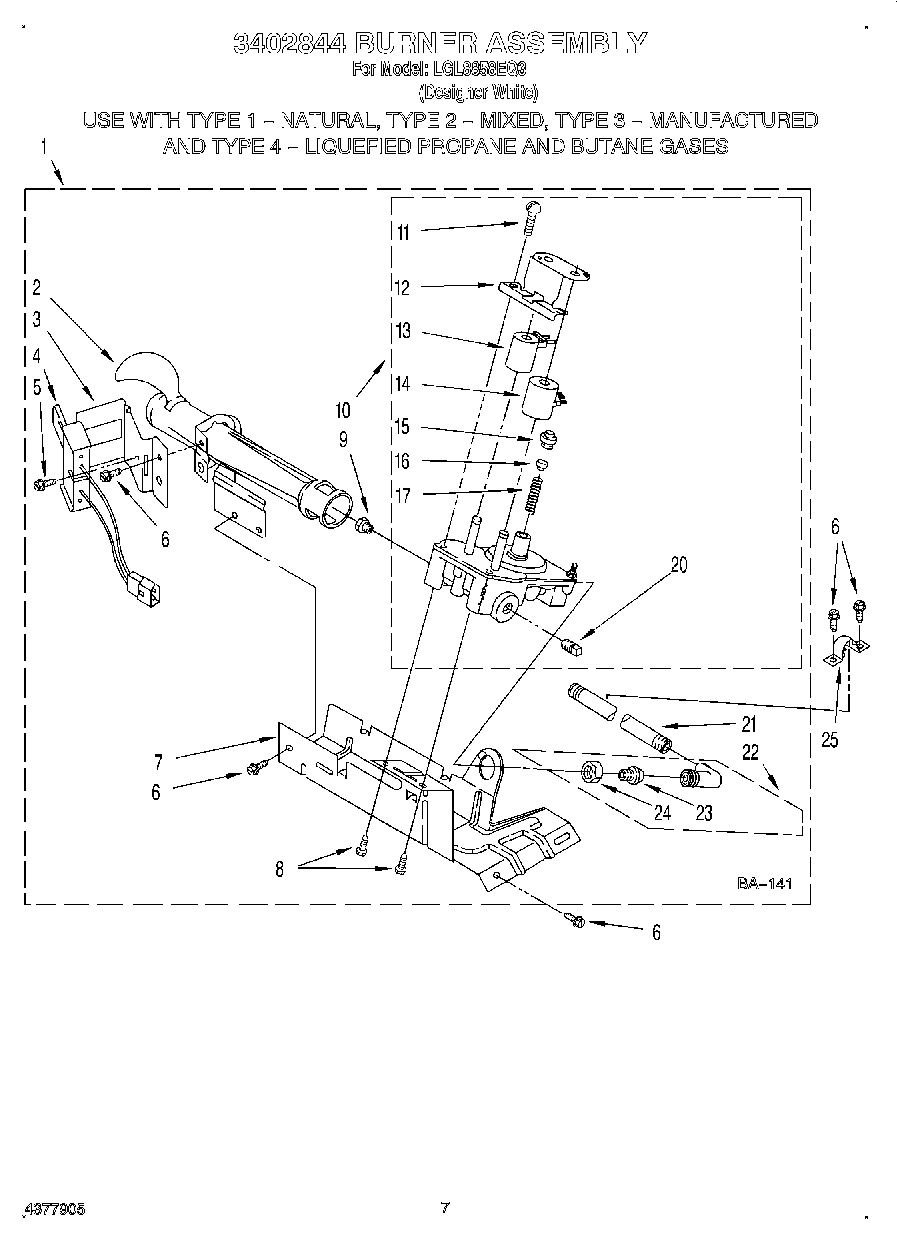

LGL8858EQ3 04 – 3402844 BURNER ASSEMBLY

LGL8858EQ3 04 – 3402844 BURNER ASSEMBLY

Written by

in

LGL8858EQ3 04 – 3402844 BURNER ASSEMBLY

Products

PositionProduct
1WPL 3402844
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9WP234868 Whirlpool Gas Orifice
9Orifice, Burner (Type 3)
9Orifice, Burner (Type 2)
9WP234826 Whirlpool Gas Orifice
9WP229742 Whirlpool Gas Orifice
10279923 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
20W10295523 Whirlpool Plug
21Pipe, Gas Supply
22Elbow Union Assembly
233393767 Whirlpool Pipe
24Nut, Compression
25341029 Whirlpool Clamp
2549572A Whirlpool Dryer Propane Gas Conversion Kit
