LGLF305MMFB 05 – BURNER

LGLF305MMFB 05 – BURNER

Written by

in

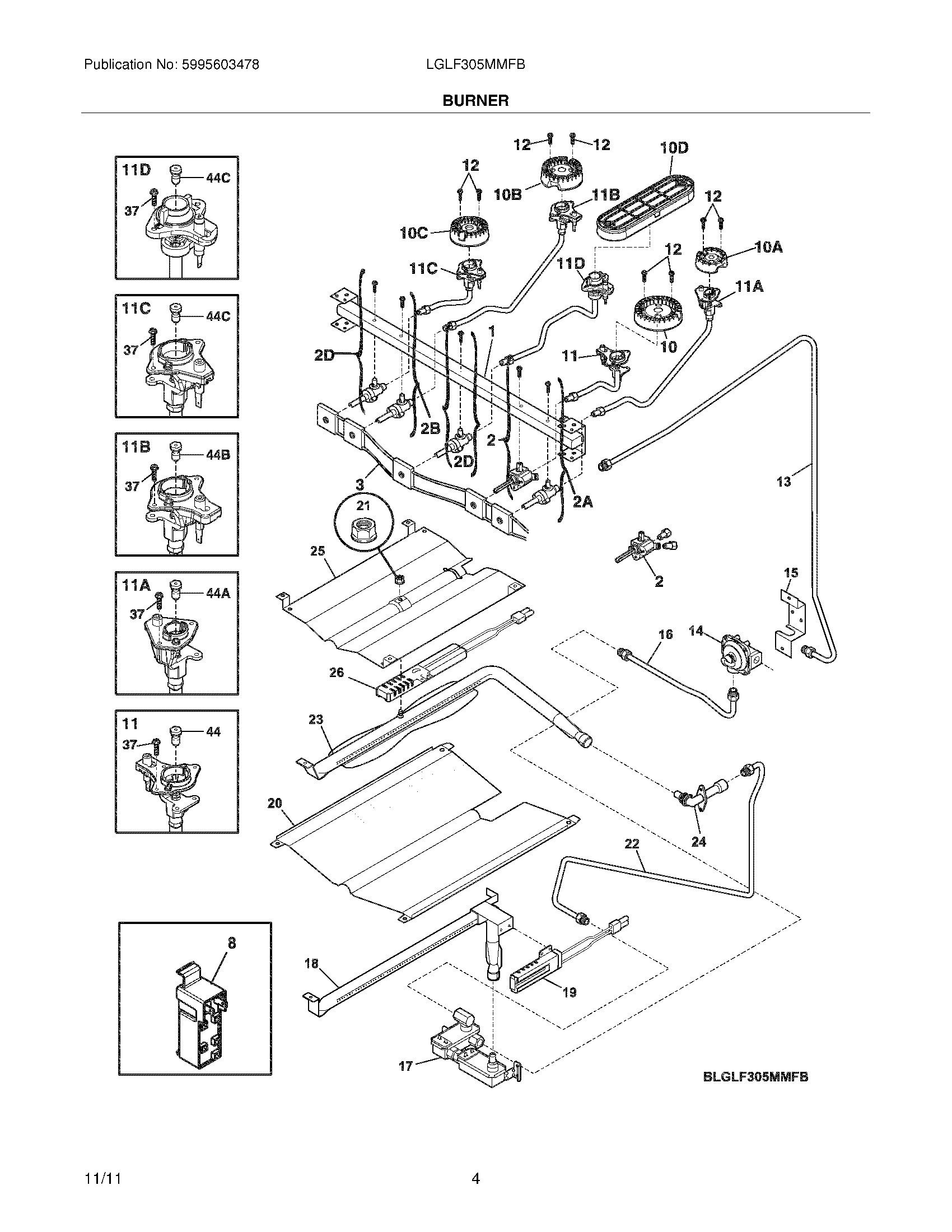

LGLF305MMFB 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	316021132 Frigidaire Screw
NI	316001017 Frigidaire Screw
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	5304494425 Frigidaire Oven Harness
NI	316401500 Frigidaire Oven Cover
NI	316257400 Frigidaire Oven Bracket
NI	316215600 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
1	316417901 Frigidaire Oven Manifold
2D	WCI 5303935359
2B	WCI 5303935354
2	WCI 5303935358
2A	WCI 5303935353
3	316580615 Frigidaire Range Spark Ignition Switches with Wire Harness
8	5304508269 Frigidaire Oven Range Spark Module Kit
10C	316558300 Frigidaire Oven 9.5L Sealed Burner
10D	316559300 Frigidaire Oven Burner
10B	316438600 Frigidaire Range Sealed Burner, 14K
10A	316438200 Frigidaire Range Sealed Burner, 5K
10	316438400 Frigidaire Range Sealed Burner, 16/17K
11	WCI 316536620
11B	WCI 316536617
11C	316536606 Frigidaire Igniter/Orifice Assembly
11A	WCI 316536611
11D	316536624 Frigidaire Igniter Orifice Assembly
12	316540900 Frigidaire Oven Screw
13	316489101 Frigidaire Suppl Tube-Manifold
14	WCI 316416707
15	316091600 Frigidaire Oven Bracket
16	5304507348 Frigidaire Oven Tube
17	WCI 316404902
18	WCI 316404401
19	5304506545 Frigidaire Gas Oven Range Igniter
20	5304519024 Frigidaire Oven Baffle
21	5303013272 Frigidaire Oven Nut
22	5304507768 Frigidaire Oven Tube
23	WCI 316404305
24	WCI 316409702
25	WCI 316401301
26	BAKE IGNITOR
37	316240600 Frigidaire Igniter Mounting Screw
44A	316527505 Frigidaire Oven Orifice
44	316527507 Frigidaire Oven Orifice
44B	316527512 Frigidaire Oven Orifice
44C	316527501 Frigidaire Oven Orifice
