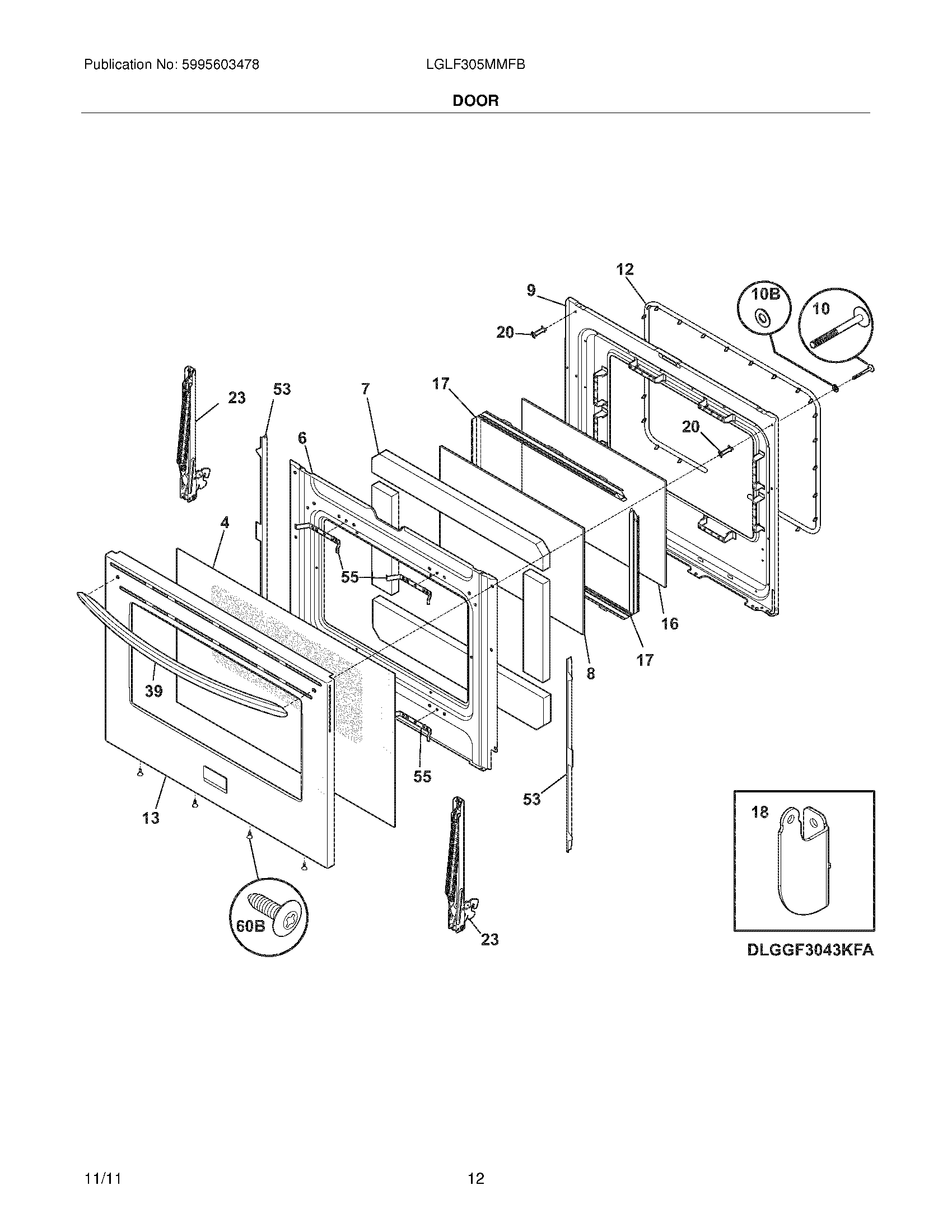

LGLF305MMFB 11 – DOOR

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	316418900 Frigidaire Oven Screw
NI	316433603 Frigidaire Oven Label
4	316452723 Frigidaire Oven Glass
6	316402316 Frigidaire Shield
7	316403900 Frigidaire Insulation
8	5304503232 Frigidaire Oven Inner Door Glass
9	WCI 316423811
10B	316008401 Frigidaire Washer P-1
10	Screw,handle mtg. ,10-24 x 1.75“ ,(2)
12	5304498835 Frigidaire Oven Seal
13	316604011 Frigidaire Panel
16	WCI 316117501
17	5304504811 Frigidaire Glass Spacer
18	WCI 316547900
20	316284100 Frigidaire Oven Spacer Assembly
23	316575906 Frigidaire Oven Hinge
53	5304532043 Frigidaire Door Filler Shield
55	316408300 Frigidaire Oven Bracket
60B	316021109 Frigidaire Oven Screw
