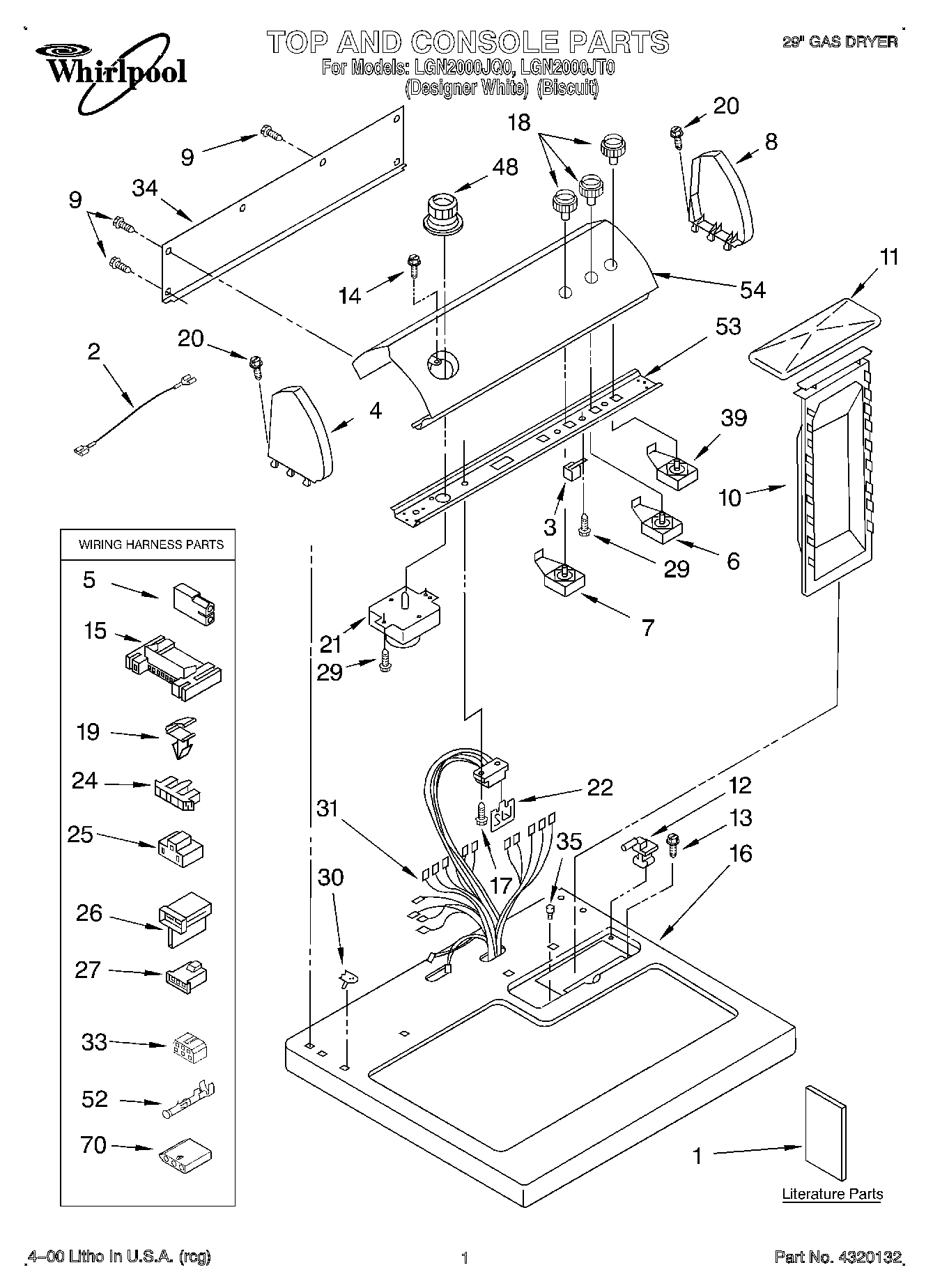

LGN2000JT0 01 – TOP AND CONSOLE, LITERATURE

LGN2000JT0 01 – TOP AND CONSOLE, LITERATURE

Written by

in

LGN2000JT0 01 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
Dryer
1Literature Parts (Use And care Guide)
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Installation Instructions)
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
4W10820038 Whirlpool Endcap
4WPL 8271362
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6WP3405156 Whirlpool Switch
7WP3399639 Whirlpool Switch
8Cap, End (L.H.) (BIscuit)
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
16Top (Biscuit)
17SCREW
183957797 Whirlpool Knob
18WP3957799 Whirlpool Knob
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21Timer, 60 Hz.
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
33Block, Disconnect
34W10103406 Whirlpool Rear Panel
35Bumper, Lint Lid
39WP3398095 Whirlpool Dryer Start Relay
48WP3957754 Whirlpool Knob Assembly
48WP3957755 Whirlpool Knob
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
54WPL 3977848
7072017 Whirlpool Appliance Touch-Up Paint White
70799344 Whirlpool Refrigerator Paint
70PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
704392901 Whirlpool Biscuit Spray Paint
70350938 Whirlpool Spray Gun
703936144 Whirlpool Connector
704392899 Whirlpool Biscuit Touch-Up Paint
70350930 Whirlpool White Spray Paint
