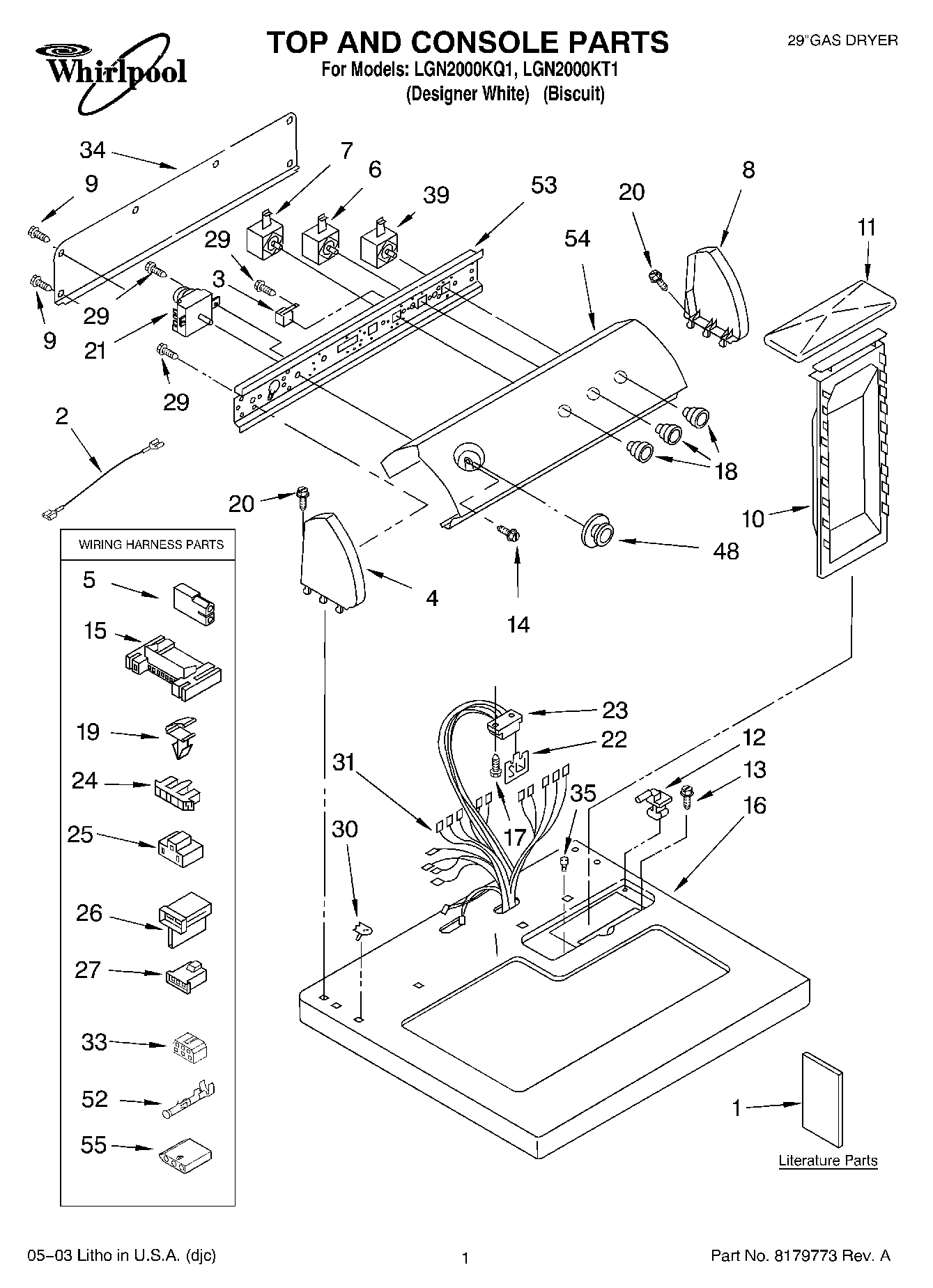

LGN2000KT1 01 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED

LGN2000KT1 01 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED

Written by

in

LGN2000KT1 01 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED

Products

PositionProduct
1Dryer
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
1Literature Parts (Sheet, Cycle Feature)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Use & Care Guide)
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
63405154 Whirlpool Primary Switch
78530169 Whirlpool Switch
8WPL 8271362
8W10820038 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Biscuit)
16Top
17SCREW
183957797 Whirlpool Knob
18WP3957799 Whirlpool Knob
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3406725 Whirlpool Timer
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
233391885 Whirlpool Connector
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
33Block, Disconnect
34W10103406 Whirlpool Rear Panel
35Bumper, Lint Lid
39WP3398095 Whirlpool Dryer Start Relay
48WP3957755 Whirlpool Knob
48WP3957754 Whirlpool Knob Assembly
52WP94614 Whirlpool Terminal
53Bracket, Control
54WPL 3977866
54Panel, Control
55WPL ARI156802A
55350930 Whirlpool White Spray Paint
553406839 Whirlpool Drying Rack
554392065 Whirlpool Dryer Maintenance Kit
55W11224254 Whirlpool Test Kit
5572017 Whirlpool Appliance Touch-Up Paint White
55PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
554392901 Whirlpool Biscuit Spray Paint
554392899 Whirlpool Biscuit Touch-Up Paint
55KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
553936144 Whirlpool Connector
55799344 Whirlpool Refrigerator Paint
55350938 Whirlpool Spray Gun
