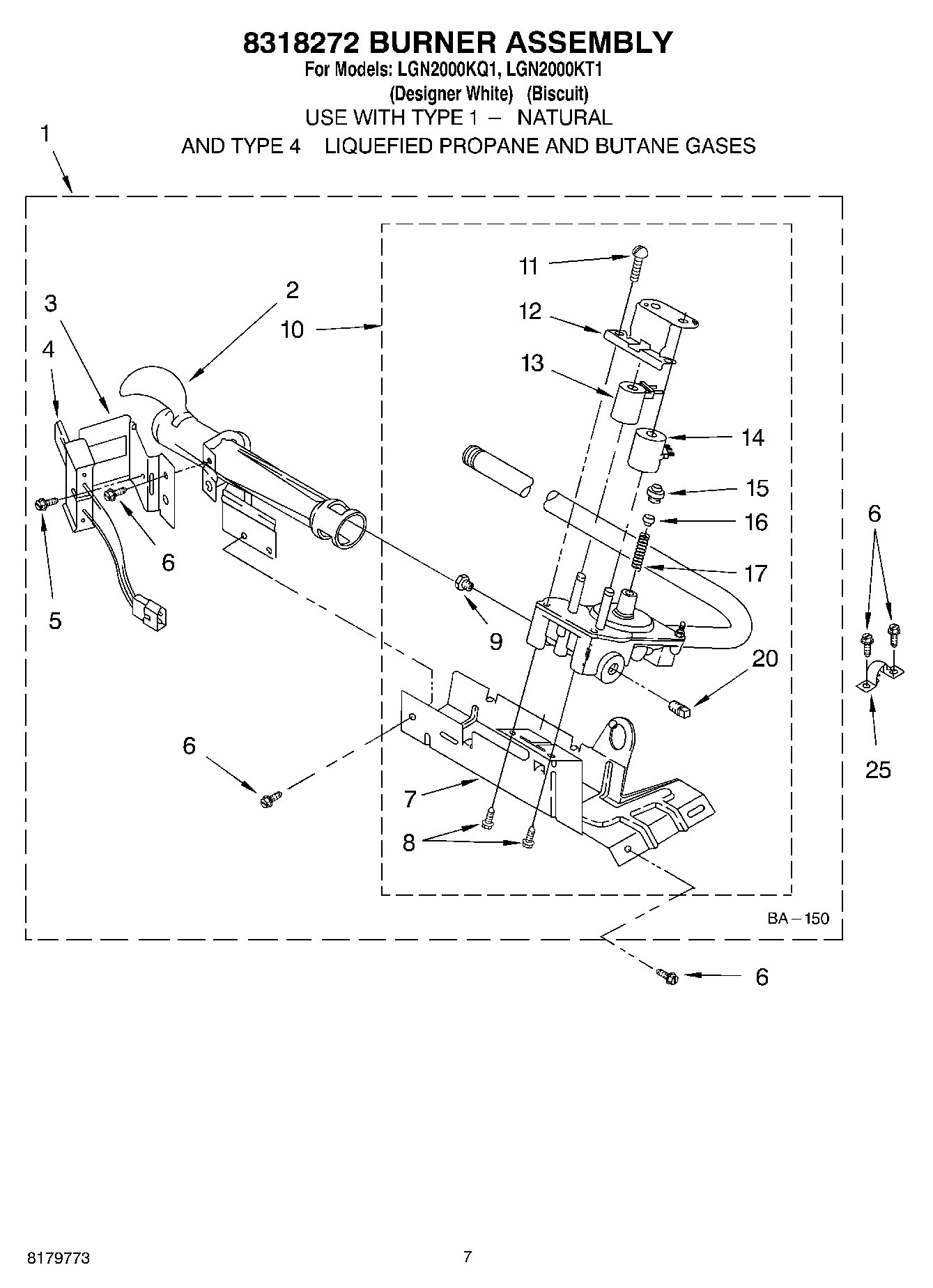

LGN2000KT1 04 – 8318272 BURNER ASSEMBLY

Products

PositionProduct
1W10823508 Whirlpool Gas Burner
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9WP229742 Whirlpool Gas Orifice
9WP234868 Whirlpool Gas Orifice
9WP234826 Whirlpool Gas Orifice
10WP8318277 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
20W10295523 Whirlpool Plug
2549572A Whirlpool Dryer Propane Gas Conversion Kit
25341029 Whirlpool Clamp
25FOLLOWING PARTS NOT ILLUSTRATED
