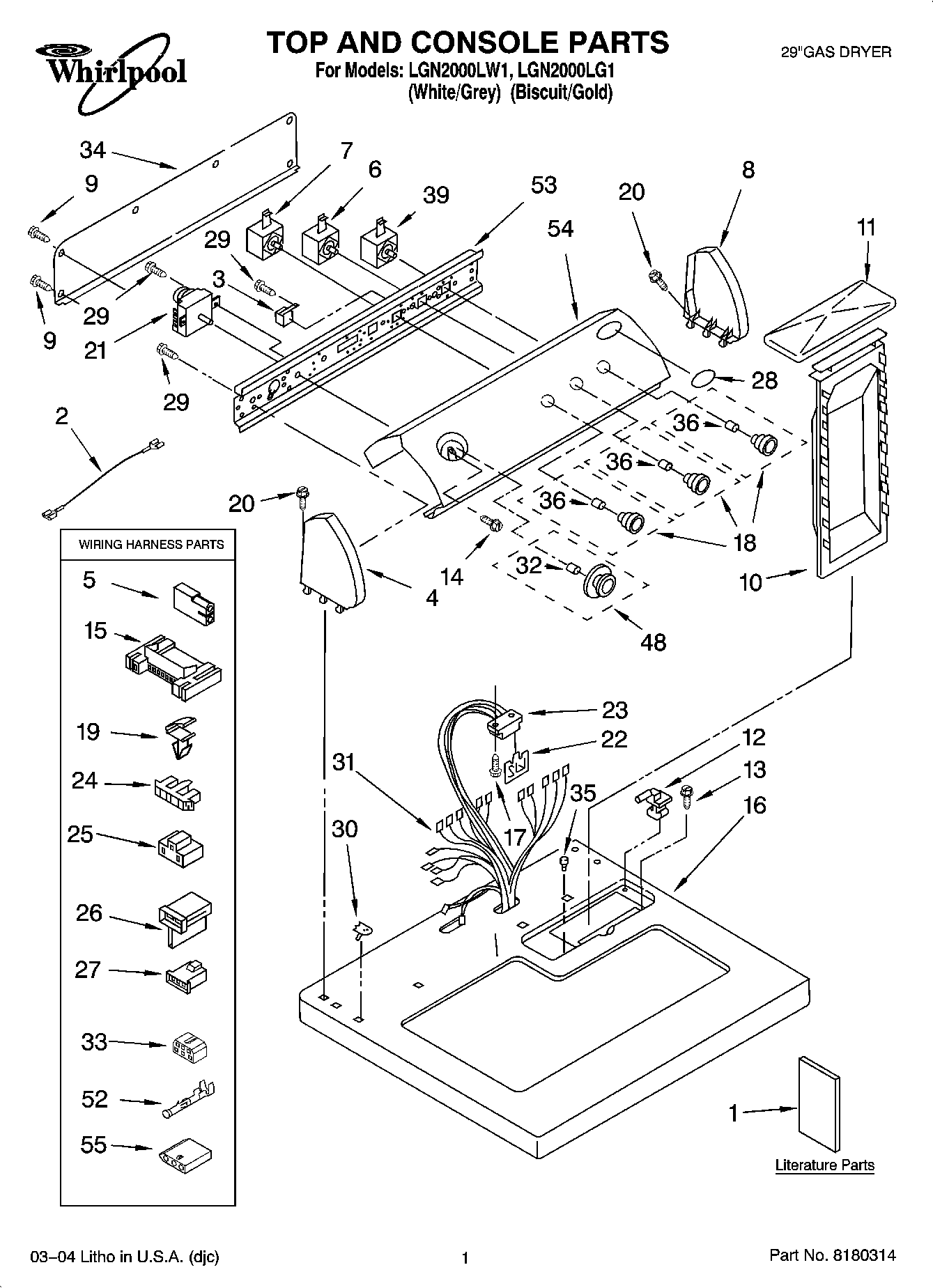

LGN2000LG1 01 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

LGN2000LG1 01 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

Written by

in

LGN2000LG1 01 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
1Dryer
1Literature Parts (Sheet, Cycle Feature (For Model YLEQ5000KW1))
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
63405154 Whirlpool Primary Switch
78530169 Whirlpool Switch
8W10820038 Whirlpool Endcap
8WPL 8271362
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Biscuit)
16Top
17SCREW
18WPL 8538958
18KNOB
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3406725 Whirlpool Timer
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
233391885 Whirlpool Connector
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
28Medallion
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32WP688805 Whirlpool Spring Clip
33Block, Disconnect
34W10103406 Whirlpool Rear Panel
35Bumper, Lint Lid
36WP8536939 Whirlpool Spring Clip
39WP3398095 Whirlpool Dryer Start Relay
48WP8557455 Whirlpool Knob Timer
48Timer Knob Assembly (Biscuit)
52WP94614 Whirlpool Terminal
53Bracket, Control
54WPL 8532620
54Panel, Control (Includes Illus. 23)
55WPL ARI156805A
55350938 Whirlpool Spray Gun
554392901 Whirlpool Biscuit Spray Paint
55350930 Whirlpool White Spray Paint
554392899 Whirlpool Biscuit Touch-Up Paint
55PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
5572017 Whirlpool Appliance Touch-Up Paint White
55W11224254 Whirlpool Test Kit
554392065 Whirlpool Dryer Maintenance Kit
553406839 Whirlpool Drying Rack
55KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
55799344 Whirlpool Refrigerator Paint
553936144 Whirlpool Connector
