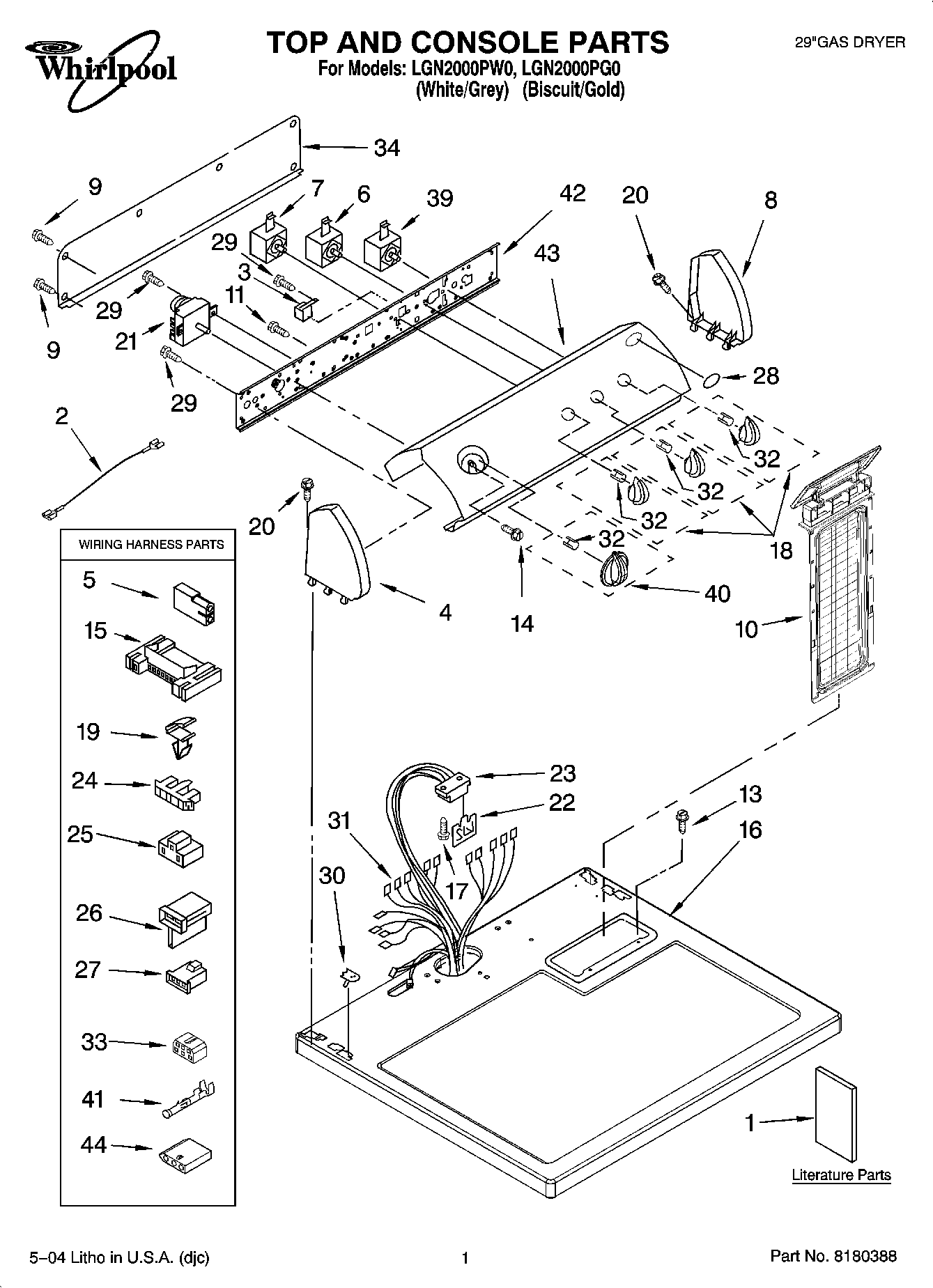

LGN2000PG0 01 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

LGN2000PG0 01 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

Written by

in

LGN2000PG0 01 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
1	Dryer
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Sheet, Cycle Feature)
2	Wire, Jumper (Black)
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.) (BIscuit)
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	3405154 Whirlpool Primary Switch
7	8530169 Whirlpool Switch
8	WPL 8271362
8	W10820038 Whirlpool Endcap
9	WP693995 Whirlpool Screw
10	Screen, Lint (Biscuit)
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP90767 Whirlpool Screw
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
16	Top
17	W11693756 Whirlpool Screw Assembly
18	WPL 8544937
18	WPL 8544938
19	WP3394427 Whirlpool Clip
20	WP388326 Whirlpool Screw
21	WP3406725 Whirlpool Timer
22	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
23	3391885 Whirlpool Connector
24	Connector, Timer
25	3401144 Whirlpool Connector
26	WP3403499 Whirlpool Connector
27	WP3403498 Whirlpool Connector
28	WPL 3400985
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WP8536939 Whirlpool Spring Clip
33	Block, Disconnect
34	W10103406 Whirlpool Rear Panel
39	WP3398095 Whirlpool Dryer Start Relay
40	WPL 8544958
40	WPL 8544957
41	WP94614 Whirlpool Terminal
42	Bracket, Control
43	Pan
43	Panel, Control (Includes Illus. 23)
44	KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
44	350938 Whirlpool Spray Gun
44	72017 Whirlpool Appliance Touch-Up Paint White
44	799344 Whirlpool Refrigerator Paint
44	350930 Whirlpool White Spray Paint
44	4392899 Whirlpool Biscuit Touch-Up Paint
44	4392901 Whirlpool Biscuit Spray Paint
44	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
44	3406839 Whirlpool Drying Rack
44	W11224254 Whirlpool Test Kit
44	4392065 Whirlpool Dryer Maintenance Kit
44	3936144 Whirlpool Connector
44	WPL ARI156811A
