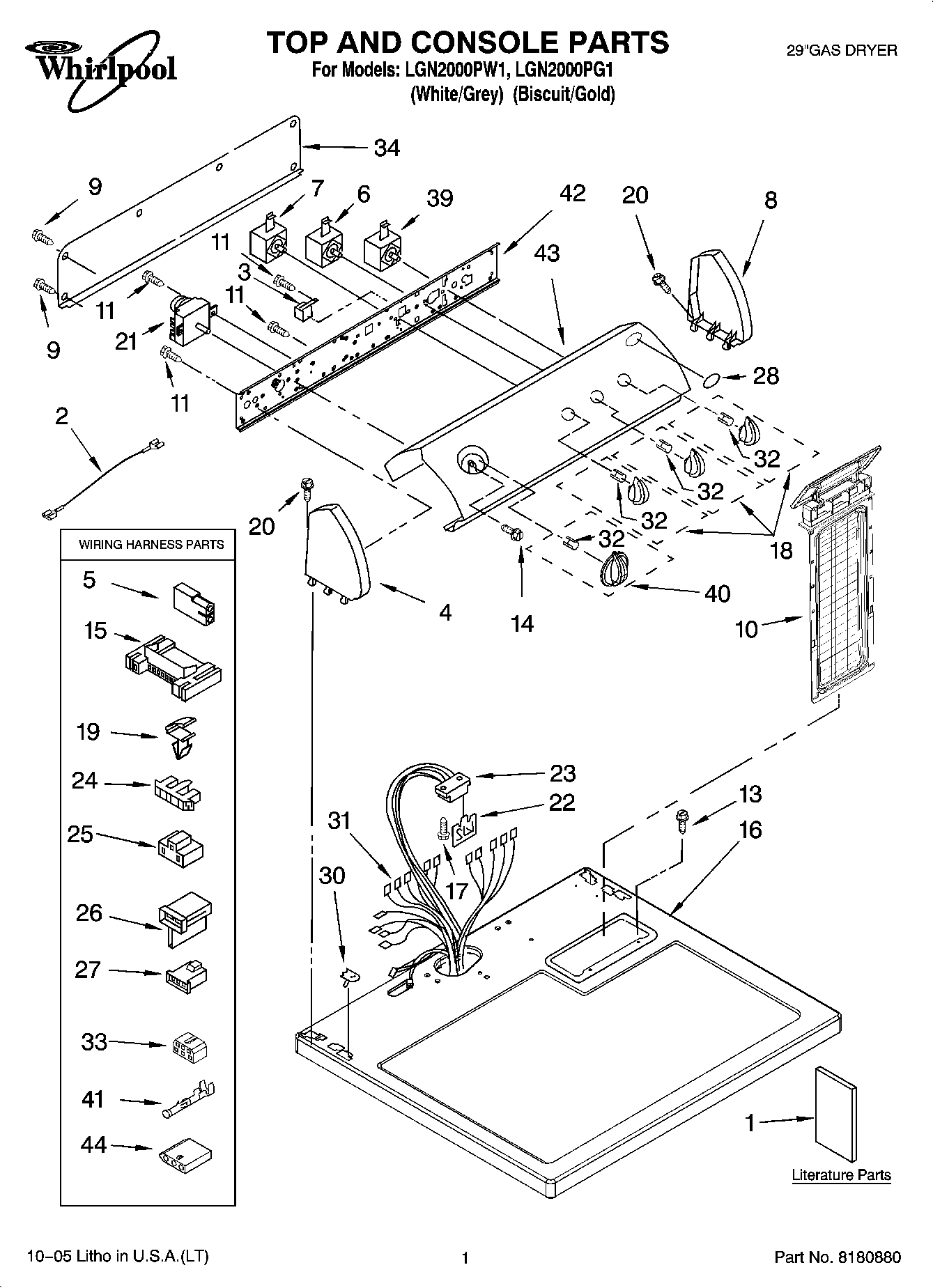

LGN2000PW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Sheet, Cycle Feature
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Wiring Diagram
1	Instructions, Installation
1	Use & Care Guide
1	WPL 677818
2	Wire, Jumper (Black)
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.) (BIscuit)
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	3405154 Whirlpool Primary Switch
7	8530169 Whirlpool Switch
8	W10820038 Whirlpool Endcap
8	WPL 8271362
9	WP693995 Whirlpool Screw
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
10	Screen, Lint (Biscuit)
11	WP90767 Whirlpool Screw
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
16	Top
17	W11693756 Whirlpool Screw Assembly
18	WPL 8544938
18	WPL 8544937
19	WP3394427 Whirlpool Clip
20	WP388326 Whirlpool Screw
21	WP3406725 Whirlpool Timer
22	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
23	3391885 Whirlpool Connector
24	Connector, Timer
25	3401144 Whirlpool Connector
26	WP3403499 Whirlpool Connector
27	WP3403498 Whirlpool Connector
28	WPL 3400985
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WP8536939 Whirlpool Spring Clip
33	Block, Disconnect
34	W10103406 Whirlpool Rear Panel
39	WP3398095 Whirlpool Dryer Start Relay
40	WPL 8544957
40	WPL 8544958
41	WP94614 Whirlpool Terminal
42	Bracket, Control
43	Panel, Control (Includes Illus. 23)
43	Pan
44	3936144 Whirlpool Connector
