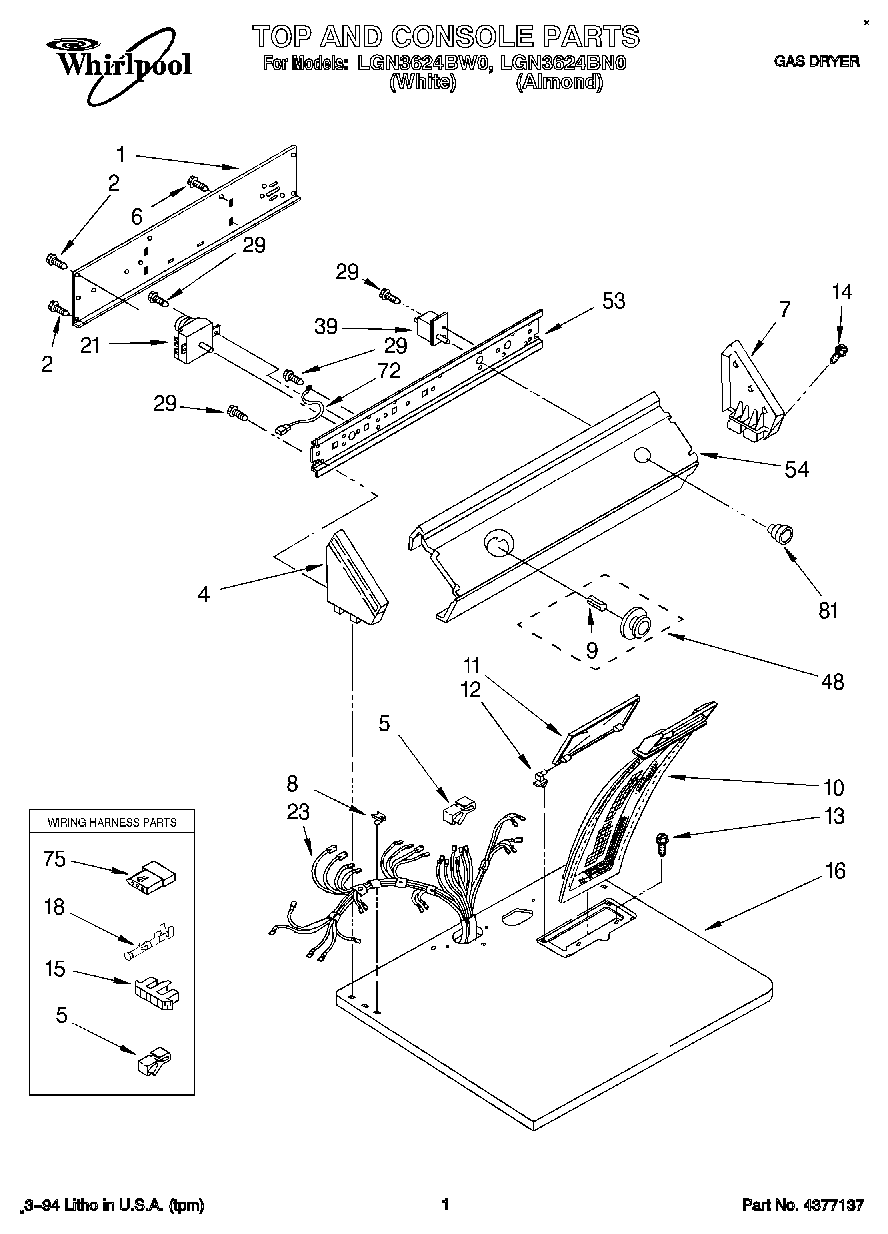

LGN3624BN0 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGN3624BN0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGN3624BN0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
Dryer
Label, Wiring Diagram
Guide, Use & Care
Instructions, Installation
Almond (Uncut)
Leveler (Thinner)
799344 Whirlpool Refrigerator Paint
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
WP72107 Whirlpool Touchup
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
4Cap, End (L.H.) (Black/Chrome)
5Clip, Retainer
6WP693995 Whirlpool Screw
7WPL 3358518
8WP357213 Whirlpool Hinge Stopper
9WP688805 Whirlpool Spring Clip
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15Connector, Timer
16Top (White)
16Top (Almond)
18WP94614 Whirlpool Terminal
21WP3976568 Whirlpool Timer
23Harness, Wiring
29WPW10139210 Whirlpool Screw
39(Alt.)
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
81Knob, Push To Start
