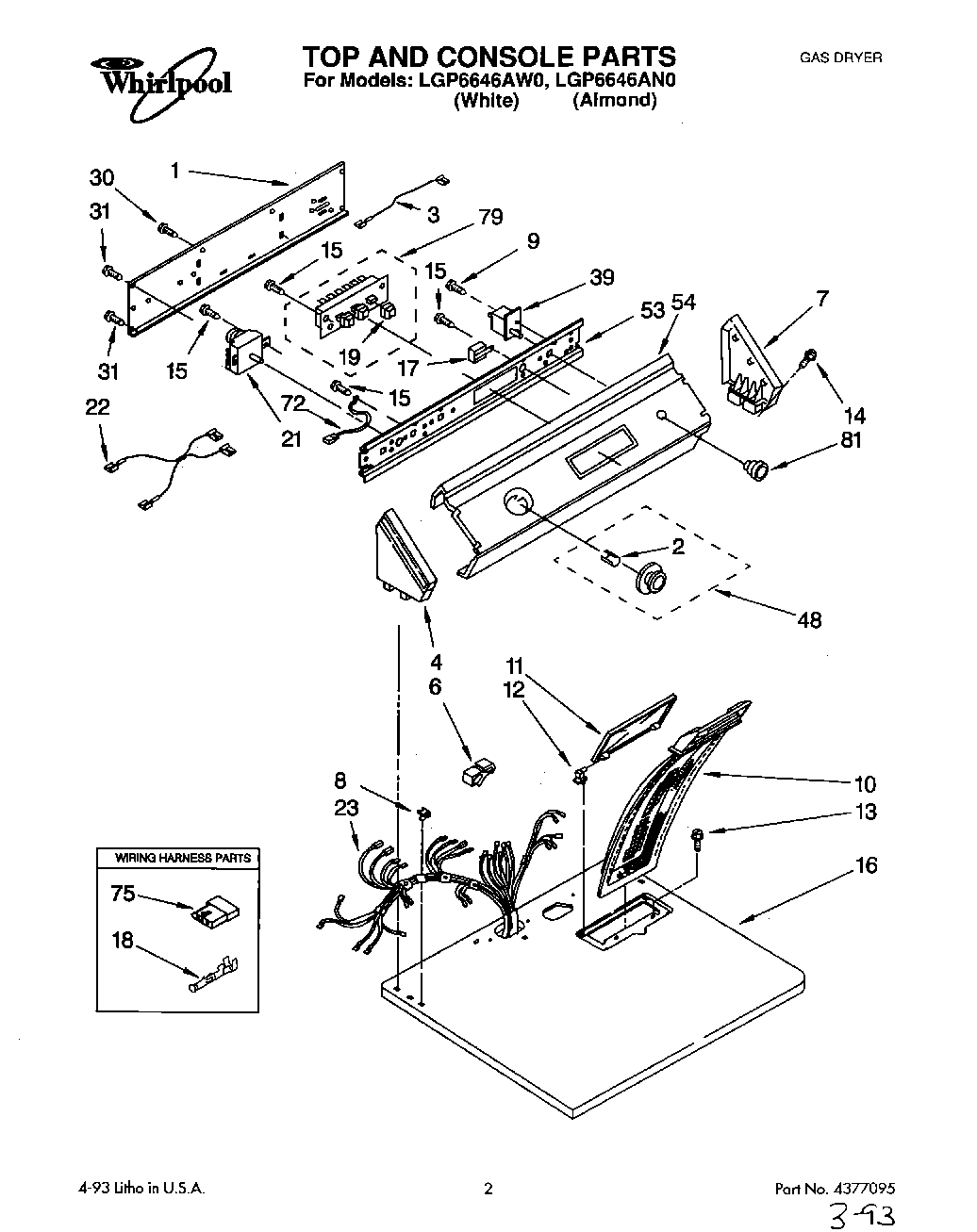

LGP6646AN0 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGP6646AN0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGP6646AN0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Guide, Use & Care
Dryer
Almond (Uncut)
Instructions, Installation
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
WPL LIT4377095
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
1Panel, Rear Console
2WP688805 Whirlpool Spring Clip
3Wire, Jumper (Blue)
3Wire, Jumper (Violet)
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (White)
6Clip, Retainer
7Cap, End (R.H.) (Almond)
7Cap, End (R.H.) (White)
8WP357213 Whirlpool Hinge Stopper
9WP488729 Whirlpool Refrigerator Door Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15WPW10139210 Whirlpool Screw
16Top (Almond)
16Top (White)
17WP694419 Whirlpool Buzzer Adjuster
18WP94614 Whirlpool Terminal
19PushButton
21WP3396047 Whirlpool Timer
22Wire Jumper Assembly
23Harness, Wiring
30WP693995 Whirlpool Screw
31WP489069 Whirlpool Compactor Screw
39Relay, Push-To-Start
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
79Switch, 3-Position Temperature
81Knob, Push To Start
