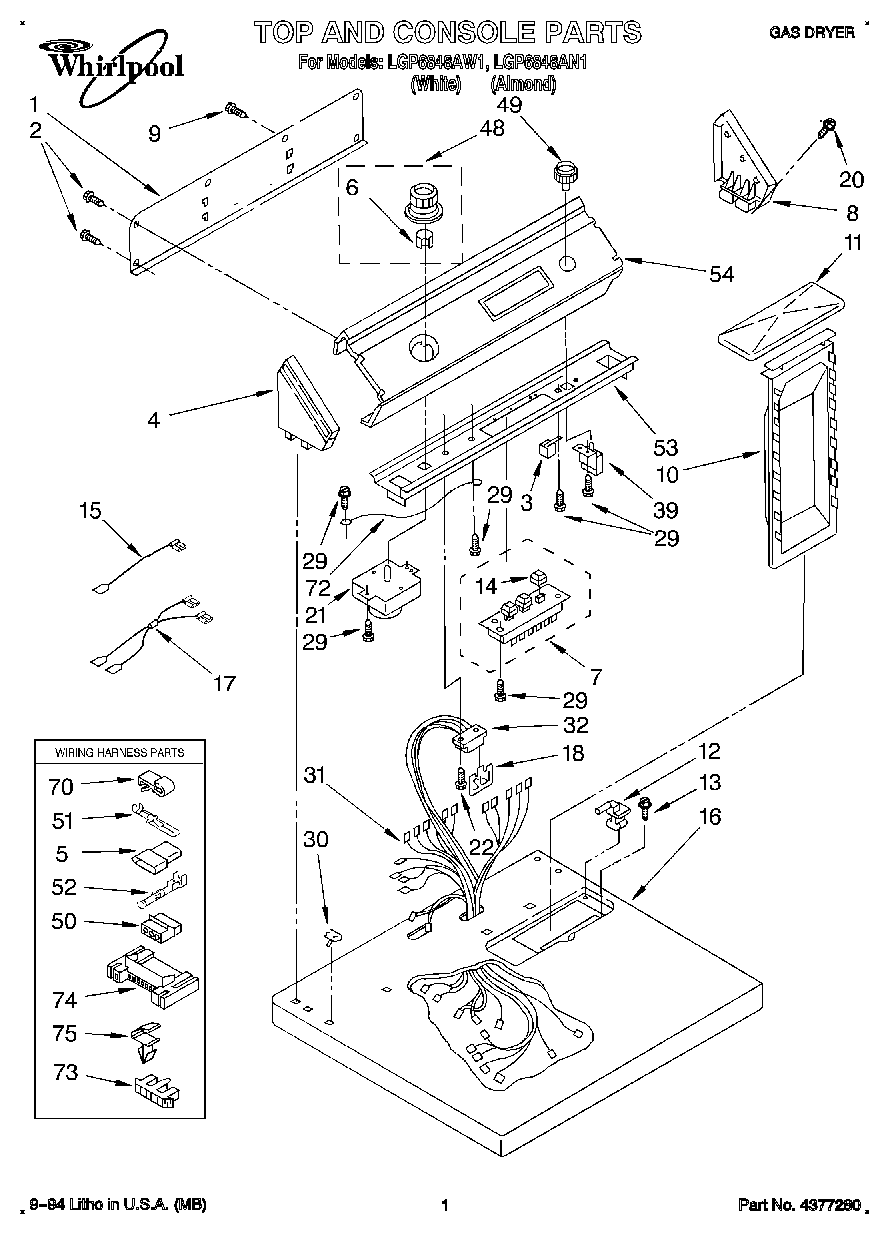

LGP6848AN1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Use & Care
	Instructions, Installation
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	WPL LIT4377280
	Dryer
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
5	353424 Whirlpool Connector
6	WP688805 Whirlpool Spring Clip
7	Switch, 3-Position Temperature
8	Cap, End (R.H.) (Almond)
8	Cap, End (R.H.) (White)
9	WP693995 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	PushButton
15	Wire, Jumper (Blue)
15	Wire, Jumper (Violet)
16	Top (Almond)
16	Top (White)
17	Wire Jumper Assembly
18	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
20	WP388326 Whirlpool Screw
21	WP3397273 Whirlpool Timer
22	SCREW
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	3391885 Whirlpool Connector
39	Relay, Push-To-Start
48	WP3957752 Whirlpool Knob
49	Knob, Push To Start
50	Receptacle, 3-Way Terminal (Use W/94614)
51	WP596797 Whirlpool Terminal
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
70	Clip, Retainer
72	Wire, Ground
73	Connector, Timer
74	3395683 Whirlpool Connector
75	WP3394427 Whirlpool Clip
