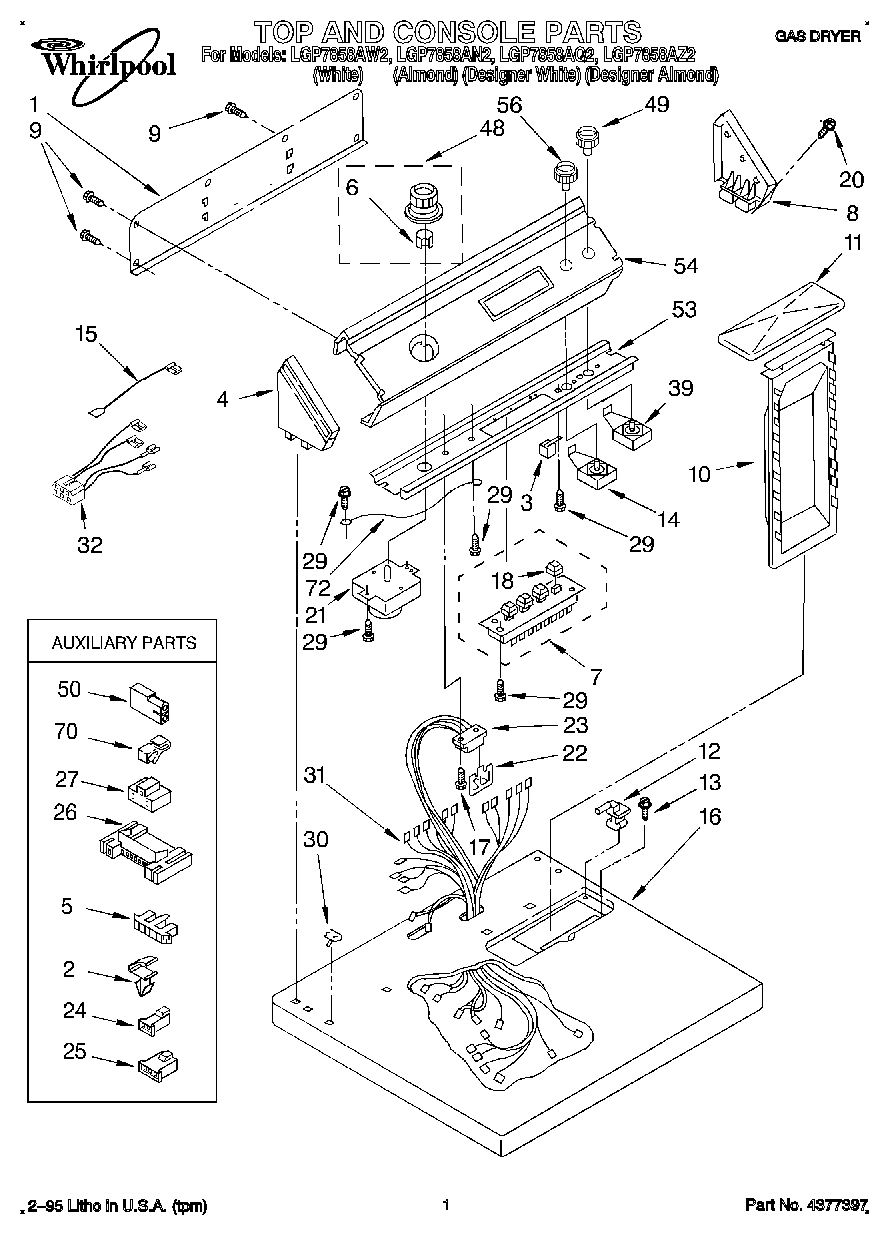

LGP7858AN2 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGP7858AN2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGP7858AN2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Almond (Uncut)
WPL LIT3401725
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Dryer
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
Guide, Use & Care
Instructions, Installation
1Panel, Rear Console
2WP3394427 Whirlpool Clip
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
5Connector, Timer
6WP688805 Whirlpool Spring Clip
7Switch, 4-Position Temperature
7FOR MODEL LGP7858AQ2
7FOR MODEL LGP7858AZ2
8Cap, End (R.H.) (White)
8Cap, End (R.H.) (Almond)
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Switch, Finish Guard
15Wire, Jumper (Blue)
15Wire, Jumper (Violet)
16Top (White)
16Top (Almond)
17SCREW
18FOR MODEL LGP7858AQ2
18PushButton
18FOR MODEL LGP7858AZ2
20WP388326 Whirlpool Screw
21WP3397273 Whirlpool Timer
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
233391885 Whirlpool Connector
24Connector, 2-Position (Gas Valve)
25Connector, 3-Position (Gas Valve)
263395683 Whirlpool Connector
273401144 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Gas
32Wire, Jumper (Guard/Signal)
39WP3398094 Whirlpool Push To Start Switch
483957753 Whirlpool Knob
48WP3957752 Whirlpool Knob
49WP3957800 Whirlpool Knob
49Knob, Push To Start
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
53Bracket, Control
54WPL 3398526
54WPL 3398525
54Panel
54Panel, Control FOR MODEL (LGP7858AW2)
56KNOB
56WP3957796 Whirlpool Knob
563957797 Whirlpool Knob
70Clip, Retainer
72Wire, Ground
