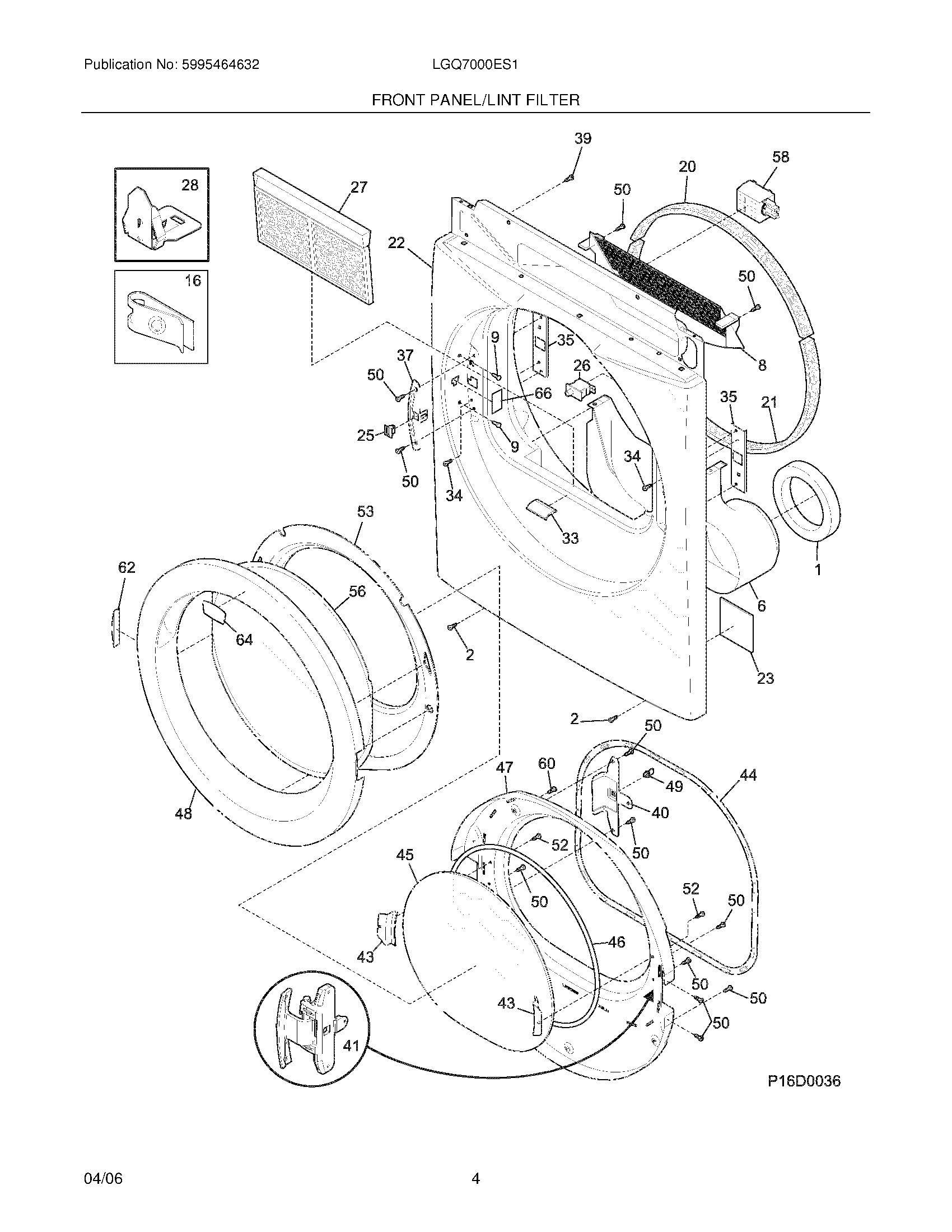

LGQ7000ES1 05 – FRONT PANEL/LINT FILTER

Products

Position	Product
NI	5308027429 Frigidaire Dryer High Temperature Adhesive
NI	WCI 134554500
NI	131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
1	134417000 Frigidaire Seal
2	131168200 Frigidaire Dryer Screw
6	WCI 134382900
8	WCI 131845802
9	131633200 Frigidaire Plug
16	WCI 134440100
20	134440200 Frigidaire Seal Felt Drum
21	5303937183 Frigidaire Dryer Lower Front Felt Seal
22	WCI 134733510
23	WCI 131744202
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	134813601 Frigidaire Dryer Door Switch 3-Wire
27	131450300 Frigidaire Dryer Lint Screen Filter
28	WCI 134440000
33	WCI 134737200
35	WCI 134559200
37	WCI 134559410
39	131205100 Frigidaire Screw
40	WCI 134559540
41	137105100 Frigidaire Dryer Hinge Door
43	WCI 134559300
44	137553402 Frigidaire Gasket
45	WCI 134611800
46	134580300 Frigidaire Gasket
47	137554621 Frigidaire Panel
48	WCI 134558410
49	5303207102 Frigidaire Door Strike
50	131302800 Frigidaire Drum Vane Screw
52	131243700 Frigidaire Screw
56	137577700 Frigidaire Glass
60	134430300 Frigidaire Screw
62	WCI 134559610
64	WCI 134601600
66	137577200 Frigidaire T Plug
