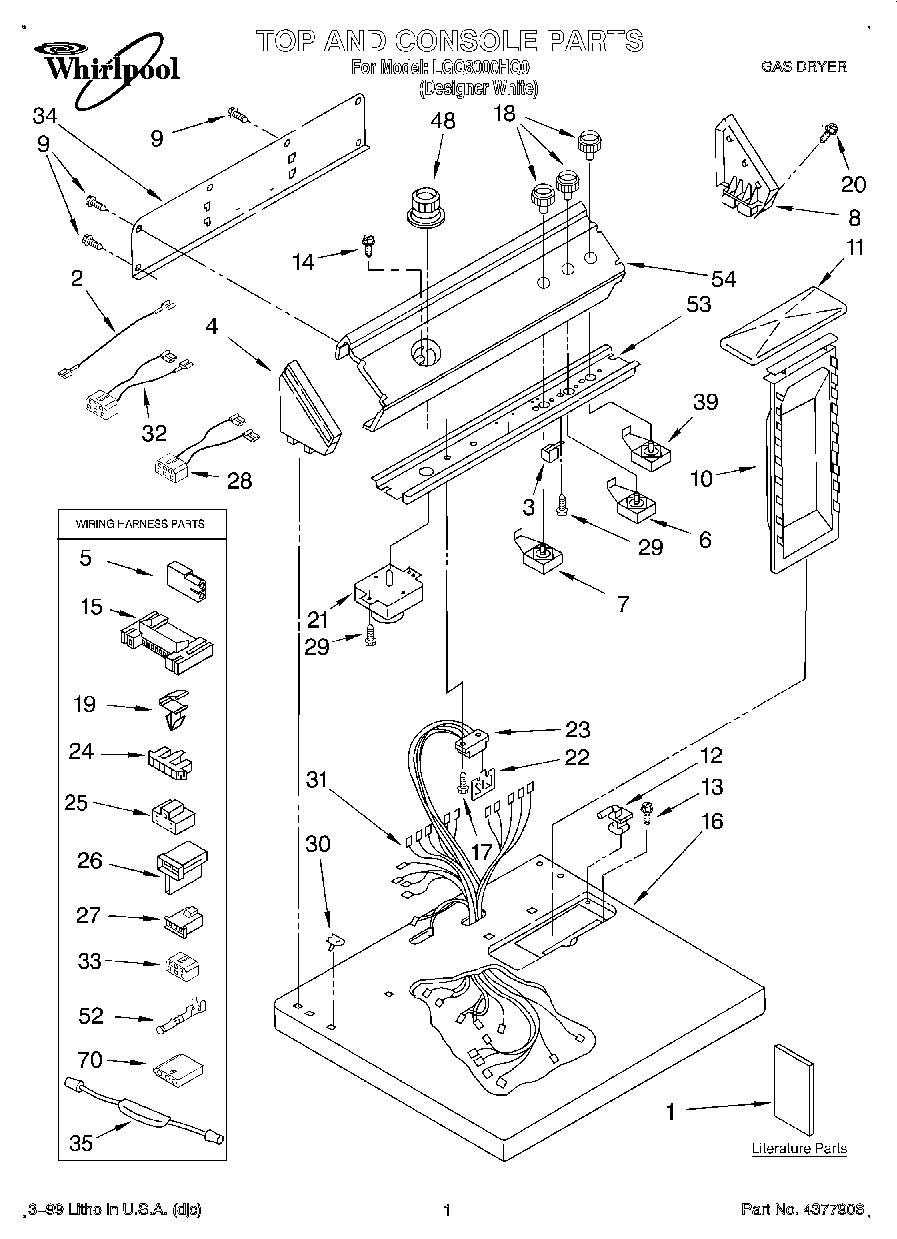

LGQ8000HQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGQ8000HQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGQ8000HQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
Dryer
1Literature Parts (Use & Care Guide)
1Literature Parts (Label, Wiring Diagram)
1Instructions, Installation
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6WP3405156 Whirlpool Switch
7W10168169 Whirlpool Switch
8Cap, End (R.H.)
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (White)
17SCREW
18WP3957796 Whirlpool Knob
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21Timer Assembly (60 Hz.)
22Control, Electronic
233391885 Whirlpool Connector
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
28Wire, Jumper (Temperature)
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
323397695 Whirlpool Wire Harness
33Block, Disconnect
34Panel, Rear Console
35Resistor Assembly
39WP3398095 Whirlpool Dryer Start Relay
48WP3957752 Whirlpool Knob
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
70350956 Whirlpool Spray Assembly
70350938 Whirlpool Spray Gun
7072017 Whirlpool Appliance Touch-Up Paint White
70799344 Whirlpool Refrigerator Paint
703936144 Whirlpool Connector
70Almond (Uncut)
70350930 Whirlpool White Spray Paint
70WP72107 Whirlpool Touchup
