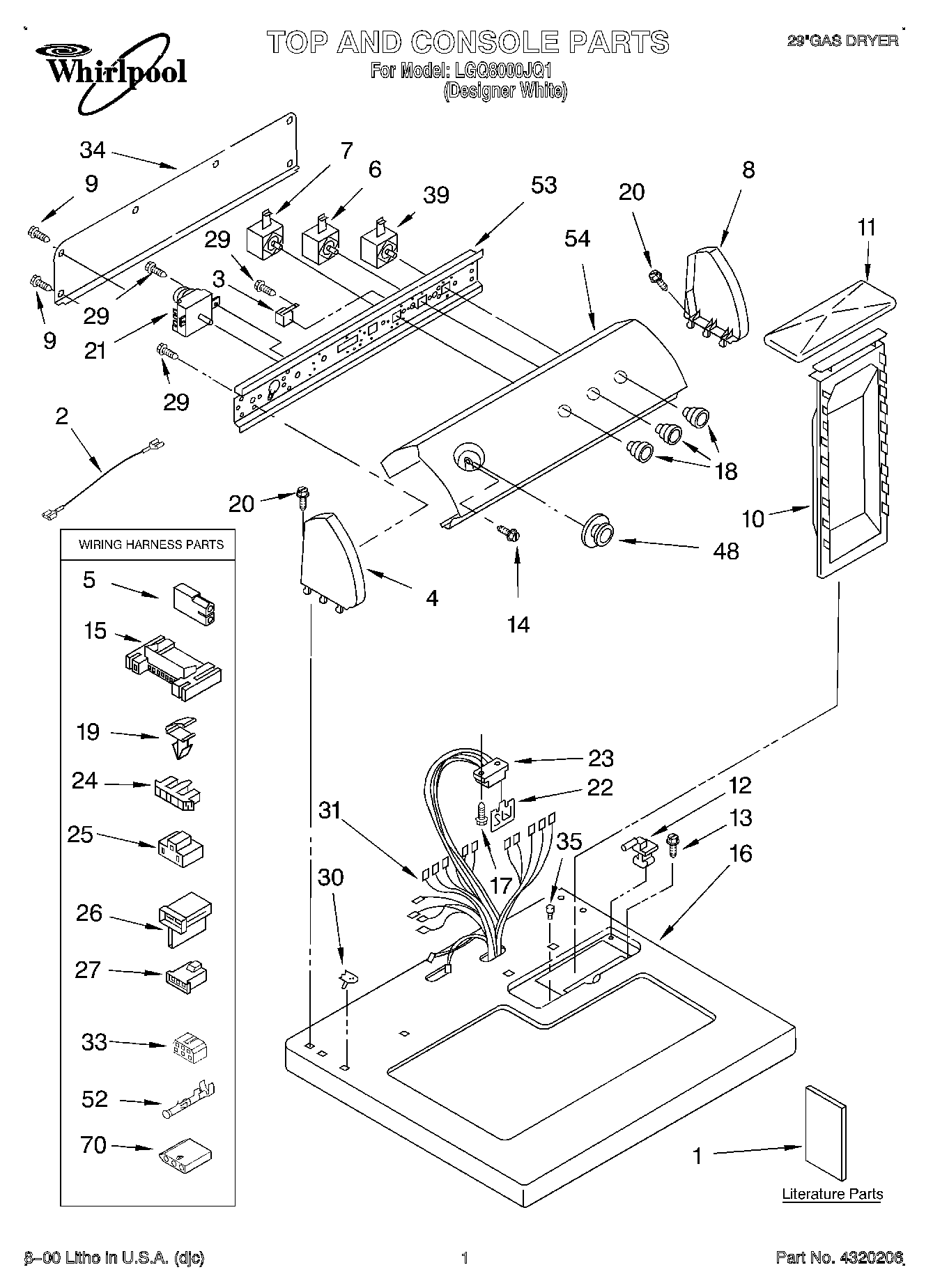

LGQ8000JQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGQ8000JQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGQ8000JQ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
Dryer
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Literature Parts (Label, Wiring Diagram)
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
63405154 Whirlpool Primary Switch
7Switch, Temperature
8W10820038 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17SCREW
18WP3957799 Whirlpool Knob
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3406725 Whirlpool Timer
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
233391885 Whirlpool Connector
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
33Block, Disconnect
34W10103406 Whirlpool Rear Panel
35Bumper, Lint Lid
39WP3398095 Whirlpool Dryer Start Relay
48WP3957754 Whirlpool Knob Assembly
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control
70799344 Whirlpool Refrigerator Paint
703936144 Whirlpool Connector
7072017 Whirlpool Appliance Touch-Up Paint White
70350930 Whirlpool White Spray Paint
70350938 Whirlpool Spray Gun
