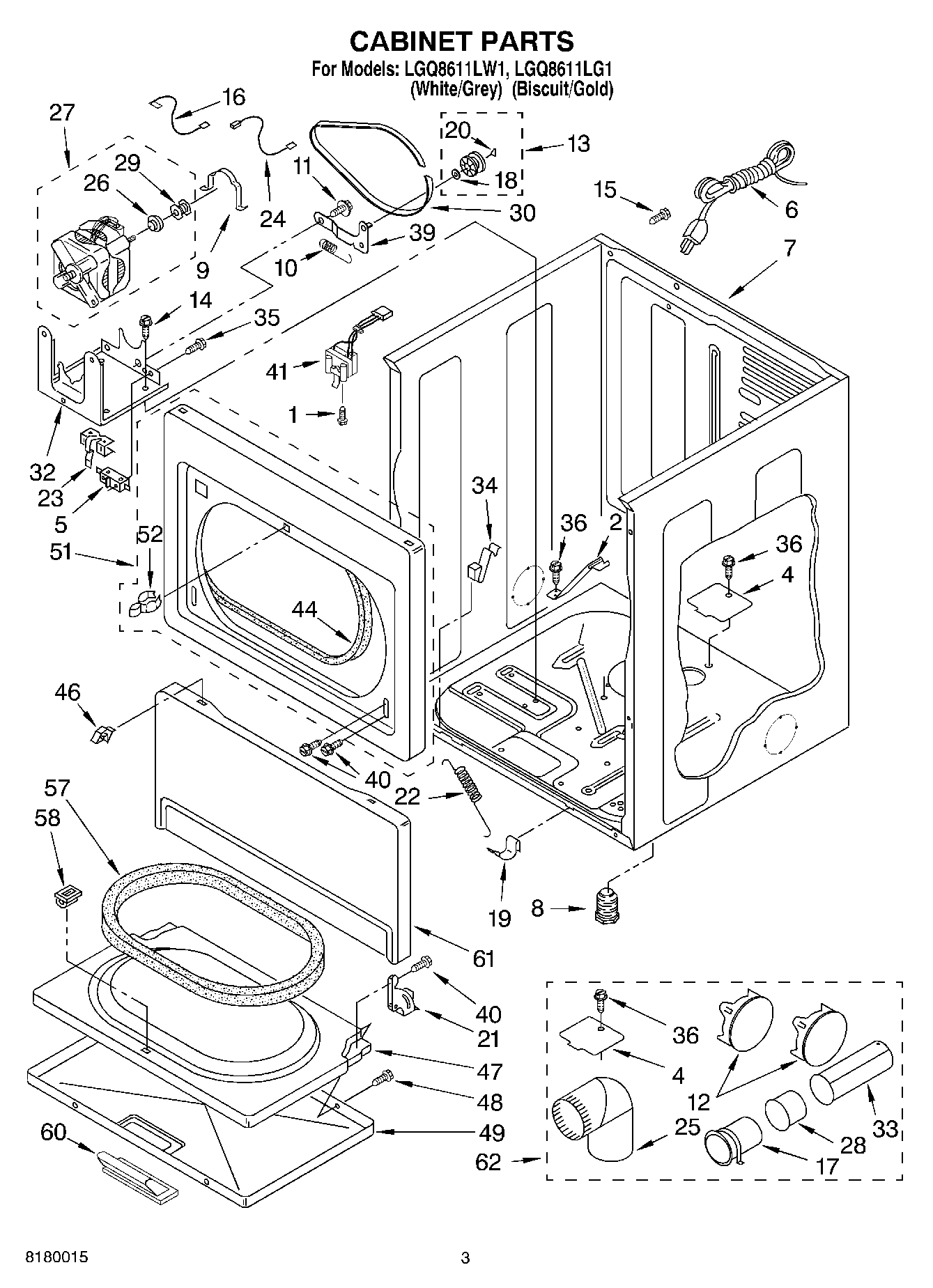

LGQ8611LG1 02 – CABINET PARTS

LGQ8611LG1 02 – CABINET PARTS

Products

PositionProduct
1WP3395530 Whirlpool Screw
2W10181903 Whirlpool Bracket
4WPW10354249 Whirlpool Cover
5279782 Whirlpool Lid Switch
6W11222083 Whirlpool Power Cord
7Cabinet (Biscuit)
7W11417441 Whirlpool Cabinet
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
14SCREW
15W10850756 Whirlpool Screw
163398948 Whirlpool Wire
17WP8563747 Whirlpool Exhaust Pipe
18WPW10121334 Whirlpool Washer
19WP297092 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WP3387560 Whirlpool Door Hinge
21WP3387559 Whirlpool Door Hinge
22WP3387565 Whirlpool Door Spring
23WP8066120 Whirlpool Lever Assembly
24Wire, Belt Switch
25WPW10416072 Whirlpool Elbow
26WP3393657 Whirlpool Belt Retainer
27279787 Whirlpool Dryer Drive Motor
28WPW10331278 Whirlpool Exhaust Pipe
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
32WP3387118 Whirlpool Base Assembly
33WP8563749 Whirlpool Exhaust Pipe
34Clip, Lint Duct
35WP98129 Whirlpool Screw
36WP693995 Whirlpool Screw
39W10837240 Whirlpool Dryer Idler Pulley
40WP308685 Whirlpool Microwave Screw
41WP3406107 Whirlpool Dryer Door Switch
44WP3387242 Whirlpool Seal
46WP3388229 Whirlpool Dryer Spring Clip
47Door, Rear
48WP694091 Whirlpool Screw
49Door, Front (Biscuit)
49Door, Front
51Upper Front Panel (Biscuit)
51PANEL, FRONT (WHITE)
57W10823582 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
603977242 Whirlpool Handle
60WP348721 Whirlpool Handle
61WPL 3977764
61WP3406797 Whirlpool Toe Panel
62W10470674 Whirlpool Dryer Side Vent Exhaust Kit
624392067 Whirlpool Dryer Repair Kit
62KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
62W11224254 Whirlpool Test Kit
62350930 Whirlpool White Spray Paint
62799344 Whirlpool Refrigerator Paint
62PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
624392901 Whirlpool Biscuit Spray Paint
62350938 Whirlpool Spray Gun
6272017 Whirlpool Appliance Touch-Up Paint White
624392899 Whirlpool Biscuit Touch-Up Paint
628212450A Whirlpool Dryer Rack Assembly
62WPL ARI156831A
