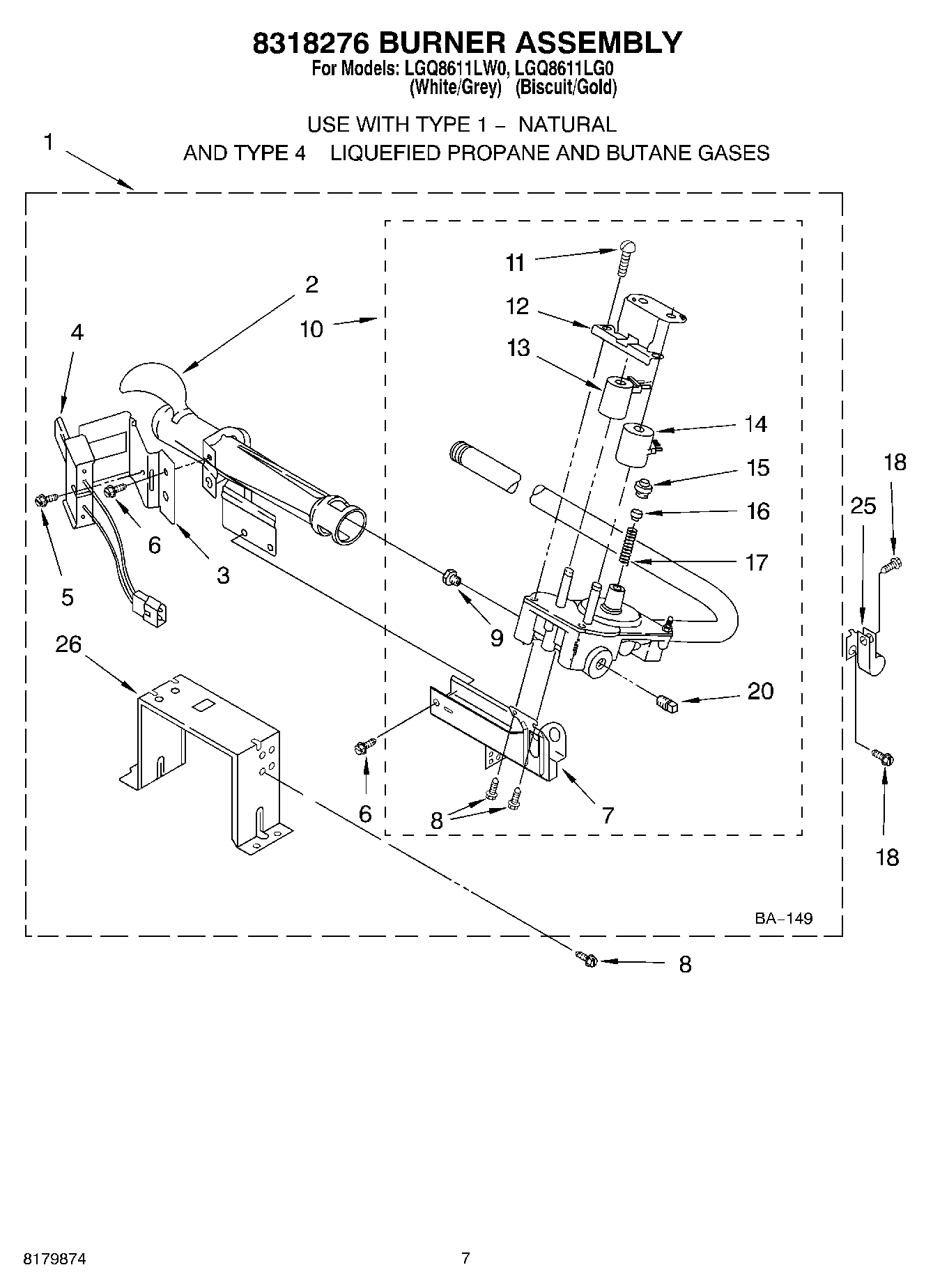

LGQ8611LW0 04 – 8318276 BURNER

LGQ8611LW0 04 – 8318276 BURNER

Products

PositionProduct
1280119 Whirlpool Gas Burner
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9WP229742 Whirlpool Gas Orifice
9WP234868 Whirlpool Gas Orifice
9WP234826 Whirlpool Gas Orifice
10WP8318281 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
18WP488729 Whirlpool Refrigerator Door Screw
20W10295523 Whirlpool Plug
253387561 Whirlpool Clamp
2649572A Whirlpool Dryer Propane Gas Conversion Kit
26Bracket, Support
