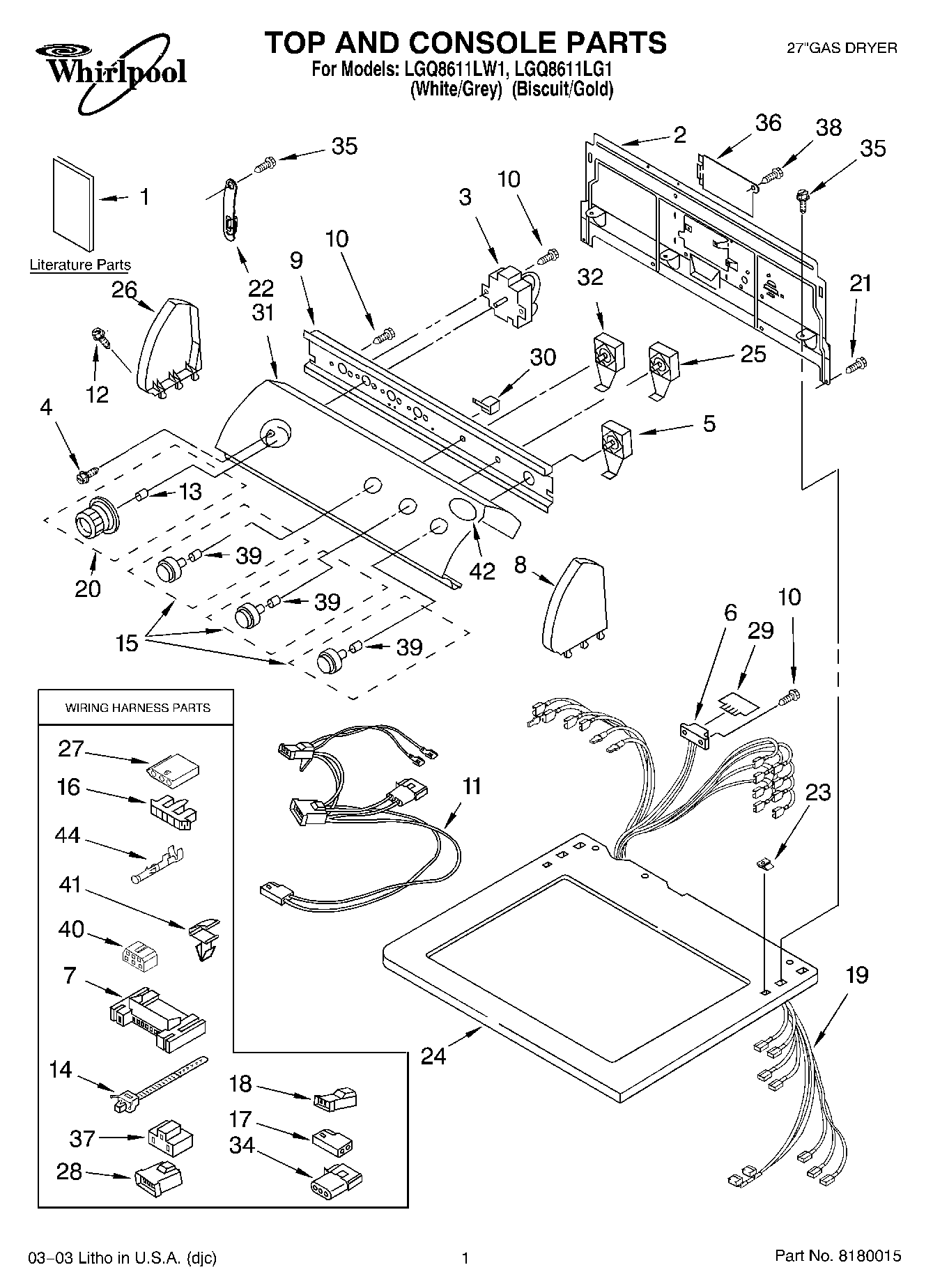

LGQ8611LW1 01 – TOP AND CONSOLE PARTS

LGQ8611LW1 01 – TOP AND CONSOLE PARTS

Written by

in

LGQ8611LW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Use & Care Guide)
1Dryer
1Literature Parts (Wiring Diagram)
1Literature Parts (Instructions, Installation)
2285909 Whirlpool Rear Panel
3WP3406725 Whirlpool Timer
43400859 Whirlpool Screw
5WP3398095 Whirlpool Dryer Start Relay
63391885 Whirlpool Connector
73395683 Whirlpool Connector
8WPL 8271362
8W10820038 Whirlpool Endcap
9Bracket, Control
10WPW10139210 Whirlpool Screw
11WP3401850 Whirlpool Wire Harness
12WP388326 Whirlpool Screw
13WP688805 Whirlpool Spring Clip
14WP3391018 Whirlpool Wire Tie
15KNOB
15WPL 8538958
16Connector, Timer
17Receptacle, Latching (2-Way) (Uses Terminal 94614)
18WP3403499 Whirlpool Connector
19Harness, Wiring
20WP8557455 Whirlpool Knob Timer
20Timer Knob Assembly (Biscuit)
21WP693995 Whirlpool Screw
22WP8568314 Whirlpool Strap
23WP357213 Whirlpool Hinge Stopper
24Top
24Top (Biscuit)
25WP3405156 Whirlpool Switch
26Cap, End (L.H.) (BIscuit)
273936144 Whirlpool Connector
28WP3403498 Whirlpool Connector
29WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
30WP694419 Whirlpool Buzzer Adjuster
31Panel, Control (Includes Illus. 42) (Gold)
31Panel, Control (Includes Illus. 42) (Grey)
328530169 Whirlpool Switch
34Plug, 3-Way
35WP488729 Whirlpool Refrigerator Door Screw
36W10819767 Whirlpool Cover
373401144 Whirlpool Connector
38WP90767 Whirlpool Screw
39WP8536939 Whirlpool Spring Clip
40Block, Disconnect
41WP3394427 Whirlpool Clip
42Medallion
44WP94614 Whirlpool Terminal
