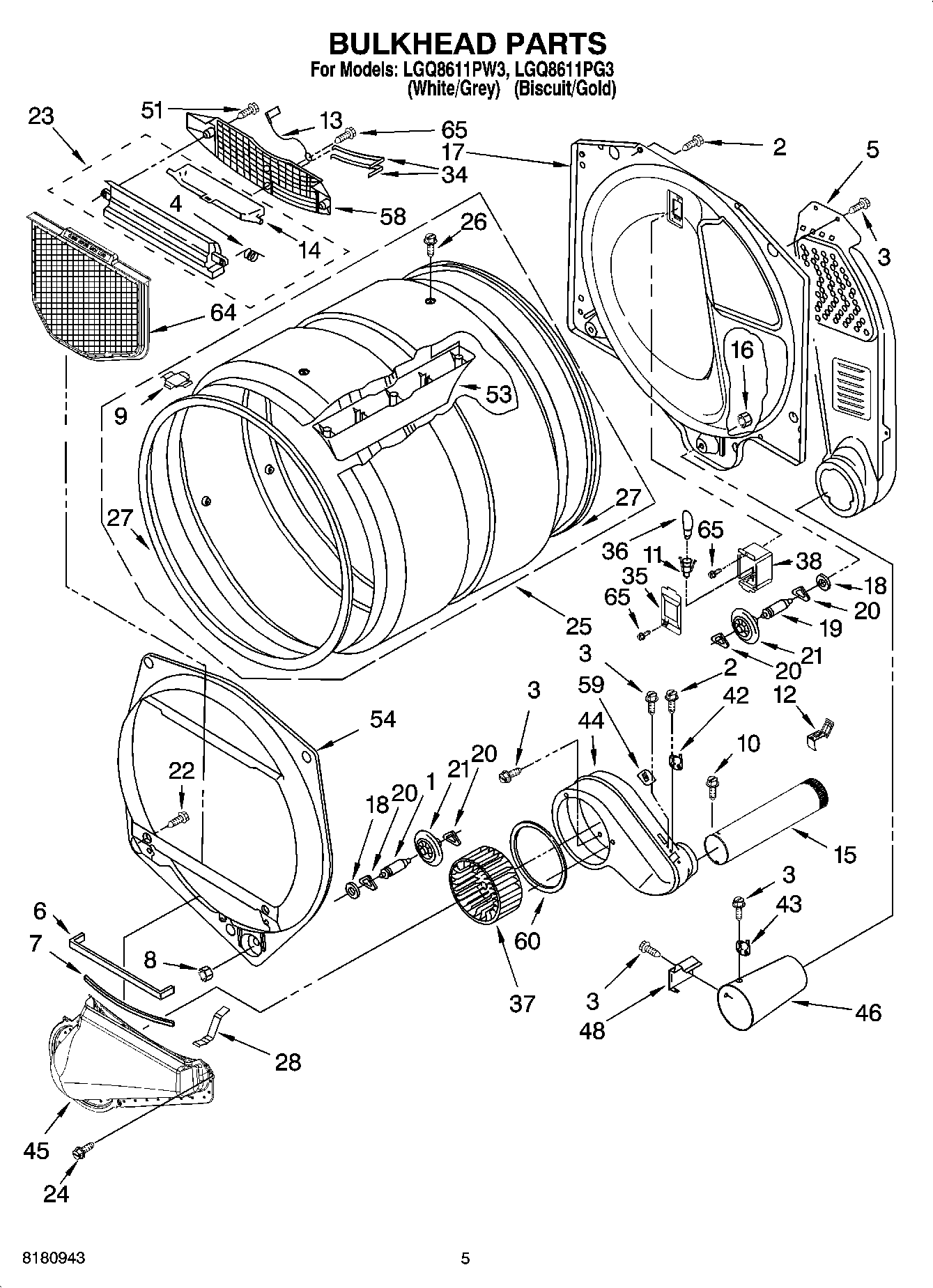

LGQ8611PG3 03 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT
2WP488729 Whirlpool Refrigerator Door Screw
3WP90767 Whirlpool Screw
4WP3394986 Whirlpool Spring
5W11168650 Whirlpool Air Duct
6WP697813 Whirlpool Seal
8WPW10080210 Whirlpool Nut
98066086 Whirlpool Plug
10WPW10139210 Whirlpool Screw
11W11700522 Whirlpool Socket
12W11684573 Whirlpool Clip Assembly
13Ground-Sensor
14W11222846 Whirlpool Door
15279936 Whirlpool Exhaust Pipe
16WPW10080190 Whirlpool Nut
17W11299301 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
23W11129408 Whirlpool Out Housing
24W11693756 Whirlpool Screw Assembly
25W10545923 Whirlpool Drum Assembly
26WPW10109200 Whirlpool Screw
27280114 Whirlpool Dryer Drum Seal
28WP8066208 Whirlpool Clip
34WP3387223 Whirlpool Electrode Assembly
35W11226088 Whirlpool Lens Assembly
36WP22002263 Whirlpool Dryer 10W Light Bulb
37WP697772 Whirlpool Dryer Blower Wheel
383977373 Whirlpool Bracket
42WP8318268 Whirlpool Thermostat
43W11050897 Whirlpool Dryer High Limit Thermostat
44W10888146 Whirlpool Housing
45WPW10128606 Whirlpool Lint Duct
46WP8066047 Whirlpool Funnel
48WP338906 Whirlpool Dryer Gas Sensor
51WP3387230 Whirlpool Screw
53WPW10113136 Whirlpool Drum Baffle
54WP697557 Whirlpool Bulkhead Assembly
58W11086603 Whirlpool Dryer Link Screen Air Grille
59WP3392519 Whirlpool Dryer Thermal Fuse
60WP697770 Whirlpool Blower Cover Plate Seal
64W10120998 Whirlpool Dryer Lint Screen Filter
