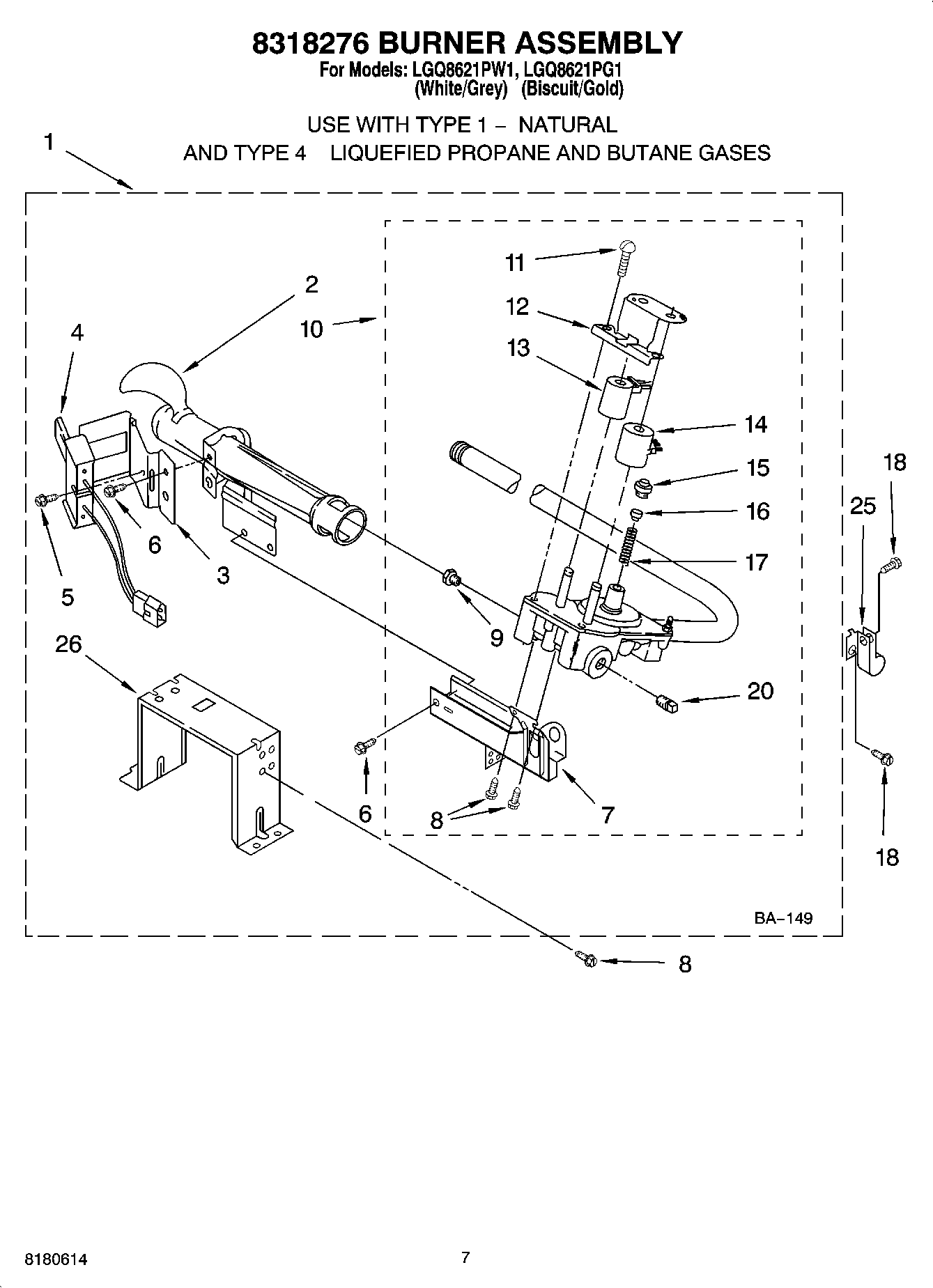

LGQ8621PG1 04 – 8318276 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	W11224254 Whirlpool Test Kit
	4392901 Whirlpool Biscuit Spray Paint
	ACCE
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
	4392067 Whirlpool Dryer Repair Kit
	350938 Whirlpool Spray Gun
	8212450A Whirlpool Dryer Rack Assembly
	350930 Whirlpool White Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
1	280119 Whirlpool Gas Burner
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	WP229742 Whirlpool Gas Orifice
9	WP234826 Whirlpool Gas Orifice
9	WP234868 Whirlpool Gas Orifice
10	WP8318281 Whirlpool Gas Valve
11	694421 Whirlpool Screw Assembly
12	694538 Whirlpool Bracket
14	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15	WP694424 Whirlpool Limiter
16	WP694423 Whirlpool Regulator
17	WP694422 Whirlpool Spring
18	WP488729 Whirlpool Refrigerator Door Screw
20	W10295523 Whirlpool Plug
25	3387561 Whirlpool Clamp
26	Bracket, Support
26	49572A Whirlpool Dryer Propane Gas Conversion Kit
26	FOLLOWING PARTS NOT ILLUSTRATED
