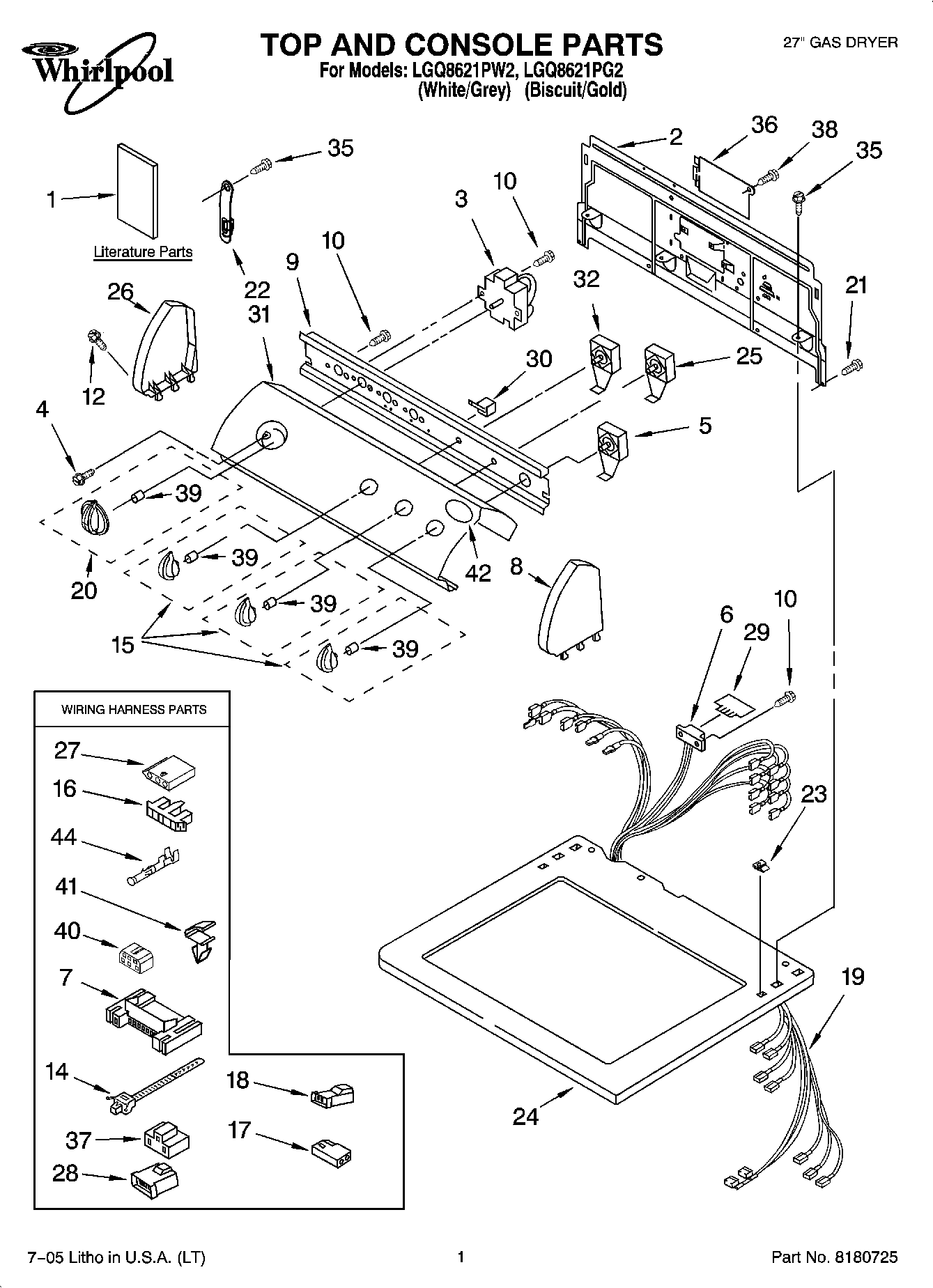

LGQ8621PG2 01 – TOP AND CONSOLE PARTS

LGQ8621PG2 01 – TOP AND CONSOLE PARTS

Written by

in

LGQ8621PG2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WPL 677818
1Guide, Use & Care
1Sheet, Cycle Feature
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Instructions, Installation
1Wiring Diagram
2285909 Whirlpool Rear Panel
3TIMER
43400859 Whirlpool Screw
5WP3398095 Whirlpool Dryer Start Relay
63391885 Whirlpool Connector
73395683 Whirlpool Connector
8WPL 8271362
8W10820038 Whirlpool Endcap
9Bracket, Control
12WP388326 Whirlpool Screw
14WP3391018 Whirlpool Wire Tie
15WPL 8544938
15WPL 8544937
16Connector, Timer
17Receptacle, Latching (2-Way) (Uses Terminal 94614)
18WP3403499 Whirlpool Connector
19Harness, Wiring
20WPL 8544957
20WPL 8544958
21WP693995 Whirlpool Screw
22WP8568314 Whirlpool Strap
23WP357213 Whirlpool Hinge Stopper
24Top (Biscuit)
24Top
25WP3405156 Whirlpool Switch
26Cap, End (L.H.) (BIscuit)
273936144 Whirlpool Connector
28WP3403498 Whirlpool Connector
29WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
30WP694419 Whirlpool Buzzer Adjuster
31Panel, Control (Includes Illus. 42) (Gold)
31Panel, Control (Includes Illus. 42) (Grey)
328530169 Whirlpool Switch
35WP488729 Whirlpool Refrigerator Door Screw
36W10819767 Whirlpool Cover
373401144 Whirlpool Connector
38WP90767 Whirlpool Screw
39WP8536939 Whirlpool Spring Clip
40Block, Disconnect
41WP3394427 Whirlpool Clip
42WPL 3400985
44WP94614 Whirlpool Terminal
