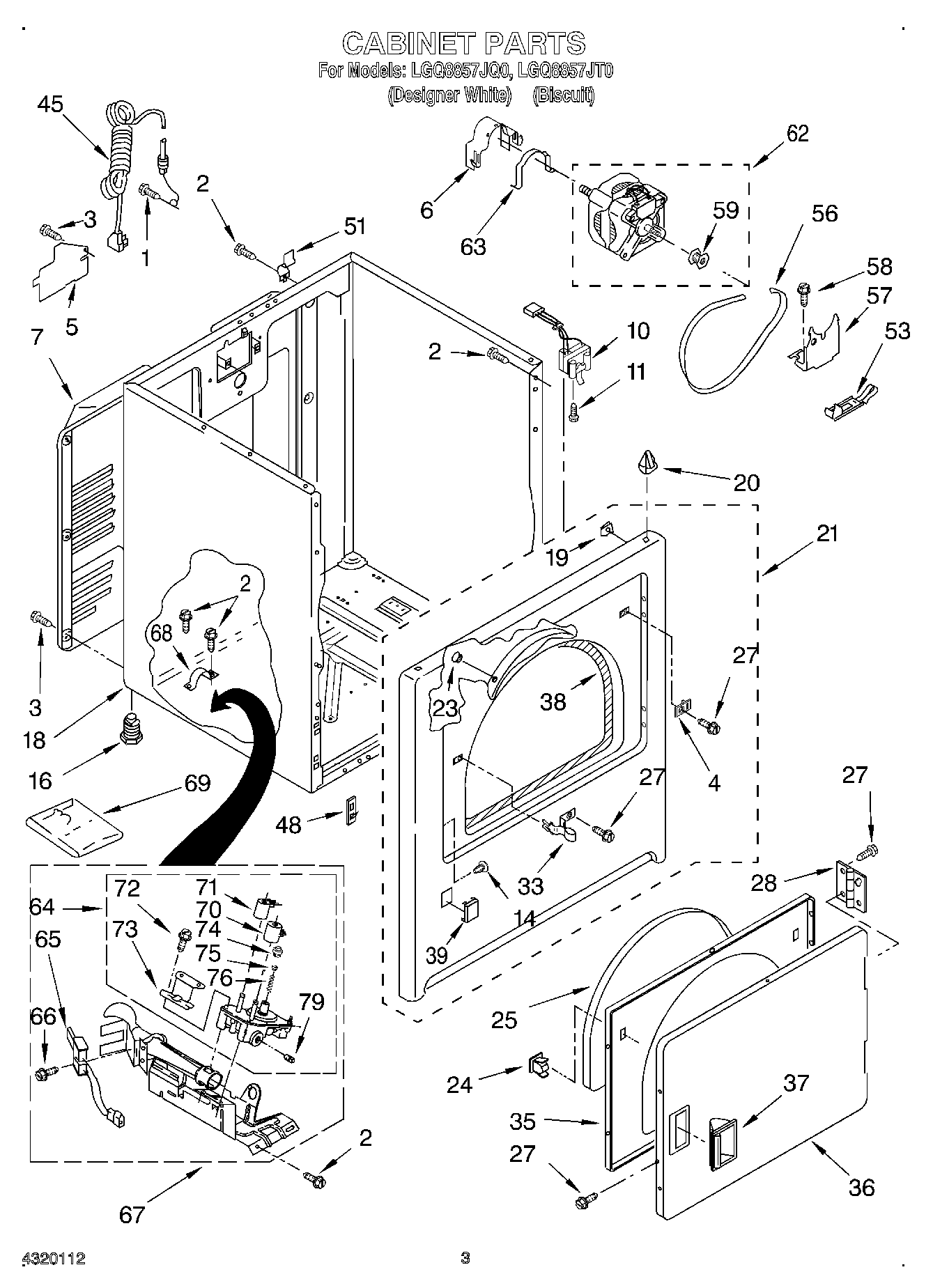

LGQ8857JQ0 02 – CABINET

LGQ8857JQ0 02 – CABINET

Written by

in

LGQ8857JQ0 02 – CABINET

Products

PositionProduct
1W10850756 Whirlpool Screw
2SCREW
3WP693995 Whirlpool Screw
4Plug, Strike Hole (Biscuit)
4WP3403630 Whirlpool Plug
5W11539855 Whirlpool Refrigerator Pump
6WP3404162 Whirlpool Clamp
7280043 Whirlpool Rear Panel
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
14WP3404413 Whirlpool Plug
14Plug, Hinge Hole (4) (Biscuit)
1649621 Whirlpool Leveling Feet
18Cabinet (Includes Illus. Nos. 5, 7, 15, 16 & 57) (White)
18Cabinet (Biscuit (Includes Illus. Nos. 5,7,16,36, & 40))
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Front Panel Assembly (Biscuit)
21Front Panel Assembly
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
25SEAL-DOOR DRYER
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
33W11429589 Whirlpool Strike
35WP3402341 Whirlpool Door
36W10861227 Whirlpool Door Assembly
36Door, Front (Biscuit)
37WP3405189 Whirlpool Handle
37WP3405184 Whirlpool White Door Handle
38W11035878 Whirlpool Bearing and Seal
39Plug, Front Panel (Biscuit)
39Plug, Front Panel (White)
45W11222083 Whirlpool Power Cord
48W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
62279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64279923 Whirlpool Gas Valve
65279311 Whirlpool Dryer Flat Igniter with Bracket
66WPW10366705 Whirlpool Screw
67WPL 3402844
68341029 Whirlpool Clamp
6949572A Whirlpool Dryer Propane Gas Conversion Kit
70279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
72694421 Whirlpool Screw Assembly
73694538 Whirlpool Bracket
74WP694424 Whirlpool Limiter
75WP694423 Whirlpool Regulator
76WP694422 Whirlpool Spring
79W10295523 Whirlpool Plug
