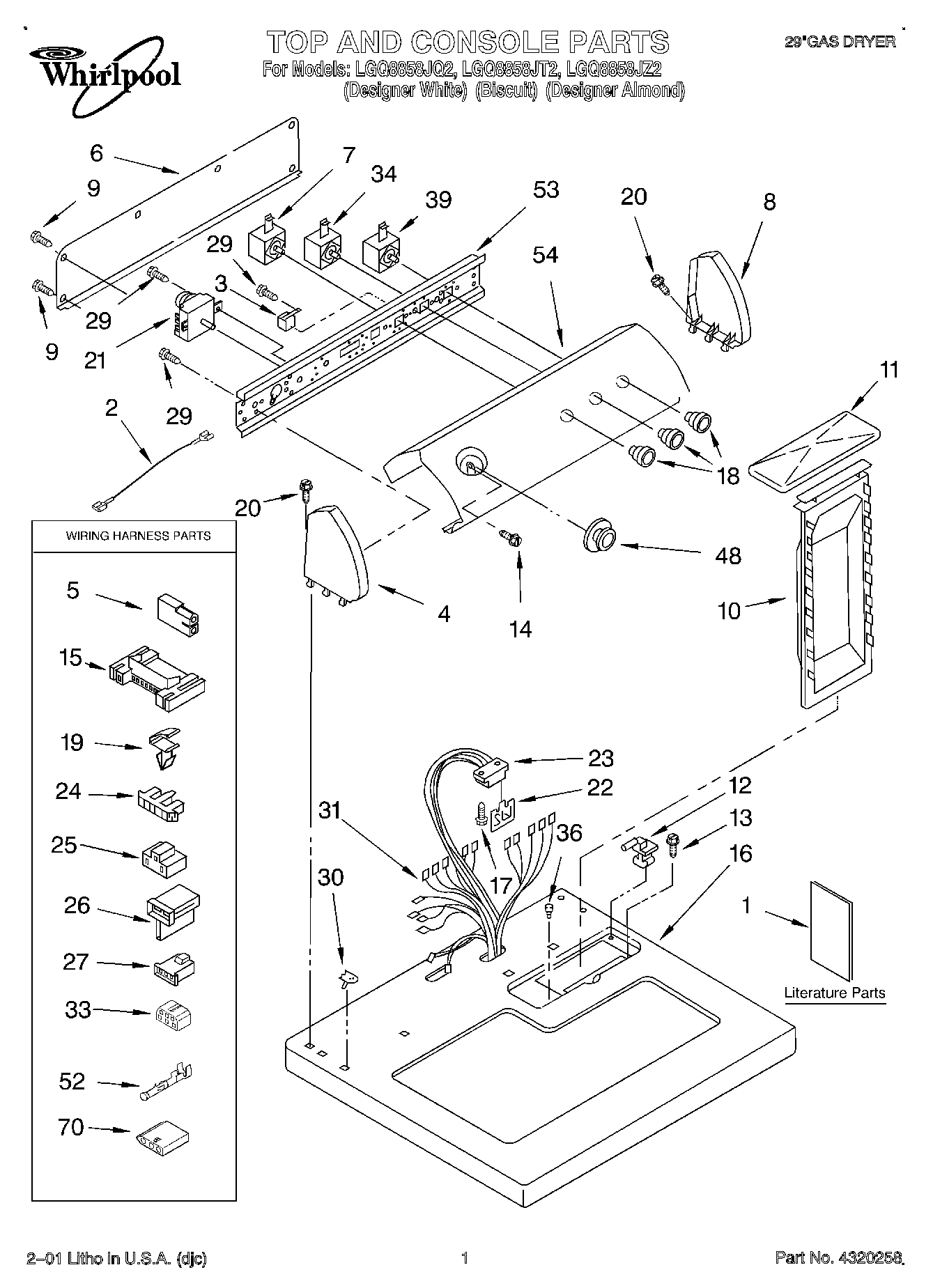

LGQ8858JT2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	Dryer
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Guide, Use & Care)
1	Literature Parts (Instructions, Installation)
2	Wire, Jumper (Black)
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.) (BIscuit)
4	Cap, End (L.H.) (Almond)
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	W10103406 Whirlpool Rear Panel
7	W11106324 Whirlpool Switch
8	W10820038 Whirlpool Endcap
8	Cap, End (R.H.) (Almond)
8	WPL 8271362
9	WP693995 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen
11	Cover, Lint Screen (Biscuit)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top (Biscuit)
16	Top (Almond)
16	Top
17	SCREW
18	3957797 Whirlpool Knob
18	WP3957799 Whirlpool Knob
19	WP3394427 Whirlpool Clip
20	WP388326 Whirlpool Screw
21	WP3406725 Whirlpool Timer
22	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
23	3391885 Whirlpool Connector
24	Connector, Timer
25	3401144 Whirlpool Connector
26	WP3403499 Whirlpool Connector
27	WP3403498 Whirlpool Connector
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
33	Block, Disconnect
34	3405154 Whirlpool Primary Switch
36	Bumper, Lint Lid
39	WP3398095 Whirlpool Dryer Start Relay
48	WP3957755 Whirlpool Knob
48	WP3957754 Whirlpool Knob Assembly
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	WPL 3977828
54	Pa
54	WPL 3977829
70	799344 Whirlpool Refrigerator Paint
70	3406839 Whirlpool Drying Rack
70	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
70	4392901 Whirlpool Biscuit Spray Paint
70	350938 Whirlpool Spray Gun
70	4392899 Whirlpool Biscuit Touch-Up Paint
70	3936144 Whirlpool Connector
70	350930 Whirlpool White Spray Paint
70	WP72107 Whirlpool Touchup
70	350956 Whirlpool Spray Assembly
70	72017 Whirlpool Appliance Touch-Up Paint White
70	Almond (Uncut)
