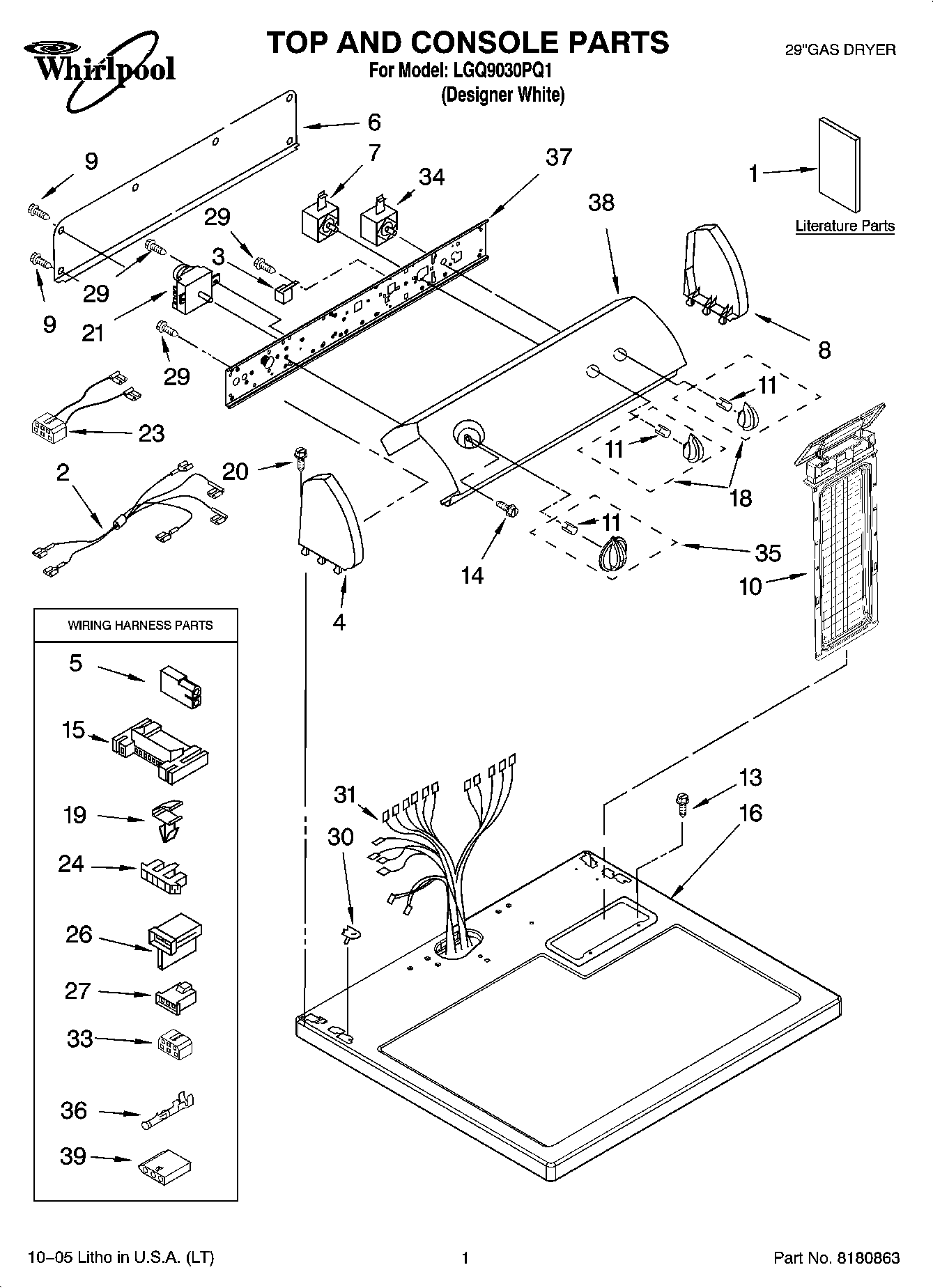

LGQ9030PQ1 01 – TOP AND CONSOLE PARTS

LGQ9030PQ1 01 – TOP AND CONSOLE PARTS

Written by

in

LGQ9030PQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Use & Care Guide
1Instructions, Installation
1Sheet, Cycle Feature
1WPL 677818
2Wire, Jumper (PTS to Buzzer)
3WP694419 Whirlpool Buzzer Adjuster
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7WP3399640 Whirlpool Switch
8W10820038 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
18WPL 8544935
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3976575 Whirlpool Timer
233976562 Whirlpool Wire Harness
24Connector, Timer
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WP90767 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318299877 Whirlpool Wire Harness
33Block, Disconnect
34WP8543274 Whirlpool PTS Switch
35W10756270 Whirlpool Dryer Timer Knob
36WP94614 Whirlpool Terminal
37Bracket, Control
38Panel, Control
393936144 Whirlpool Connector
