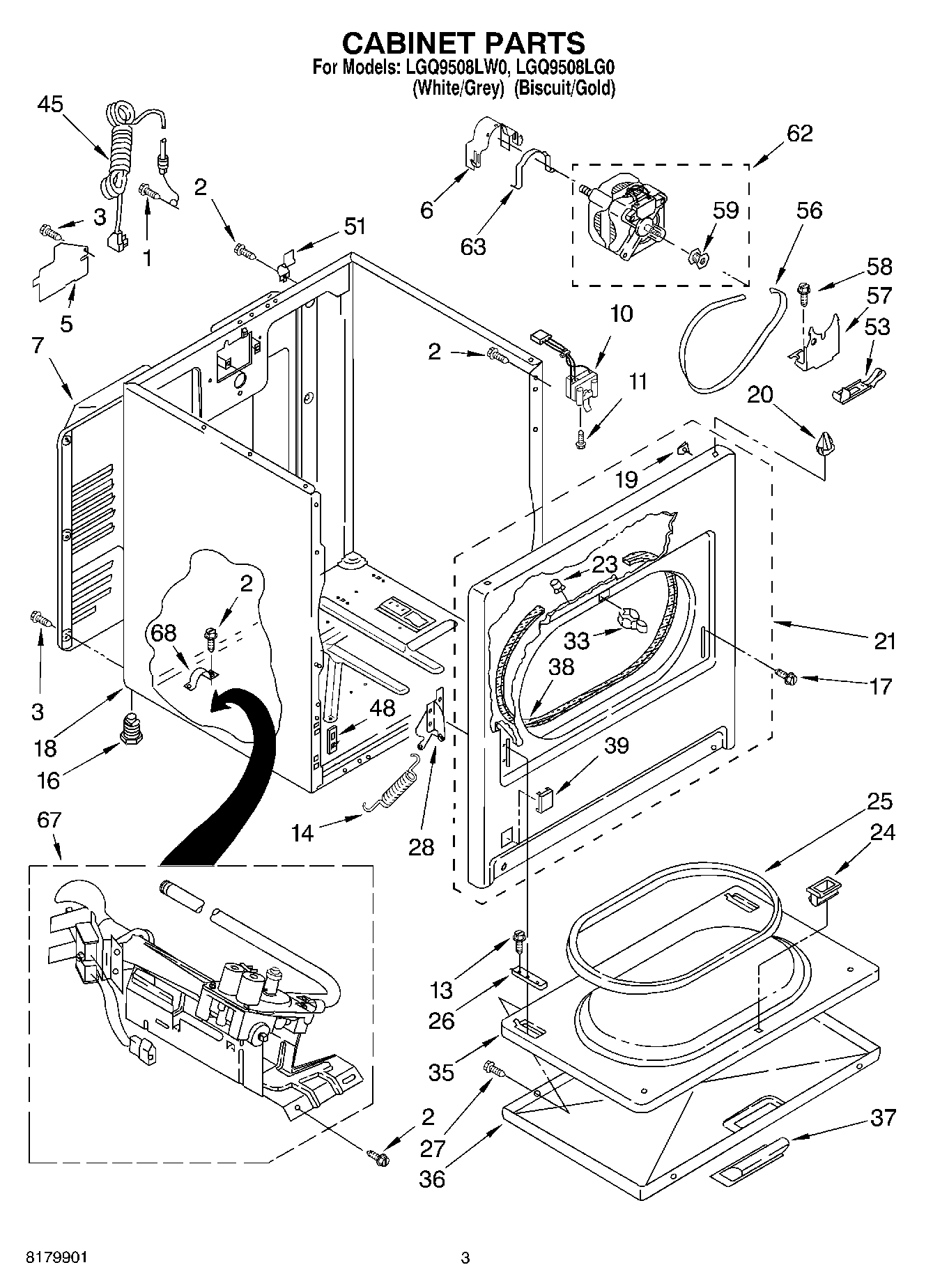

LGQ9508LG0 02 – CABINET

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
5	W11539855 Whirlpool Refrigerator Pump
6	WP3404162 Whirlpool Clamp
7	280043 Whirlpool Rear Panel
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
13	WP308685 Whirlpool Microwave Screw
14	WPW10041960 Whirlpool Door Spring
16	49621 Whirlpool Leveling Feet
17	Screw, 10-32 x 1/2
18	8533643 Whirlpool Dryer White Cabinet
18	Cabinet (Biscuit)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel, Front (Biscuit)
21	279740 Whirlpool Panel Primary with O/S2
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	W10906683 Whirlpool Door Seal
26	W11252547 Whirlpool Clip Assembly
27	WP694091 Whirlpool Screw
28	WP8066056 Whirlpool Door Hinge
28	WP8066057 Whirlpool Door Hinge
33	279570 Whirlpool Dryer Door Latch Kit
35	WP695737 Whirlpool Door
36	Door, Front (Biscuit)
36	WP3393549 Whirlpool Door Assembly
37	3977242 Whirlpool Handle
37	WP348721 Whirlpool Handle
38	W11035878 Whirlpool Bearing and Seal
39	Plug, Front Panel (Biscuit)
39	Plug, Front Panel (White)
45	W11222083 Whirlpool Power Cord
48	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
62	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
67	W10823508 Whirlpool Gas Burner
68	341029 Whirlpool Clamp
