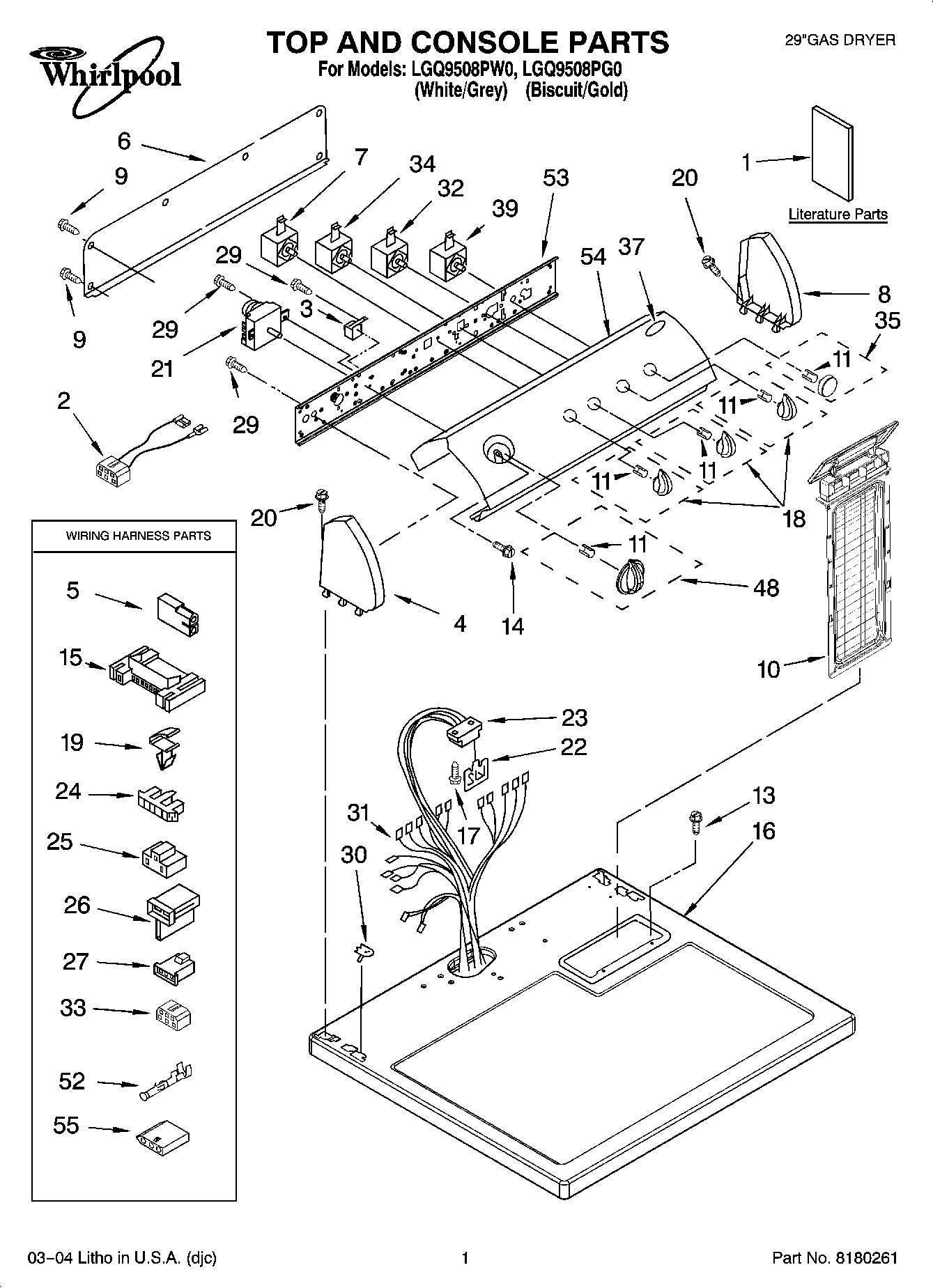

LGQ9508PG0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Dryer
1Literature Parts (Sheet, Cycle Feature)
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
23401695 Whirlpool Wire Harness
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7W11106324 Whirlpool Switch
8W10820038 Whirlpool Endcap
8WPL 8271362
9WP693995 Whirlpool Screw
10Screen, Lint (Biscuit)
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
16Top
17SCREW
18WPL 8544937
18WPL 8544938
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3406725 Whirlpool Timer
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
233391885 Whirlpool Connector
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
323405152 Whirlpool Switch Assembly
33Block, Disconnect
343405154 Whirlpool Primary Switch
35WP8544941 Whirlpool Knob
37WPL 3400985
39WP3398094 Whirlpool Push To Start Switch
48WPL 8544958
48WPL 8544957
52WP94614 Whirlpool Terminal
53Bracket, Control
54WPL 8545995
54WPL 8545994
554392065 Whirlpool Dryer Maintenance Kit
55350938 Whirlpool Spray Gun
55KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
5572017 Whirlpool Appliance Touch-Up Paint White
55799344 Whirlpool Refrigerator Paint
55350930 Whirlpool White Spray Paint
554392899 Whirlpool Biscuit Touch-Up Paint
554392901 Whirlpool Biscuit Spray Paint
55PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
553406839 Whirlpool Drying Rack
55W11224254 Whirlpool Test Kit
553936144 Whirlpool Connector
55WPL ARI156866A
