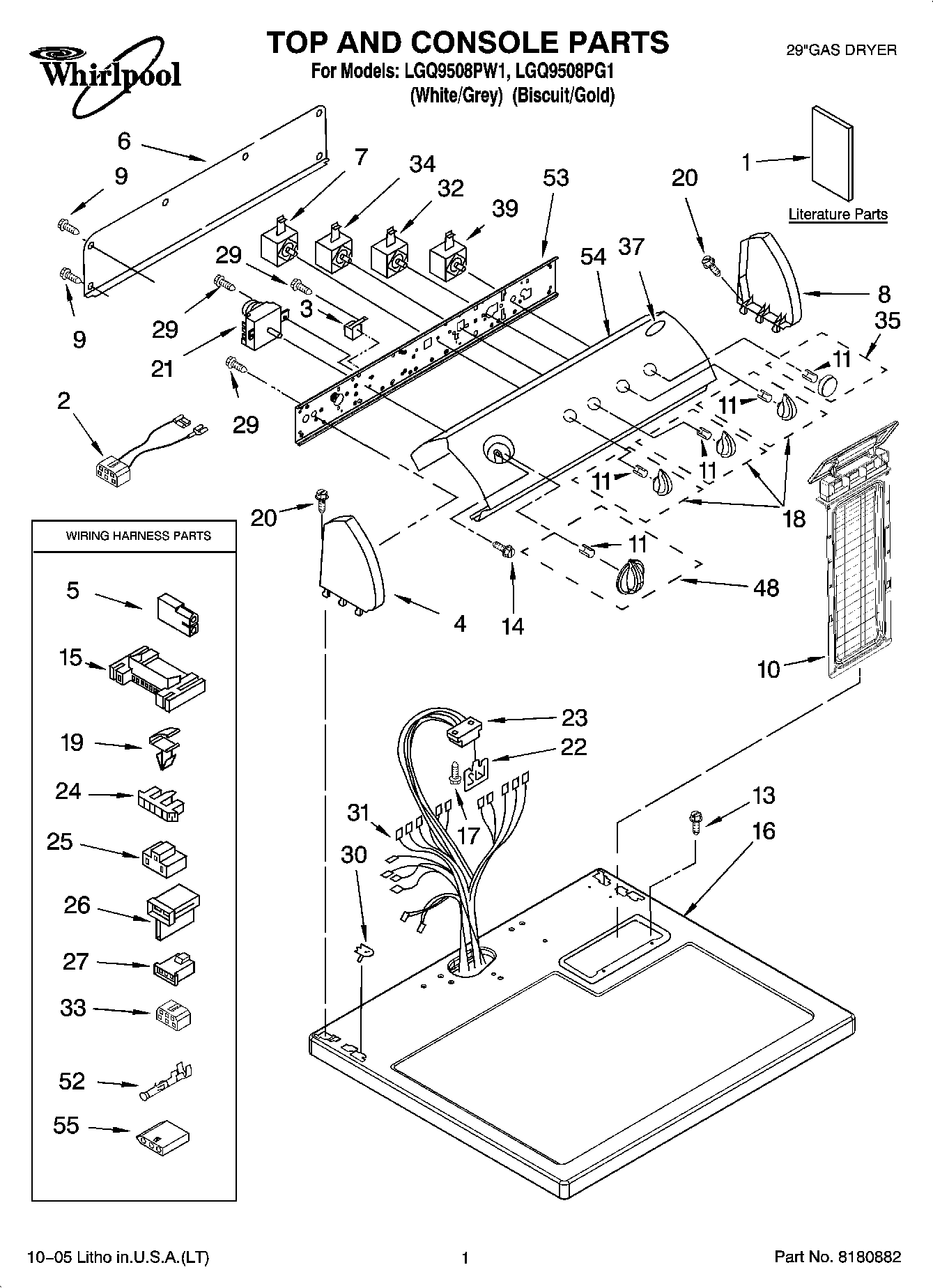

LGQ9508PW1 01 – TOP AND CONSOLE PARTS

LGQ9508PW1 01 – TOP AND CONSOLE PARTS

Written by

in

LGQ9508PW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1WPL 677818
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Use & Care Guide
1Instructions, Installation
1Sheet, Cycle Feature
23401695 Whirlpool Wire Harness
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7W11106324 Whirlpool Switch
8WPL 8271362
8W10820038 Whirlpool Endcap
9WP693995 Whirlpool Screw
10Screen, Lint (Biscuit)
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
16Top
17SCREW
18WPL 8544937
18WPL 8544938
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3406725 Whirlpool Timer
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
233391885 Whirlpool Connector
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WP90767 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
323405152 Whirlpool Switch Assembly
33Block, Disconnect
343405154 Whirlpool Primary Switch
35WP8544941 Whirlpool Knob
37WPL 3400985
39WP3398094 Whirlpool Push To Start Switch
48WPL 8544957
48WPL 8544958
52WP94614 Whirlpool Terminal
53Bracket, Control
54WPL 8545994
54WPL 8545995
553936144 Whirlpool Connector
