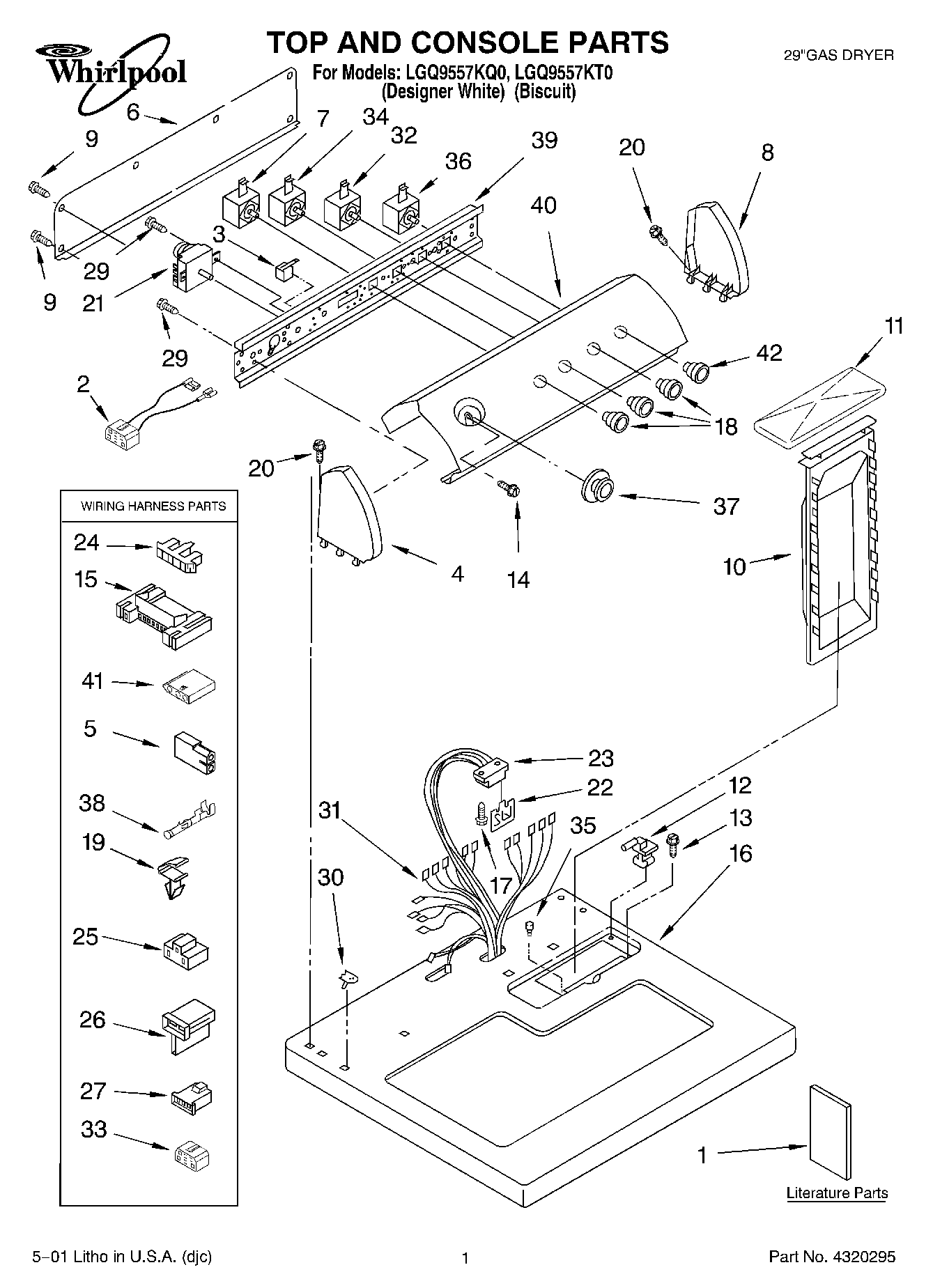

LGQ9557KQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGQ9557KQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGQ9557KQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
Dryer
1Literature Parts (Use & Care Guide)
1Literature Parts (Wiring Diagram)
1Literature Parts (Instructions, Installation)
23401695 Whirlpool Wire Harness
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7W11106324 Whirlpool Switch
8W10820038 Whirlpool Endcap
8WPL 8271362
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
16Top (Biscuit)
17SCREW
183957797 Whirlpool Knob
18WP3957799 Whirlpool Knob
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3406725 Whirlpool Timer
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
233391885 Whirlpool Connector
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
323405152 Whirlpool Switch Assembly
33Block, Disconnect
343405154 Whirlpool Primary Switch
35Bumper, Lint Lid
36WP3398094 Whirlpool Push To Start Switch
37WP3957754 Whirlpool Knob Assembly
37WP3957755 Whirlpool Knob
38WP94614 Whirlpool Terminal
39Bracket, Control
40WPL 3977854
40WPL 3977853
413936144 Whirlpool Connector
42350938 Whirlpool Spray Gun
424392899 Whirlpool Biscuit Touch-Up Paint
42WPL 8271349
424392901 Whirlpool Biscuit Spray Paint
42PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
42350930 Whirlpool White Spray Paint
423957804 Whirlpool Knob
42799344 Whirlpool Refrigerator Paint
4272017 Whirlpool Appliance Touch-Up Paint White
