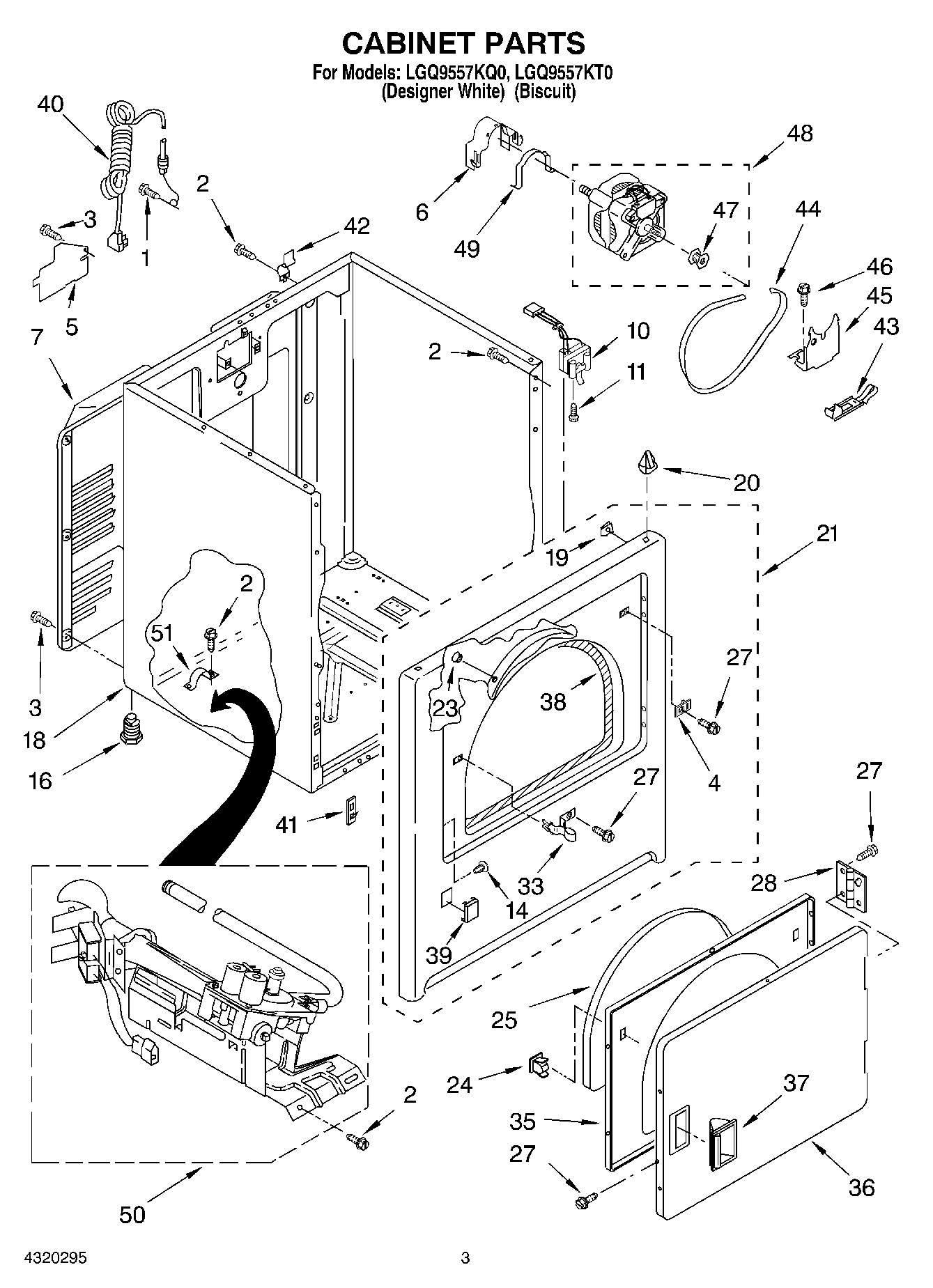

LGQ9557KT0 02 – CABINET

LGQ9557KT0 02 – CABINET

Written by

in

LGQ9557KT0 02 – CABINET

Products

PositionProduct
1W10850756 Whirlpool Screw
2SCREW
3WP693995 Whirlpool Screw
4Plug, Strike Hole (Biscuit)
4WP3403630 Whirlpool Plug
5W11539855 Whirlpool Refrigerator Pump
6WP3404162 Whirlpool Clamp
7280043 Whirlpool Rear Panel
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
14WP3404413 Whirlpool Plug
14Plug, Hinge Hole (4) (Biscuit)
1649621 Whirlpool Leveling Feet
18Cabinet (Biscuit (Includes Illus. Nos. 5,7,16,36, & 40))
18Cabinet (Includes Illus. Nos. 5, 7, 15, 16 & 57) (White)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Front Panel Assembly
21Front Panel Assembly (Biscuit)
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
25SEAL-DOOR DRYER
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
33W11429589 Whirlpool Strike
35WP3402341 Whirlpool Door
36W10861227 Whirlpool Door Assembly
36Door, Front (Biscuit)
37WP3405184 Whirlpool White Door Handle
37WP3405189 Whirlpool Handle
38W11035878 Whirlpool Bearing and Seal
39Plug, Front Panel (White)
39Plug, Front Panel (Biscuit)
40W11222083 Whirlpool Power Cord
41W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
42WP8066217 Whirlpool Hinge
43WP691366 Whirlpool Dryer Idler Pulley Assembly
44341241 Whirlpool Dryer Drum Belt
45WP348780 Whirlpool Base
463400500 Whirlpool Screw
47WP8066184 Whirlpool Dryer Motor Pulley
48279827 Whirlpool Dryer Drive Motor
49WP660658 Whirlpool Clamp
50W10823508 Whirlpool Gas Burner
51341029 Whirlpool Clamp
