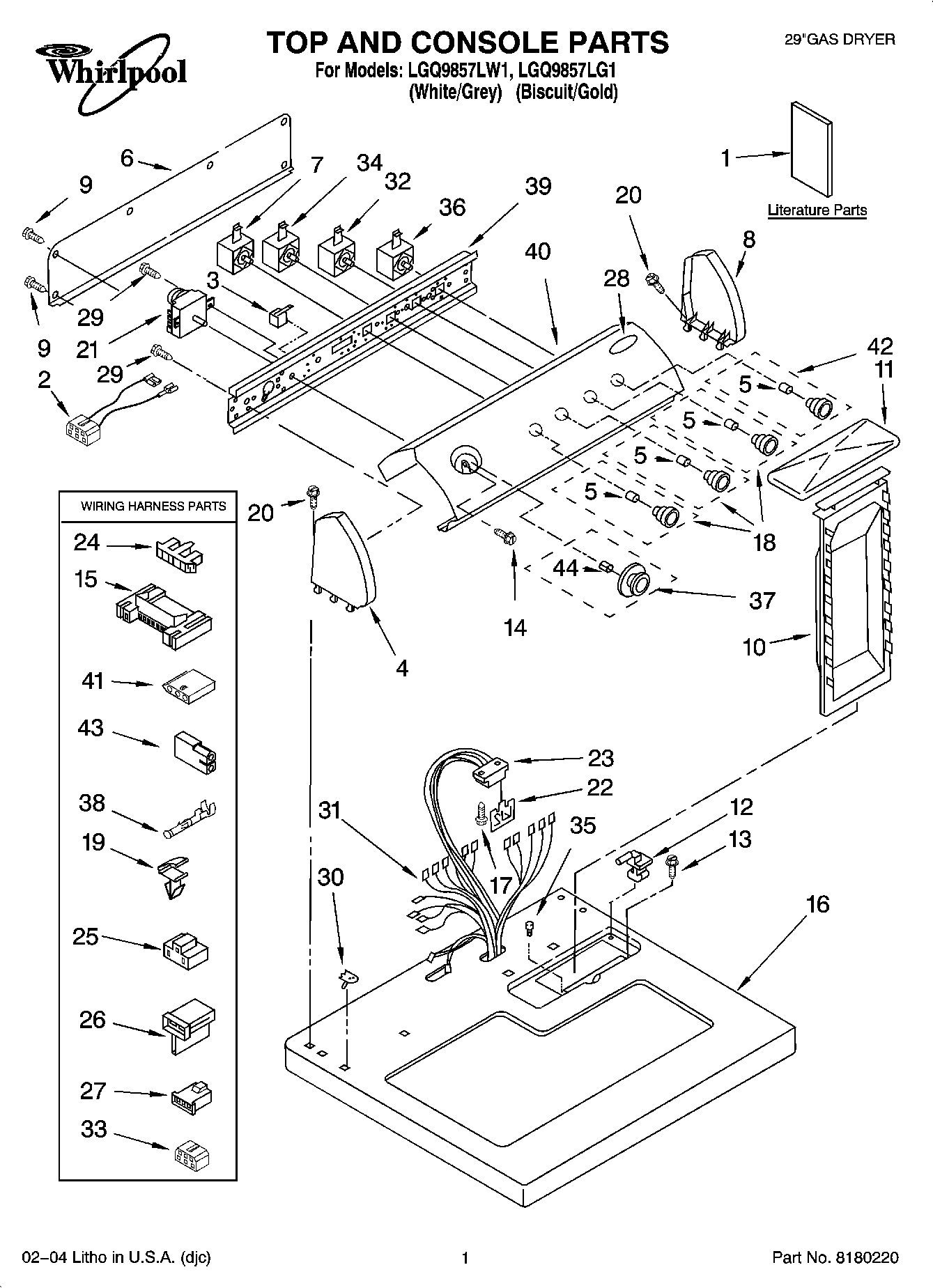

LGQ9857LG1 01 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

LGQ9857LG1 01 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

Written by

in

LGQ9857LG1 01 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
1Dryer
1Literature Parts (Wiring Diagram)
1Literature Parts (Sheet, Cycle Feature)
1Literature Parts (Use & Care Guide)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Installation Instructions)
23401695 Whirlpool Wire Harness
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5WP8536939 Whirlpool Spring Clip
6W10103406 Whirlpool Rear Panel
7W11106324 Whirlpool Switch
8W10820038 Whirlpool Endcap
8WPL 8271362
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
16Top (Biscuit)
17SCREW
18WPL 8538958
18KNOB
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3406725 Whirlpool Timer
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
233391885 Whirlpool Connector
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
28Medallion
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
323405152 Whirlpool Switch Assembly
33Block, Disconnect
343405154 Whirlpool Primary Switch
35Bumper, Lint Lid
36WP3398094 Whirlpool Push To Start Switch
37WP8557455 Whirlpool Knob Timer
37Timer Knob Assembly (Biscuit)
38WP94614 Whirlpool Terminal
39Bracket, Control
40WPL 8532631
40WPL 8532632
413936144 Whirlpool Connector
42Knob, Push-To-Start (Biscuit)
42Knob, Push-To-Start
43Receptacle, Latching (2-Way) (Uses Terminal 94614)
44350938 Whirlpool Spray Gun
44WPL ARI156876A
44PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
4472017 Whirlpool Appliance Touch-Up Paint White
44350930 Whirlpool White Spray Paint
44W11224254 Whirlpool Test Kit
444392065 Whirlpool Dryer Maintenance Kit
443406839 Whirlpool Drying Rack
44WP688805 Whirlpool Spring Clip
44799344 Whirlpool Refrigerator Paint
444392899 Whirlpool Biscuit Touch-Up Paint
444392901 Whirlpool Biscuit Spray Paint
44KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
