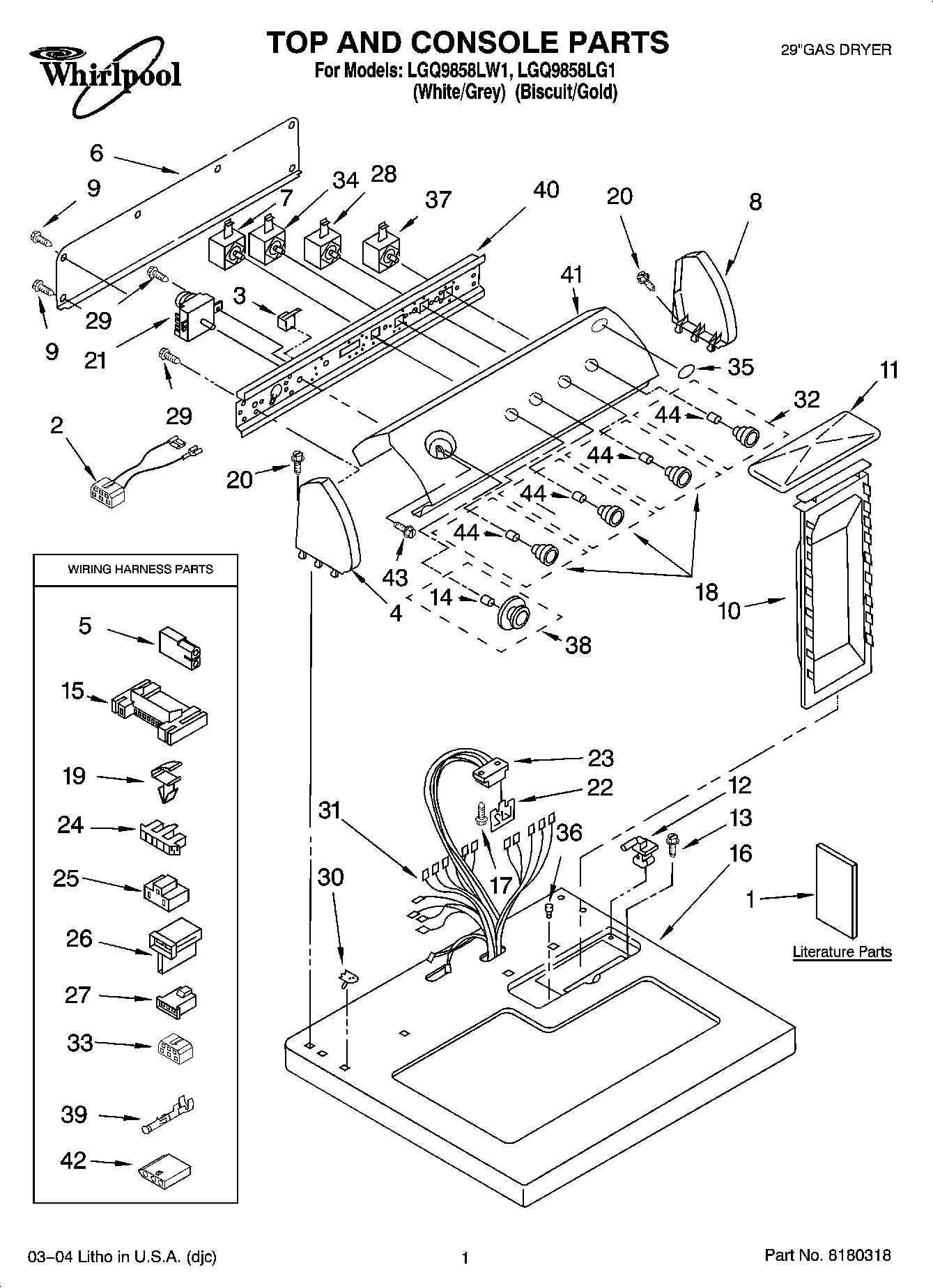

LGQ9858LG1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Dryer
1Literature Parts (Sheet, Cycle Feature)
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
23401695 Whirlpool Wire Harness
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7W11106324 Whirlpool Switch
8WPL 8271362
8W10820038 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP688805 Whirlpool Spring Clip
153395683 Whirlpool Connector
16Top (Biscuit)
16Top
17SCREW
18WPL 8538958
18KNOB
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3406725 Whirlpool Timer
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
233391885 Whirlpool Connector
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
283405152 Whirlpool Switch Assembly
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32Knob, Push-To-Start
32Knob, Push-To-Start (Biscuit)
33Block, Disconnect
343405154 Whirlpool Primary Switch
35Medallion
36Bumper, Lint Lid
37WP3398094 Whirlpool Push To Start Switch
38Timer Knob Assembly (Biscuit)
38WP8557455 Whirlpool Knob Timer
39WP94614 Whirlpool Terminal
40Bracket, Control
41WPL 8532632
41WPL 8532631
423936144 Whirlpool Connector
433400859 Whirlpool Screw
444392899 Whirlpool Biscuit Touch-Up Paint
444392901 Whirlpool Biscuit Spray Paint
44350938 Whirlpool Spray Gun
44WPL ARI156885A
44WP8536939 Whirlpool Spring Clip
443406839 Whirlpool Drying Rack
4472017 Whirlpool Appliance Touch-Up Paint White
444392065 Whirlpool Dryer Maintenance Kit
44W11224254 Whirlpool Test Kit
44PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
44KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
44799344 Whirlpool Refrigerator Paint
44350930 Whirlpool White Spray Paint
