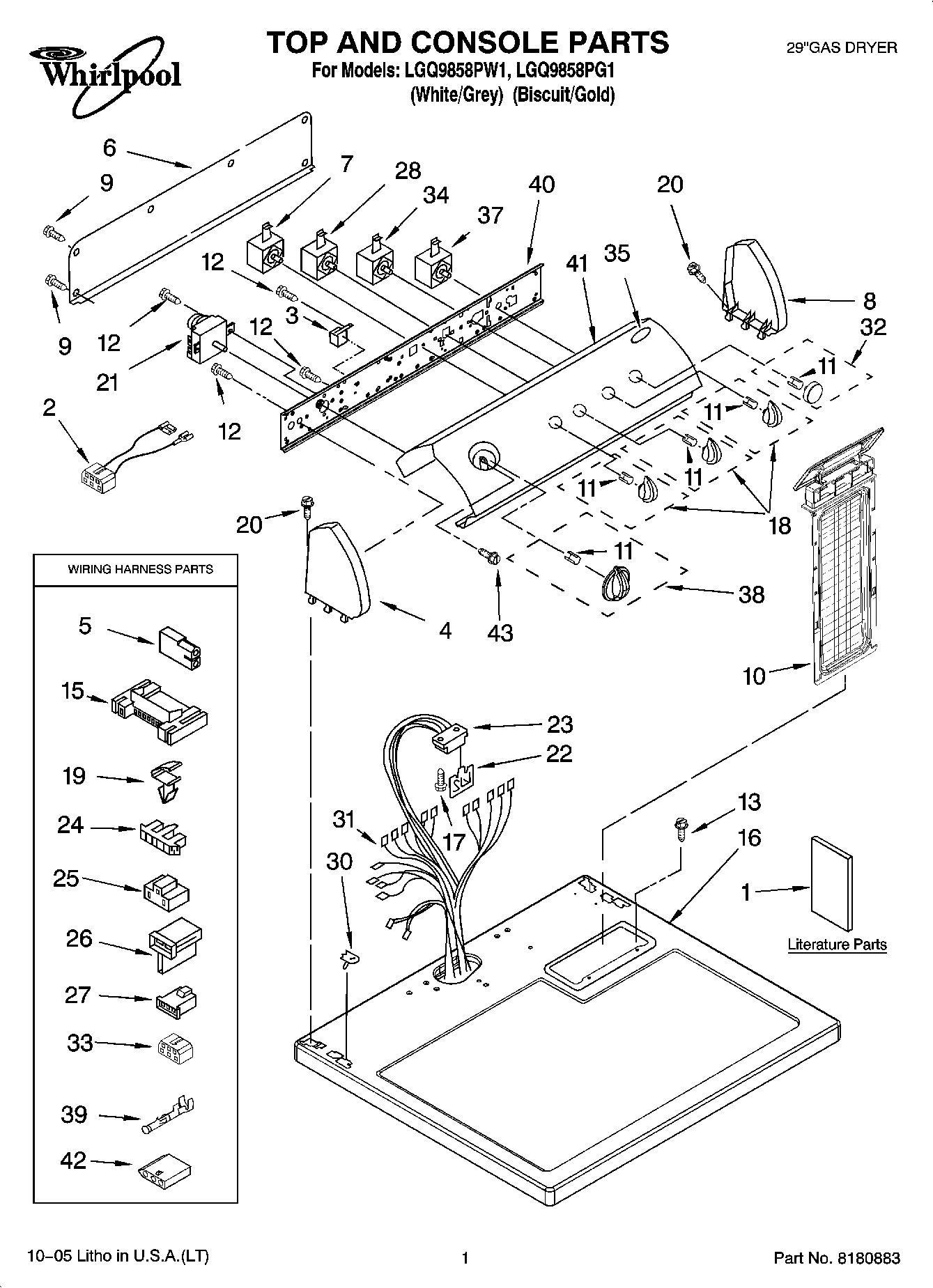

LGQ9858PG1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Use & Care Guide
1Instructions, Installation
1Sheet, Cycle Feature
1WPL 677818
23401695 Whirlpool Wire Harness
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (BIscuit)
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7W11106324 Whirlpool Switch
8W10820038 Whirlpool Endcap
8WPL 8271362
9WP693995 Whirlpool Screw
10Screen, Lint (Biscuit)
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
153395683 Whirlpool Connector
16Top
16Top
17W11693756 Whirlpool Screw Assembly
18WPL 8544937
18WPL 8544938
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3406725 Whirlpool Timer
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
233391885 Whirlpool Connector
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
283405152 Whirlpool Switch Assembly
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32WP8544941 Whirlpool Knob
33Block, Disconnect
343405154 Whirlpool Primary Switch
35WPL 3400985
37WP3398094 Whirlpool Push To Start Switch
38WPL 8544957
38WPL 8544958
39WP94614 Whirlpool Terminal
40Bracket, Control
41WPL 8545992
41WPL 8545993
423936144 Whirlpool Connector
433400859 Whirlpool Screw
