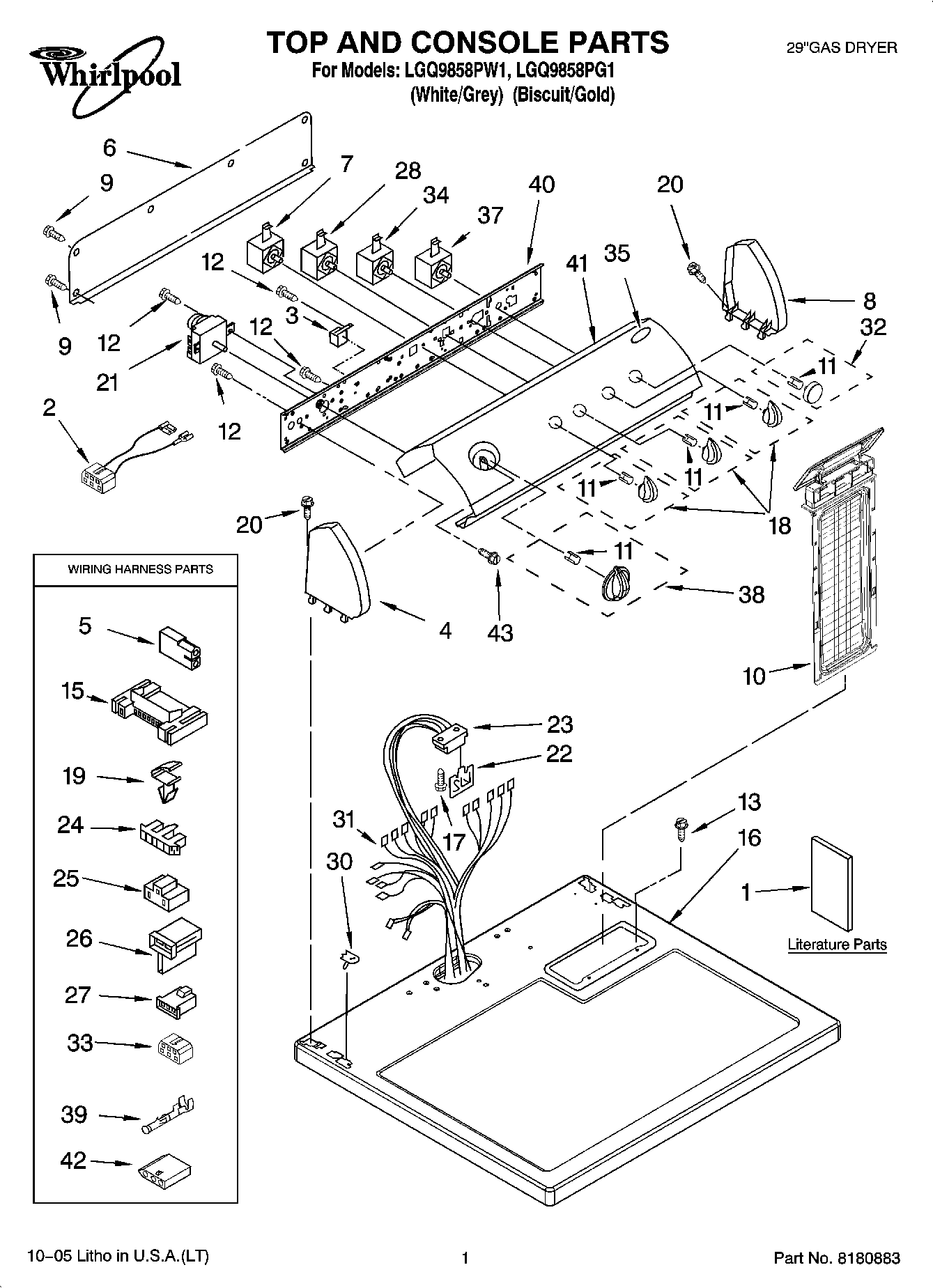

LGQ9858PW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Wiring Diagram
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Use & Care Guide
1	Instructions, Installation
1	Sheet, Cycle Feature
1	WPL 677818
2	3401695 Whirlpool Wire Harness
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.) (BIscuit)
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	W10103406 Whirlpool Rear Panel
7	W11106324 Whirlpool Switch
8	W10820038 Whirlpool Endcap
8	WPL 8271362
9	WP693995 Whirlpool Screw
10	Screen, Lint (Biscuit)
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
16	Top
17	W11693756 Whirlpool Screw Assembly
18	WPL 8544937
18	WPL 8544938
19	WP3394427 Whirlpool Clip
20	WP388326 Whirlpool Screw
21	WP3406725 Whirlpool Timer
22	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
23	3391885 Whirlpool Connector
24	Connector, Timer
25	3401144 Whirlpool Connector
26	WP3403499 Whirlpool Connector
27	WP3403498 Whirlpool Connector
28	3405152 Whirlpool Switch Assembly
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WP8544941 Whirlpool Knob
33	Block, Disconnect
34	3405154 Whirlpool Primary Switch
35	WPL 3400985
37	WP3398094 Whirlpool Push To Start Switch
38	WPL 8544957
38	WPL 8544958
39	WP94614 Whirlpool Terminal
40	Bracket, Control
41	WPL 8545992
41	WPL 8545993
42	3936144 Whirlpool Connector
43	3400859 Whirlpool Screw
