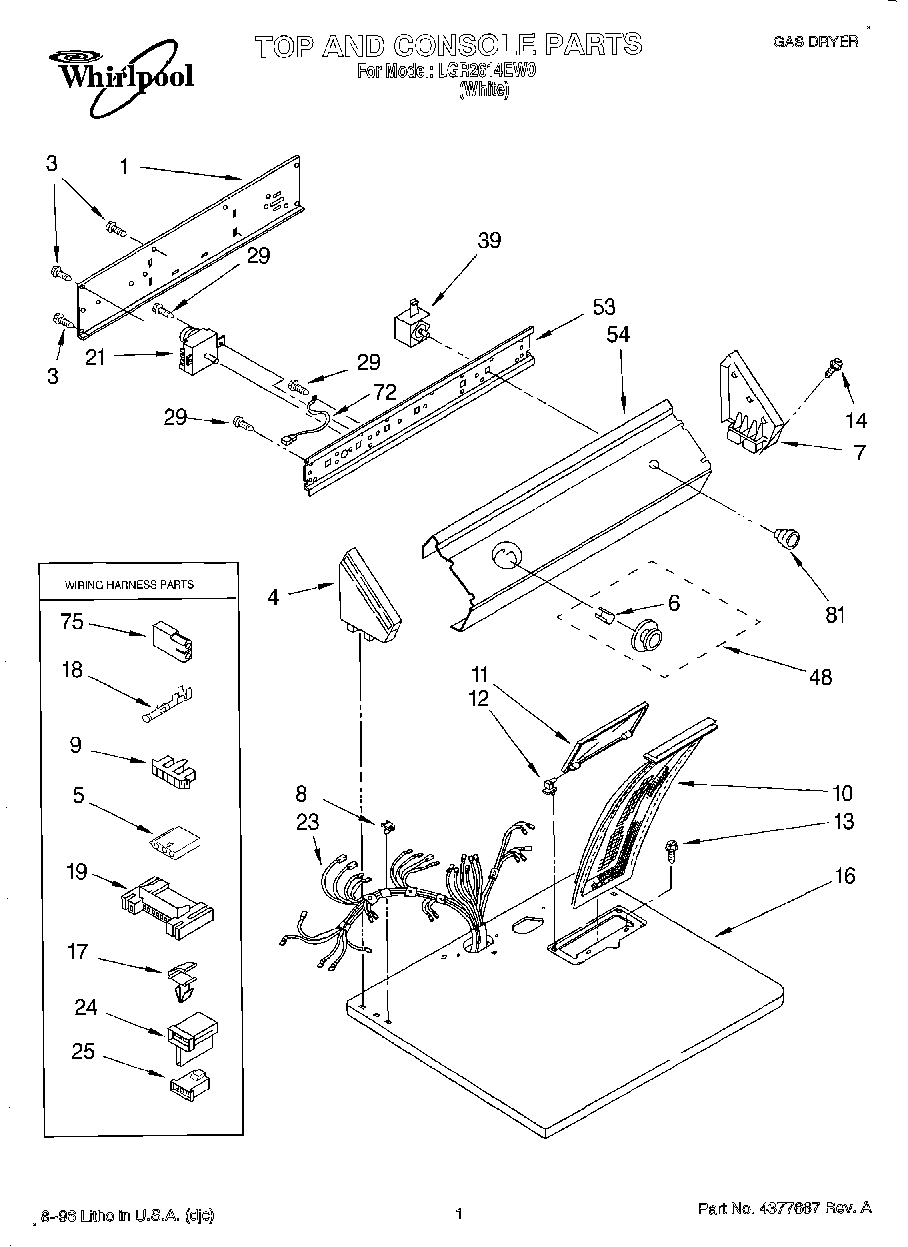

LGR2614EW0 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGR2614EW0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGR2614EW0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Label, Wiring Diagram
Instructions, Installation
Dryer
WPL LIT3405515
799344 Whirlpool Refrigerator Paint
Instructions, Door Reversing
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
1Panel, Rear Console
3WP693995 Whirlpool Screw
4Cap, End (L.H.)
5Connector (Door Switch)
6WP688805 Whirlpool Spring Clip
7Cap, End (R.H.)
8WP357213 Whirlpool Hinge Stopper
9Connector, Timer
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
16Top (White)
17WP3394427 Whirlpool Clip
18WP94614 Whirlpool Terminal
193395683 Whirlpool Connector
21Timer, 60 Hz.
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
39WP3395382 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control
72Wire, Ground
75Receptacle, Latching (2-Way) (Uses Terminal 94614)
81Knob, Push To Start
