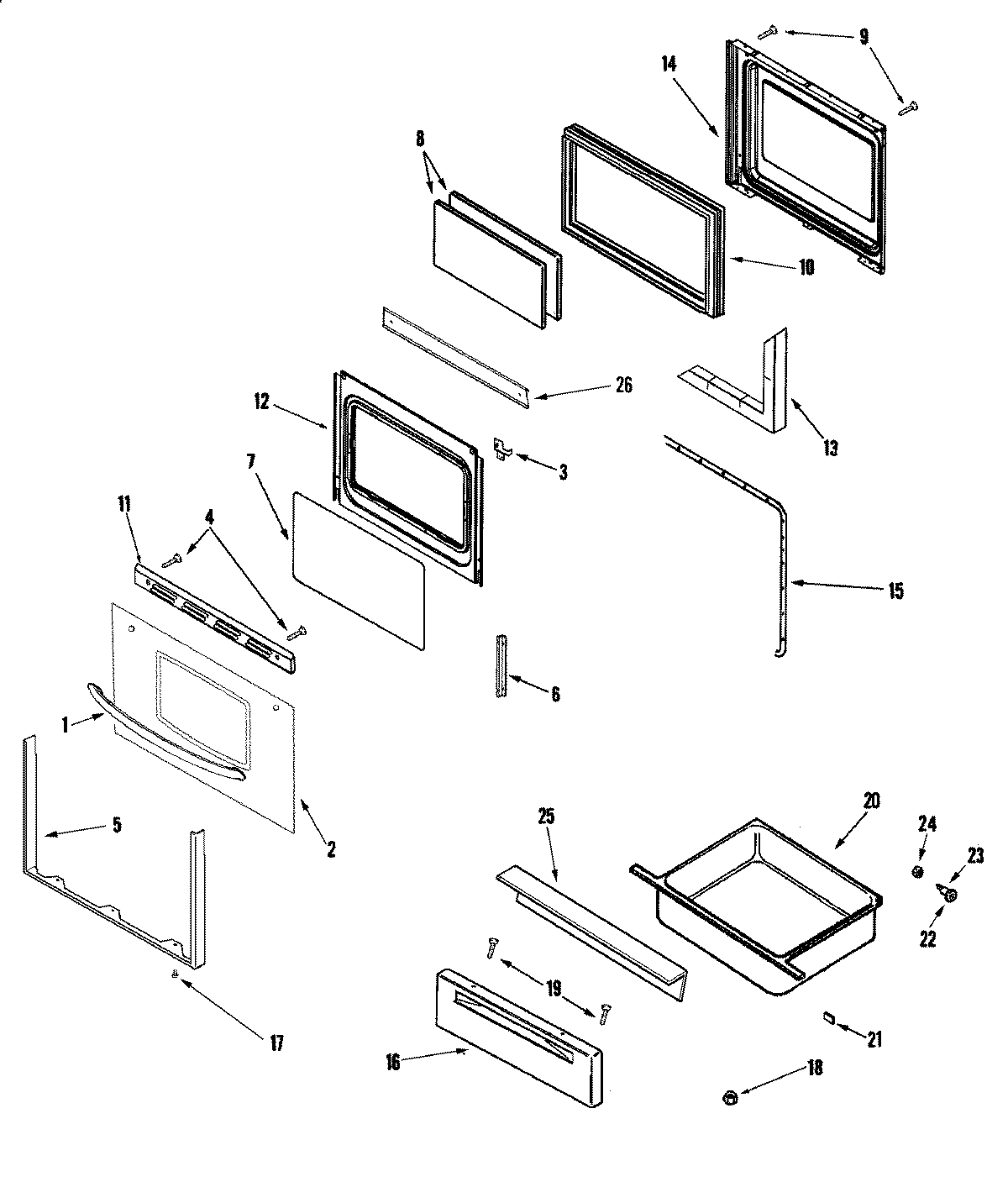

LGR3330ADB 03 – DOOR/DRAWER

LGR3330ADB 03 – DOOR/DRAWER

Written by

in

LGR3330ADB 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 7701P539-60
1MAY 74010338
2MAY 74010362
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
4MAY 74001521
4WP74006515 Whirlpool Washer Screw
5WP74004224 Whirlpool Tape
5MAY 74004324
6MAY 74003650
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
9SCREW
10FRAME, GLASS
11MAY 74010239
12MAY 7101P356-60
12MAY 74009502
13INSULATION, OVEN DOOR
14MAY 74003642
14NUT, SNAP (ROUND-BLK)
15GASKT-DOOR OVEN
16PANEL, DRAWER (BLK)
17WP98008545 Whirlpool Screw
18WPW10131078 Whirlpool Nut Assembly
20MAY 74008337
21WP74005546 Whirlpool RU Spacer
22WP74004078 Whirlpool Door Roller
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
25LINING, DRAWER PANEL
