LGR3422AN0 04 – TOP AND CONSOLE

LGR3422AN0 04 – TOP AND CONSOLE

Written by

in

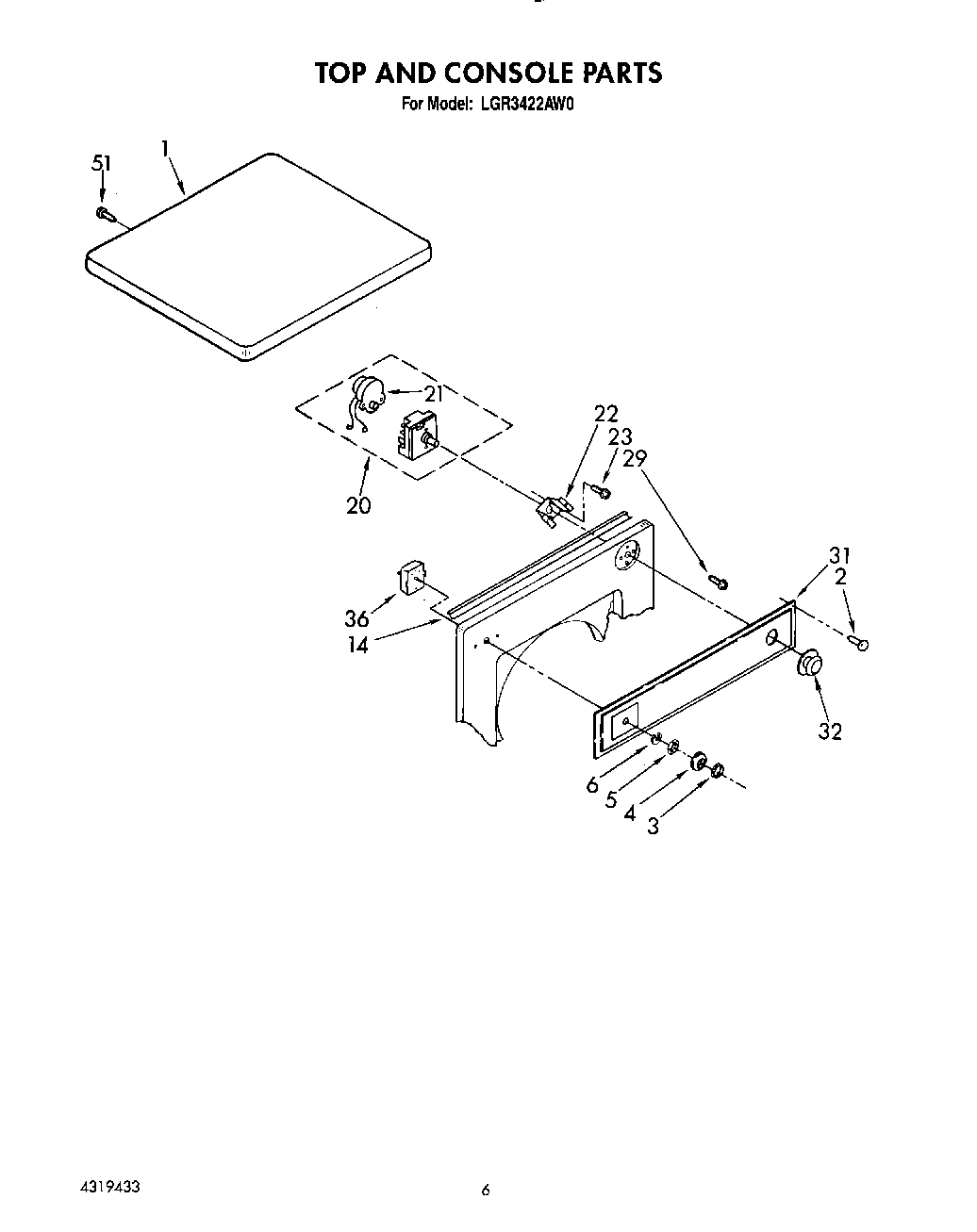

LGR3422AN0 04 – TOP AND CONSOLE

Products

PositionProduct
1345703 Whirlpool White Maintop
1Top (Almond)
2Rivet, Plastic (4)
3Nut, Knurled
4Ring, Trim
5Nut, Hex
6Lockwasher
14Protector Support
20Timer, 60 Hz.
21(Timer Motor Not Serviceable)
22348171 Whirlpool Bracket
23303776 Whirlpool Dishwasher Screw
29WP90767 Whirlpool Screw
31Panel, Control (White)
31Panel, Control (Almond)
32Knob Assembly (White)
32Knob Assembly (Almond)
36Switch, Push-To-Start
51SCREW
