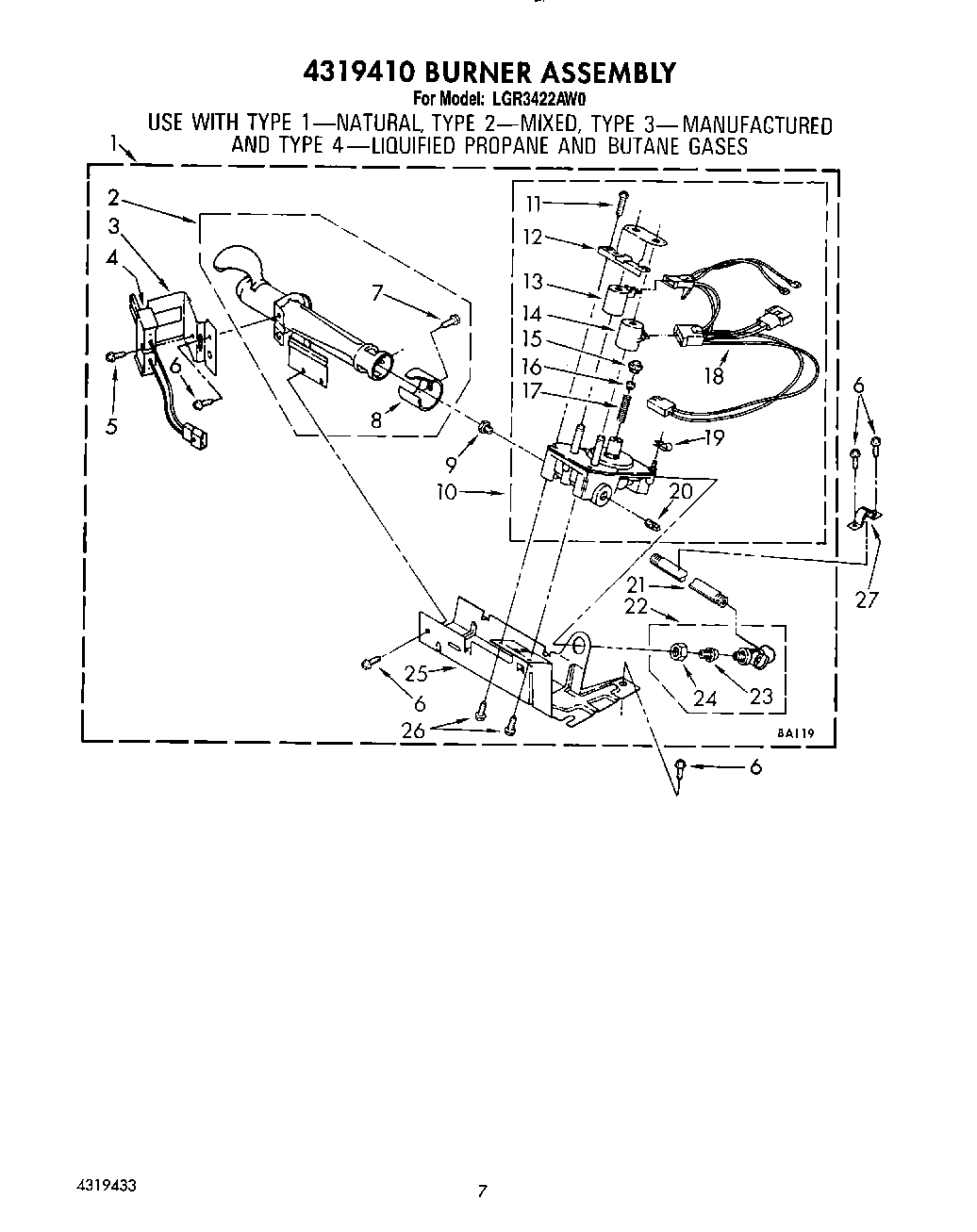

LGR3422AN0 05 – 4319410 BURNER

Products

Position	Product
1	Burner, Complete (Refer to Page 7 For Further Burner Breakdown)
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Screw, Tapping
8	Shutter, Air
9	WP234826 Whirlpool Gas Orifice
9	Orifice, Burner (Type 2)
9	Orifice, Burner (Type 3)
9	WP234868 Whirlpool Gas Orifice
9	WP229742 Whirlpool Gas Orifice
10	279923 Whirlpool Gas Valve
11	694421 Whirlpool Screw Assembly
12	694538 Whirlpool Bracket
14	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15	WP694424 Whirlpool Limiter
16	WP694423 Whirlpool Regulator
17	WP694422 Whirlpool Spring
18	WP3401850 Whirlpool Wire Harness
19	WPL 694510
20	W10295523 Whirlpool Plug
21	Pipe, Gas Supply
22	Valve & Union, Shut-Off
23	3393767 Whirlpool Pipe
24	Nut, Compression
26	WP90767 Whirlpool Screw
27	Kit, Conversion Type 1 To Type 3 (MFD)
27	341029 Whirlpool Clamp
27	W10402145 Whirlpool LP Gas Connection
