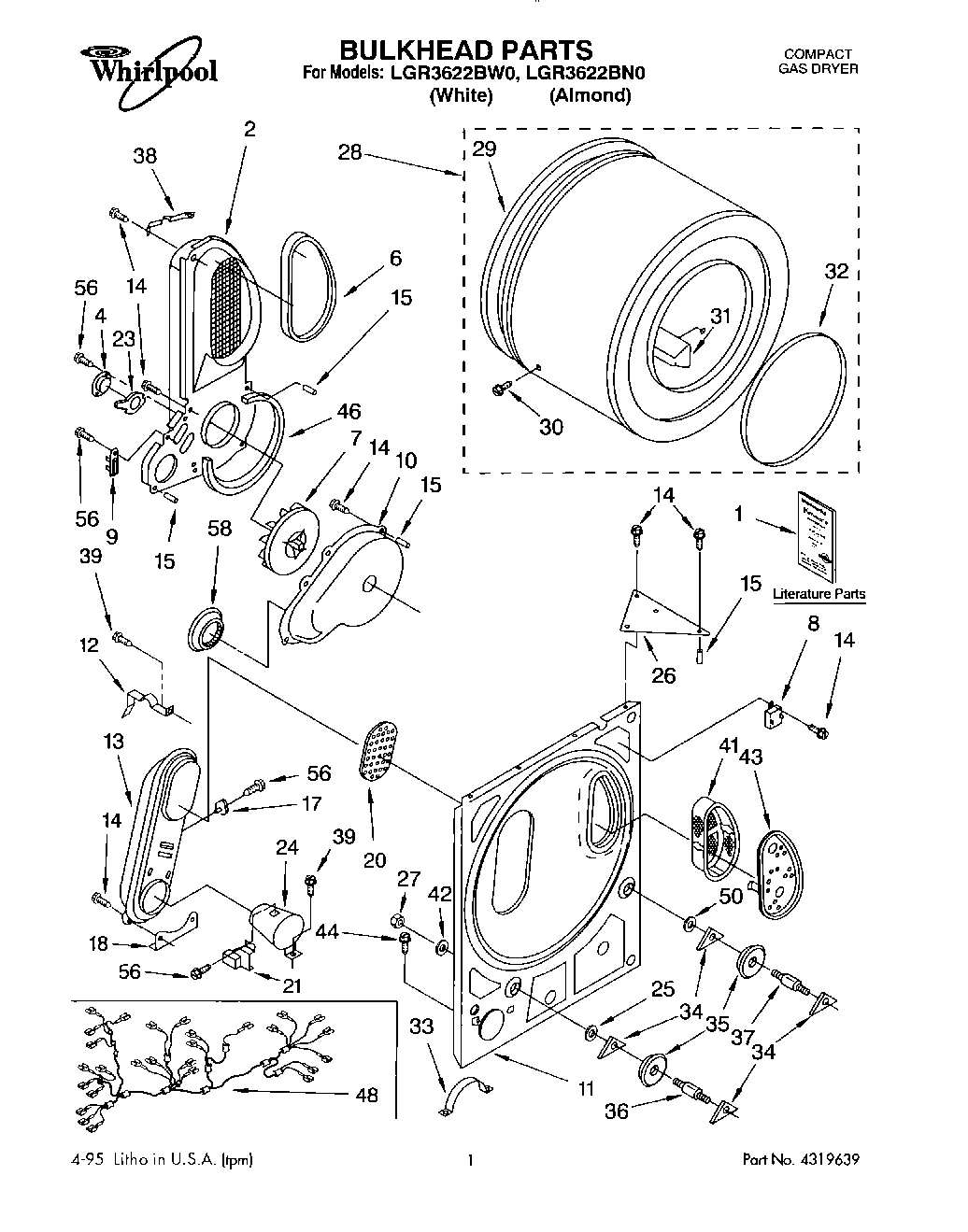

LGR3622BN0 01 – BULKHEAD, LIT/OPTIONAL

LGR3622BN0 01 – BULKHEAD, LIT/OPTIONAL

Written by

in

LGR3622BN0 01 – BULKHEAD, LIT/OPTIONAL

Products

PositionProduct
1Literature Parts (Instructions, Installation)
1Literature Parts (Guide, Use & Care)
1Literature Parts (Label, Operating Instructions)
1Literature Parts (Label, Wiring Diagram)
2Air Duct Assembly
4WP694674 Whirlpool Cycling Thermostat
6SEAL
7WP696426 Whirlpool Wheel
8WP694419 Whirlpool Buzzer Adjuster
9WP3392519 Whirlpool Dryer Thermal Fuse
10696419 Whirlpool Housing
11Bulkhead
12279771 Whirlpool Clip
13Box, Heater
14SCREW
15W10491983 Whirlpool Tine Tip
17W11568973 Whirlpool Thermostat Fix
18347455 Whirlpool Support Assembly
20345335 Whirlpool Cover
21WP338906 Whirlpool Dryer Gas Sensor
23Heater, Thermostat
24279900 Whirlpool Box O/S1
25WP3388703 Whirlpool Washer
26345325 Whirlpool Gusset
27WP3359452 Whirlpool Nut
283391834 Whirlpool Drum
29SEAL
30Screw, 11-16 x 7/8
31685207 Whirlpool Dryer Baffle
32WP3394508 Whirlpool Bearing Ring
338528351 Whirlpool Clip
34WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35349241T Whirlpool Dryer Drum Support Roller Kit
36SHAFT SUPPORT ROLLER DRYER
37SHAFT SUPPORT ROLLER DRYER
38345396 Whirlpool Clip
41W10828351 Whirlpool Dryer Filter Lint Screen with Cover
42Washer, Support
44WP3390631 Whirlpool Screw
46Seal, Air Duct
48Harness, Wiring
50Washer, Support
56WPW10139210 Whirlpool Screw
58350938 Whirlpool Spray Gun
58350956 Whirlpool Spray Assembly
5872017 Whirlpool Appliance Touch-Up Paint White
58799344 Whirlpool Refrigerator Paint
58WP72107 Whirlpool Touchup
58Leveler (Thinner)
58Almond (Uncut)
58W11233063 Whirlpool Shield Assembly
58350930 Whirlpool White Spray Paint
