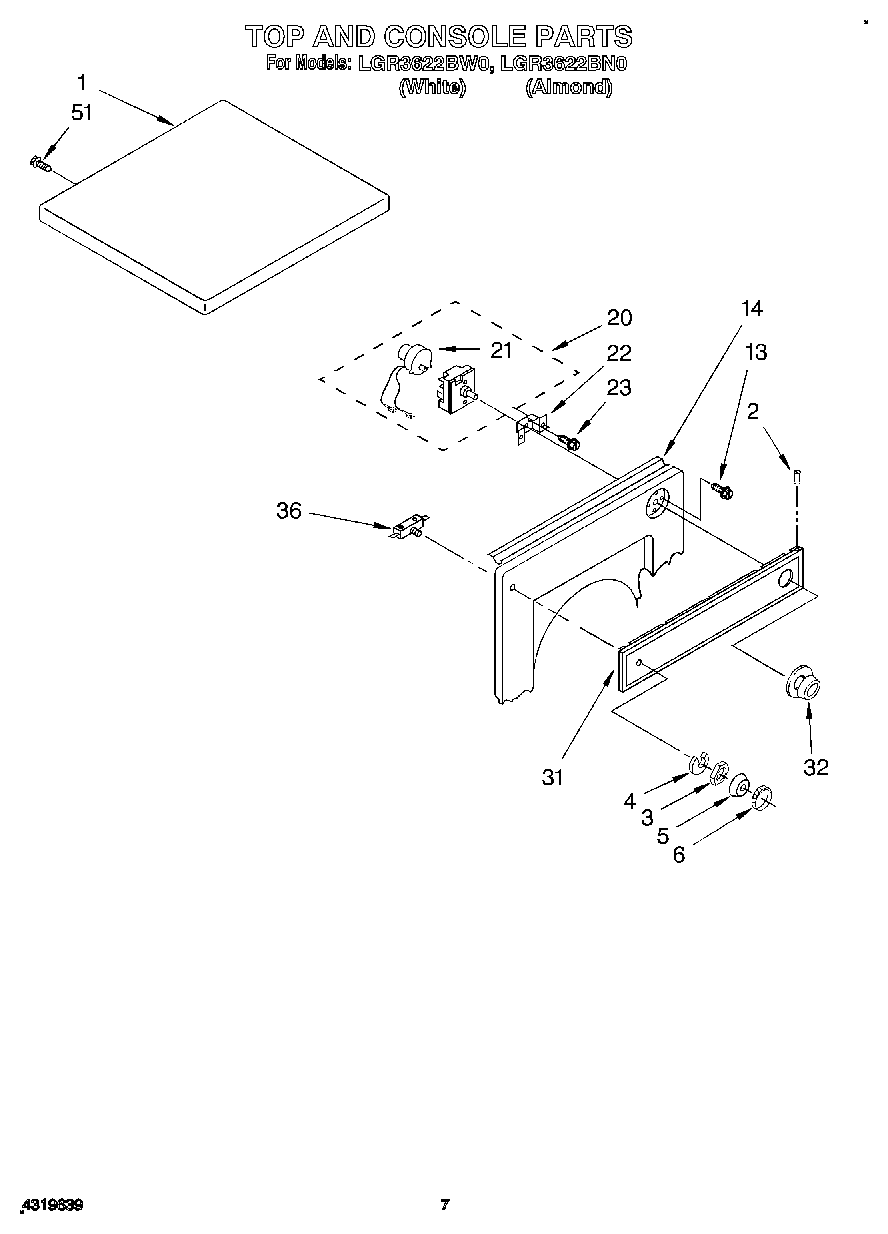

LGR3622BN0 04 – TOP AND CONSOLE

Products

Position	Product
1	Top (Almond)
1	345703 Whirlpool White Maintop
2	Rivet, Plastic (4)
3	Nut, Hex
4	Lockwasher
5	Ring, Trim
6	Nut, Knurled
13	WPW10139210 Whirlpool Screw
14	686770 Whirlpool Support Bracket
20	WP8563882 Whirlpool Timer Assembly
21	(Timer Motor Not Serviceable)
22	348171 Whirlpool Bracket
23	303776 Whirlpool Dishwasher Screw
31	Panel, Control (White)
31	Panel, Control (Almond)
32	Timer Knob & Dial (White)
32	Timer Knob & Dial (Almond)
36	Switch, Push-To-Start
51	SCREW
