LGR3622BW0 03 – 4319410 BURNER ASSEMBLY

LGR3622BW0 03 – 4319410 BURNER ASSEMBLY

Written by

in

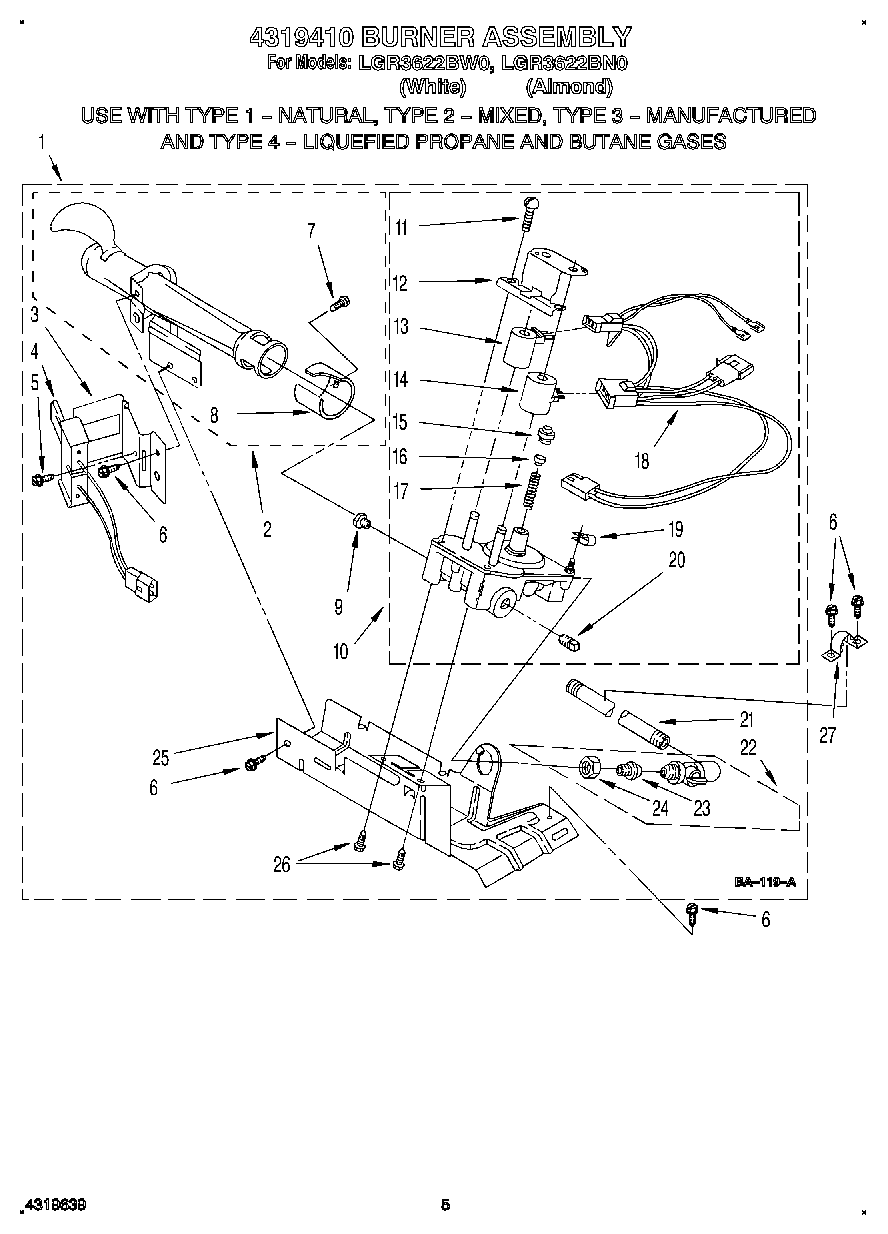

LGR3622BW0 03 – 4319410 BURNER ASSEMBLY

Products

PositionProduct
1Burner, Complete (Refer to Page 7 For Further Burner Breakdown)
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Screw, Tapping
8Shutter, Air
9WP234826 Whirlpool Gas Orifice
9Orifice, Burner (Type 2)
9Orifice, Burner (Type 3)
9WP234868 Whirlpool Gas Orifice
9WP229742 Whirlpool Gas Orifice
10279923 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
18WP3401850 Whirlpool Wire Harness
19WPL 694510
20W10295523 Whirlpool Plug
21Pipe, Gas Supply
22Valve & Union, Shut-Off
233393767 Whirlpool Pipe
24Nut, Compression
25Base, Burner
26WP90767 Whirlpool Screw
27341029 Whirlpool Clamp
27W10402145 Whirlpool LP Gas Connection
