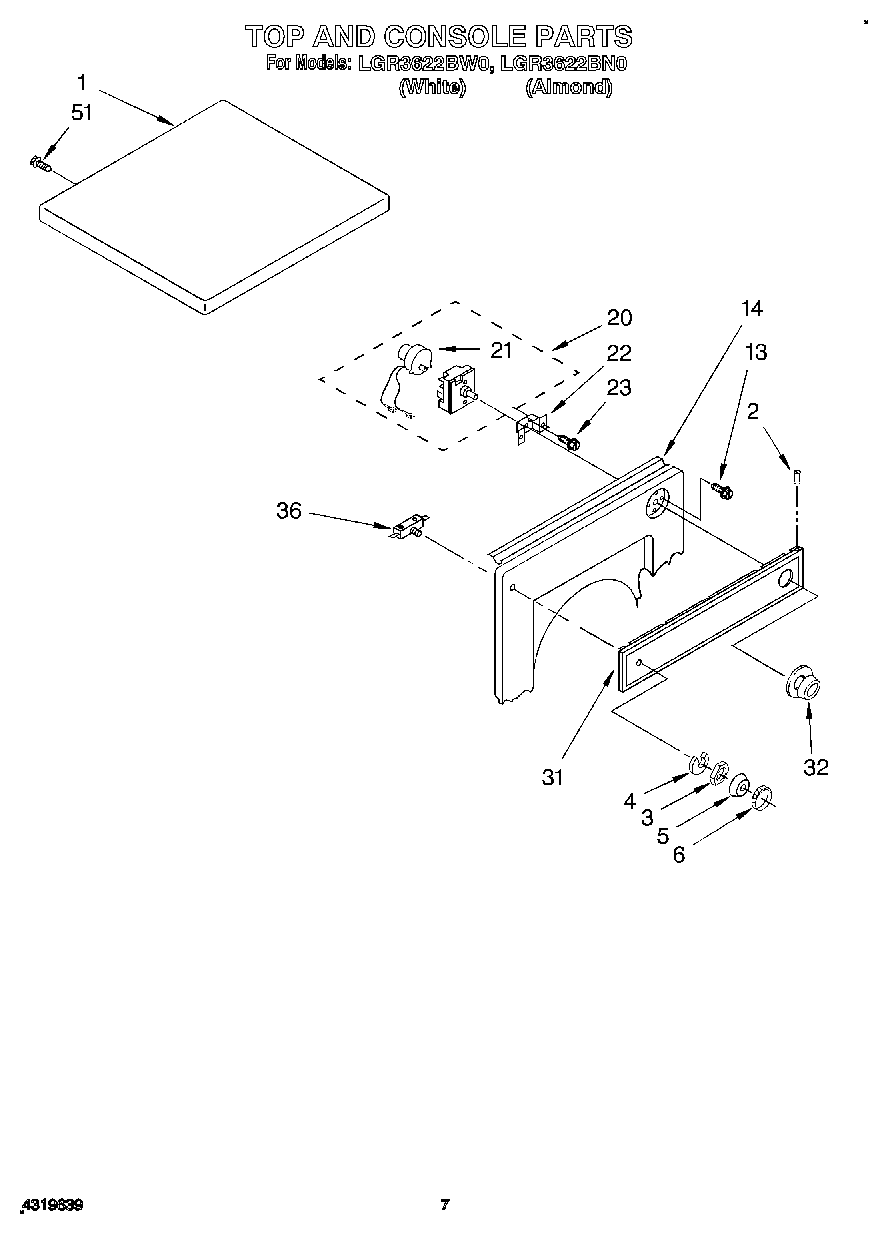

LGR3622BW0 04 – TOP AND CONSOLE

Products

PositionProduct
1Top (Almond)
1345703 Whirlpool White Maintop
2Rivet, Plastic (4)
3Nut, Hex
4Lockwasher
5Ring, Trim
6Nut, Knurled
13WPW10139210 Whirlpool Screw
14686770 Whirlpool Support Bracket
20WP8563882 Whirlpool Timer Assembly
21(Timer Motor Not Serviceable)
22348171 Whirlpool Bracket
23303776 Whirlpool Dishwasher Screw
31Panel, Control (White)
31Panel, Control (Almond)
32Timer Knob & Dial (White)
32Timer Knob & Dial (Almond)
36Switch, Push-To-Start
51SCREW
