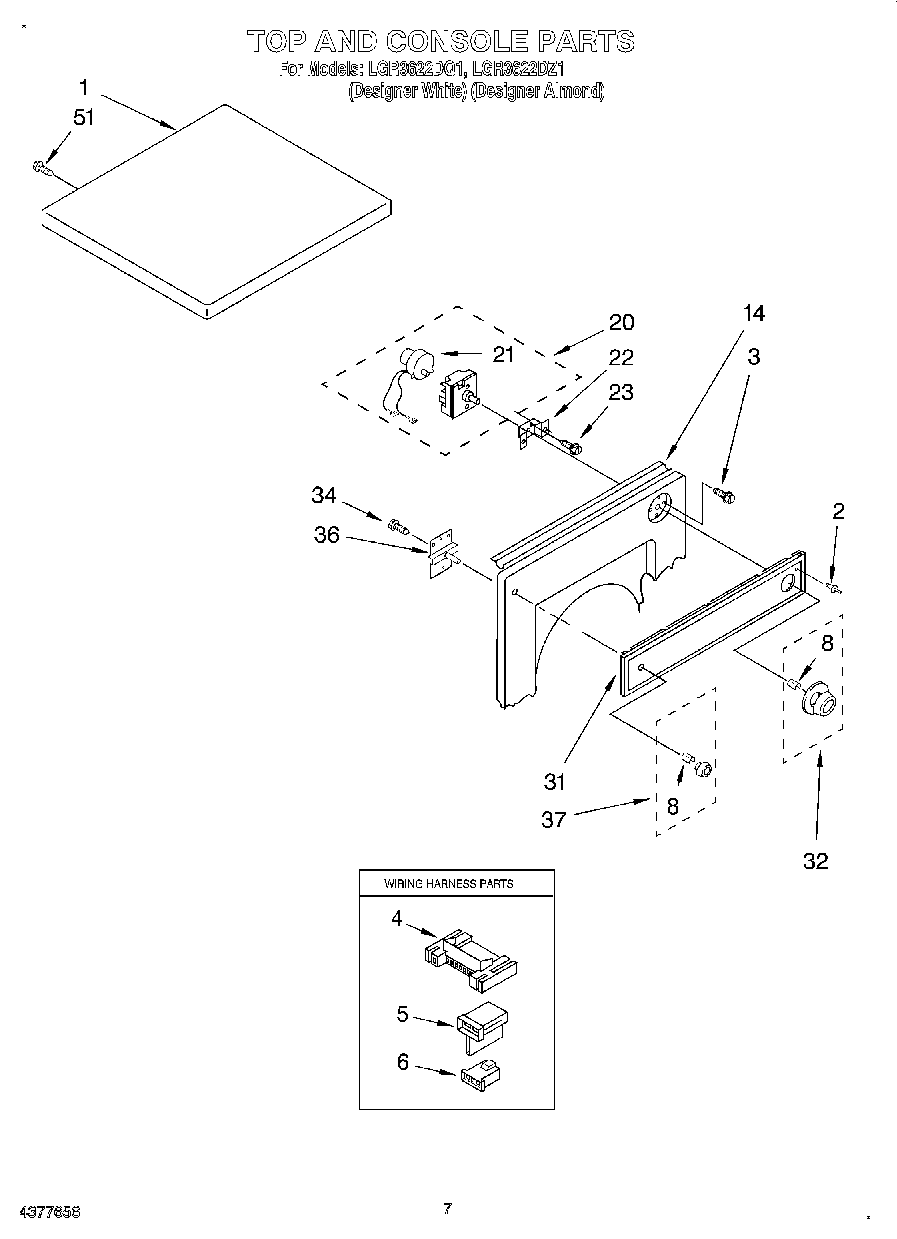

LGR3622DQ1 04 – TOP AND CONSOLE

Products

Position	Product
1	345703 Whirlpool White Maintop
1	Top (Almond)
2	Rivet, Plastic (4)
3	WPW10139210 Whirlpool Screw
4	3395683 Whirlpool Connector
5	WP3403499 Whirlpool Connector
6	WP3403498 Whirlpool Connector
8	WP688805 Whirlpool Spring Clip
14	Protector, Support (11 1/2 “)
20	WP8563882 Whirlpool Timer Assembly
21	(Timer Motor Not Serviceable)
22	348171 Whirlpool Bracket
23	303776 Whirlpool Dishwasher Screw
31	Panel, Control (White)
31	Panel, Control (Almond)
32	Timer Knob & Dial (White)
32	Timer Knob & Dial (Almond)
34	WP3390631 Whirlpool Screw
36	Switch, Push-To-Start
37	WP3957800 Whirlpool Knob
51	350938 Whirlpool Spray Gun
51	350956 Whirlpool Spray Assembly
51	72017 Whirlpool Appliance Touch-Up Paint White
51	799344 Whirlpool Refrigerator Paint
51	WP72107 Whirlpool Touchup
51	Almond (Uncut)
51	SCREW
51	350930 Whirlpool White Spray Paint
