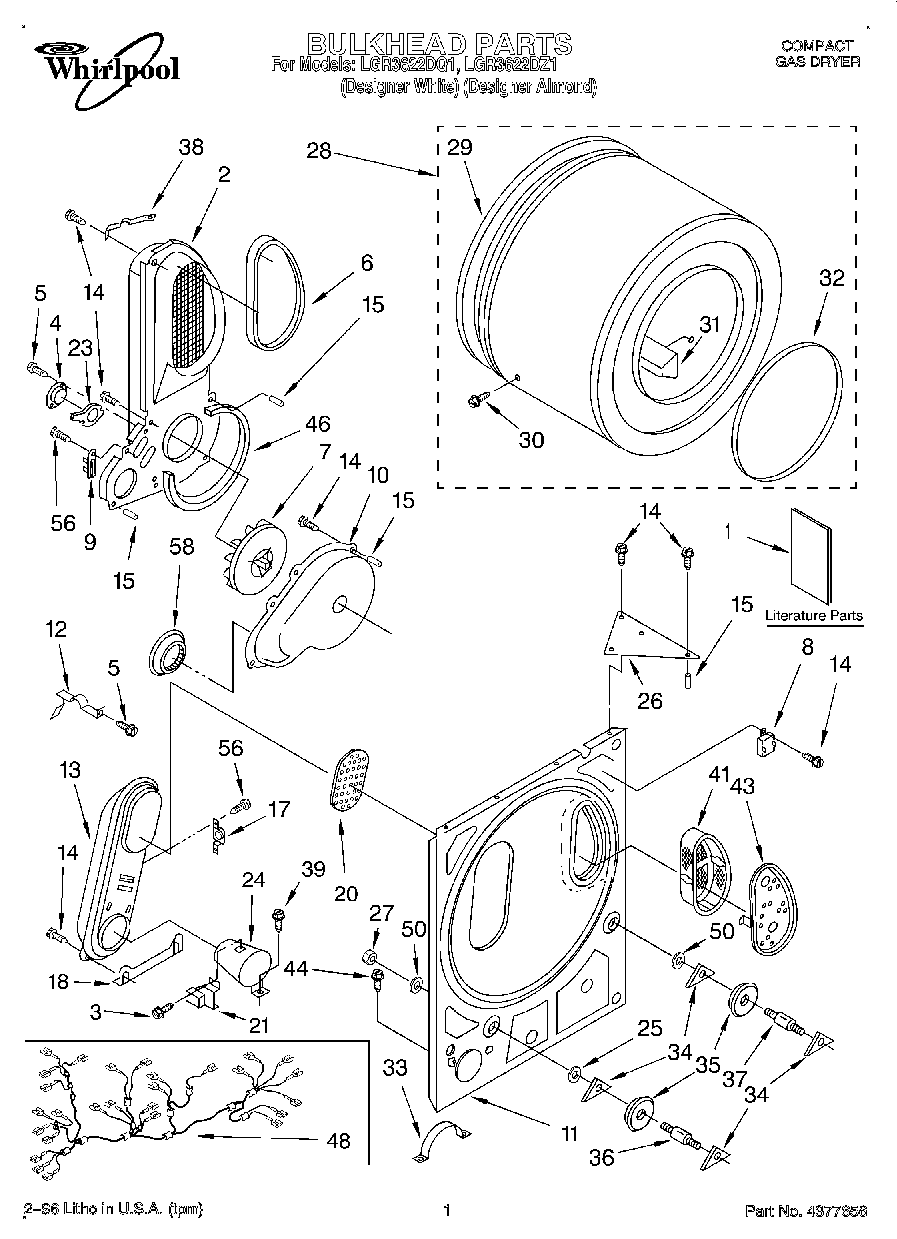

LGR3622DZ1 01 – BULKHEAD, LITERATURE

Products

Position	Product
1	Literature Parts (Label, Operating Instructions)
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Label, Wiring Diagram)
1	Literature Parts (Guide, Use & Care)
2	Air Duct Assembly
3	WP3390631 Whirlpool Screw
4	WP694674 Whirlpool Cycling Thermostat
5	WP489463 Whirlpool Refrigerator Screw
6	SEAL
7	WP696426 Whirlpool Wheel
8	WP694419 Whirlpool Buzzer Adjuster
9	WP3392519 Whirlpool Dryer Thermal Fuse
10	696419 Whirlpool Housing
11	Bulkhead
12	279771 Whirlpool Clip
13	Box, Heater
14	SCREW
15	W10491983 Whirlpool Tine Tip
17	W11050897 Whirlpool Dryer High Limit Thermostat
18	347455 Whirlpool Support Assembly
20	345335 Whirlpool Cover
21	WP338906 Whirlpool Dryer Gas Sensor
23	Heater, Thermostat
24	279900 Whirlpool Box O/S1
25	WP3388703 Whirlpool Washer
26	345325 Whirlpool Gusset
27	WP3359452 Whirlpool Nut
28	3391834 Whirlpool Drum
29	SEAL
30	Screw
31	685207 Whirlpool Dryer Baffle
32	WP3394508 Whirlpool Bearing Ring
33	8528351 Whirlpool Clip
34	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35	349241T Whirlpool Dryer Drum Support Roller Kit
36	SHAFT SUPPORT ROLLER DRYER
37	SHAFT SUPPORT ROLLER DRYER
38	345396 Whirlpool Clip
41	W10828351 Whirlpool Dryer Filter Lint Screen with Cover
46	Seal, Air Duct
48	Harness, Wiring
50	WP348197 Whirlpool Washer Assembly
56	WPW10139210 Whirlpool Screw
58	W11233063 Whirlpool Shield Assembly
