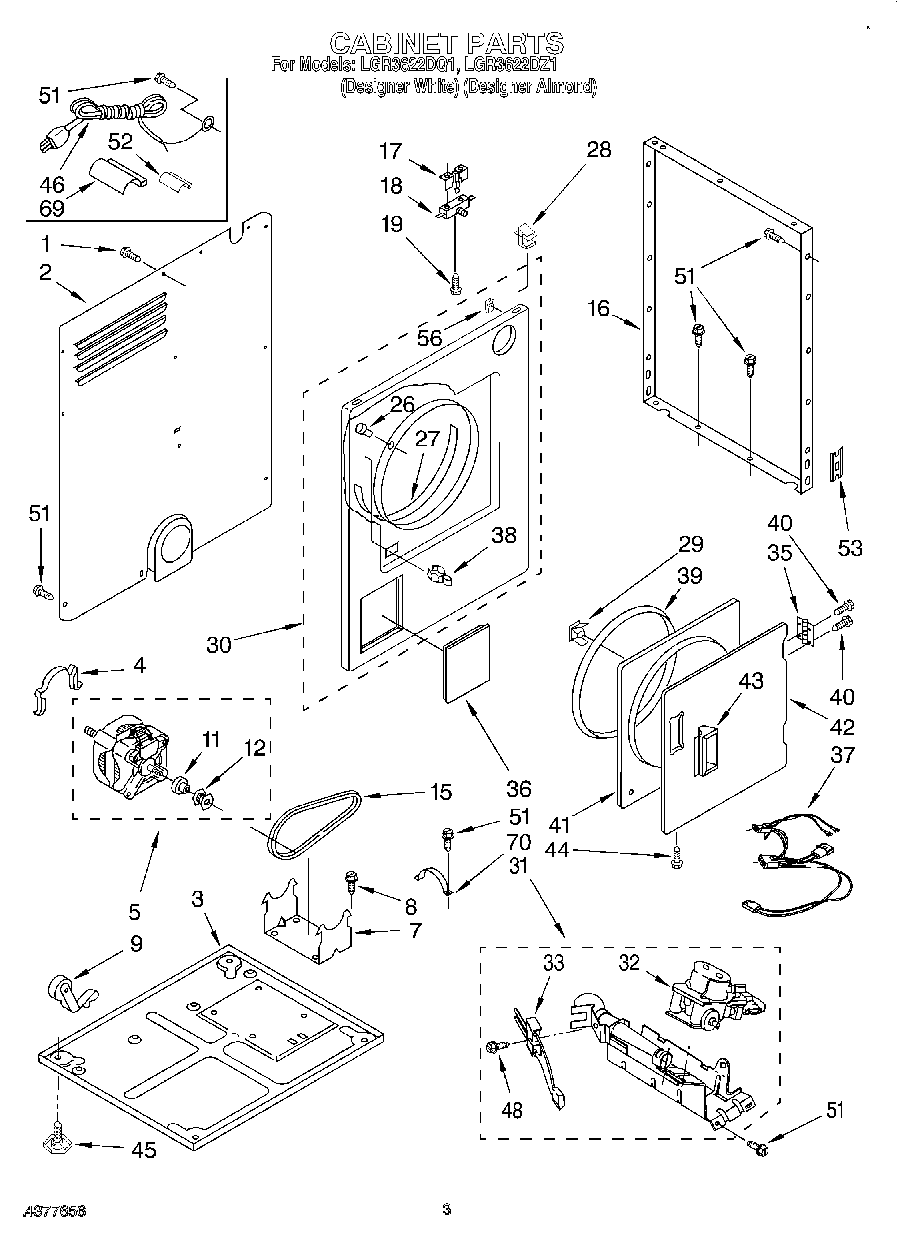

LGR3622DZ1 02 – CABINET

Products

Position	Product
1	W10850756 Whirlpool Screw
2	Panel, Rear
3	WP348726 Whirlpool Base Assembly
4	WP660658 Whirlpool Clamp
5	279827 Whirlpool Dryer Drive Motor
7	696541 Whirlpool Base
8	WP3390631 Whirlpool Screw
9	WP691366 Whirlpool Dryer Idler Pulley Assembly
11	WP3393657 Whirlpool Belt Retainer
12	8066051 Whirlpool Motor Pulley
15	3394652 Whirlpool Drum Belt
16	Panel, Side (2) (Almond)
16	Panel, Side (2) (White)
17	WP691581 Whirlpool Actuator
18	W10820036 Whirlpool Door Switch Kit
19	WP98129 Whirlpool Screw
26	279220 Whirlpool Clip
27	279264 Whirlpool Bearing and Seal Kit
28	WP345670 Whirlpool Lock
29	WP3389441 Whirlpool Door Catch
30	Front Panel (White)
30	Front Panel (Almond)
31	Burner Assembly 60 Hz. (Type 1 & 4) (White Rodgers)
32	279923 Whirlpool Gas Valve
33	279311 Whirlpool Dryer Flat Igniter with Bracket
35	WP348023 Whirlpool Hinge
36	Door, Access (Almond)
36	Door, Access (White)
37	WP3401850 Whirlpool Wire Harness
38	279570 Whirlpool Dryer Door Latch Kit
39	W11613302 Whirlpool Door Seal
41	280077 Whirlpool Door
42	WP348205 Whirlpool Door
42	Door, Front (Almond)
43	Handle, Door (Almond)
43	WP686711 Whirlpool Door Handle
44	WP694091 Whirlpool Screw
45	WP233550 Whirlpool Leveling Feet
46	Cord, Power
48	WPW10366705 Whirlpool Screw
51	SCREW
52	WPL 686768
53	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
56	WP98234 Whirlpool Nut
69	686770 Whirlpool Support Bracket
70	341029 Whirlpool Clamp
