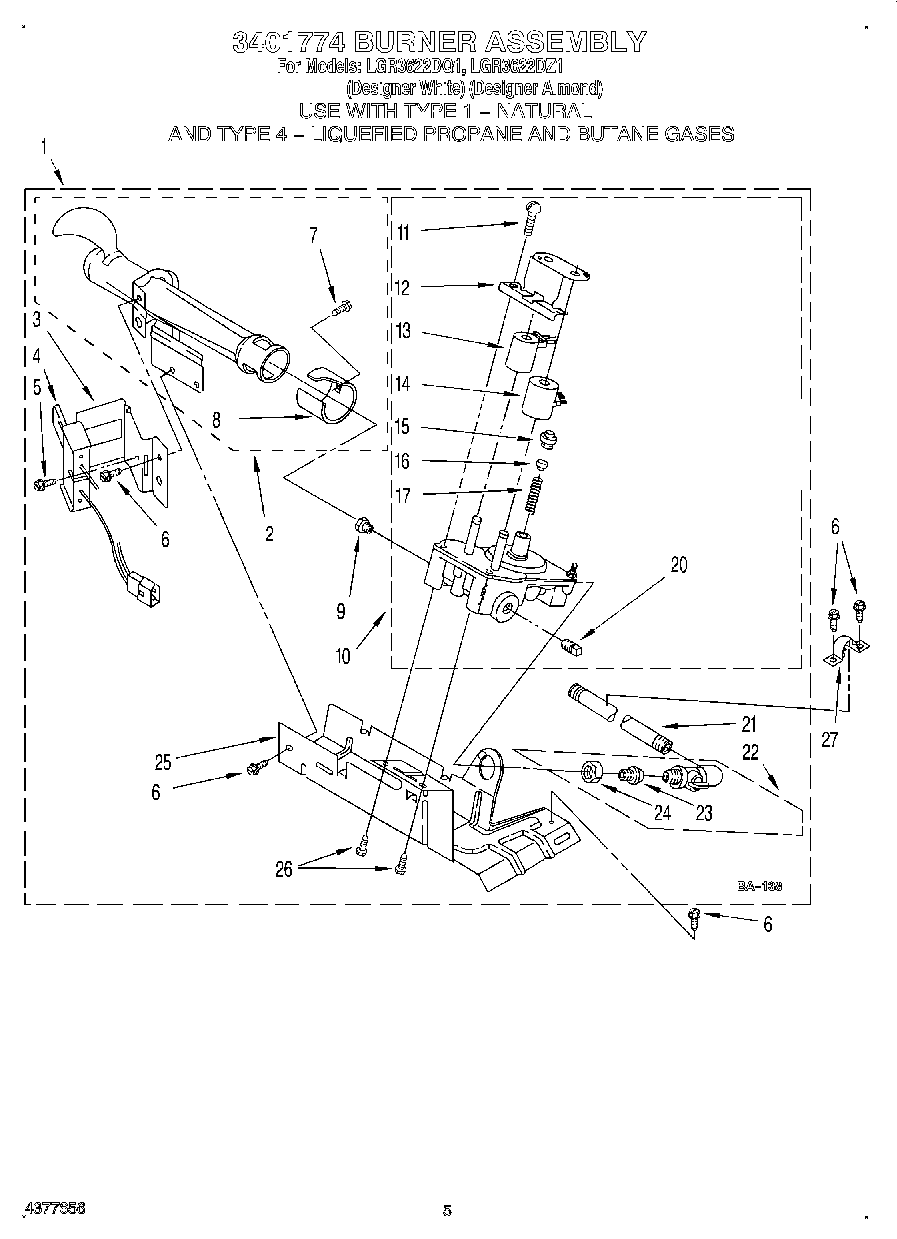

LGR3622DZ1 03 – 3401774 BURNER

Products

PositionProduct
1Burner Assembly 60 Hz. (Type 1 & 4) (White Rodgers)
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Screw, Tapping
8Shutter, Air
9WP347743 Whirlpool Gas Orifice
9WP347744 Whirlpool Gas Orifice
9Orifice, Burner (Type 1)
10279923 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
20W10295523 Whirlpool Plug
21Pipe, Gas Supply
22Valve & Union, Shut-Off
233393767 Whirlpool Pipe
24Nut, Compression
25Base, Burner
26WP693995 Whirlpool Screw
27341029 Whirlpool Clamp
27W10402145 Whirlpool LP Gas Connection
