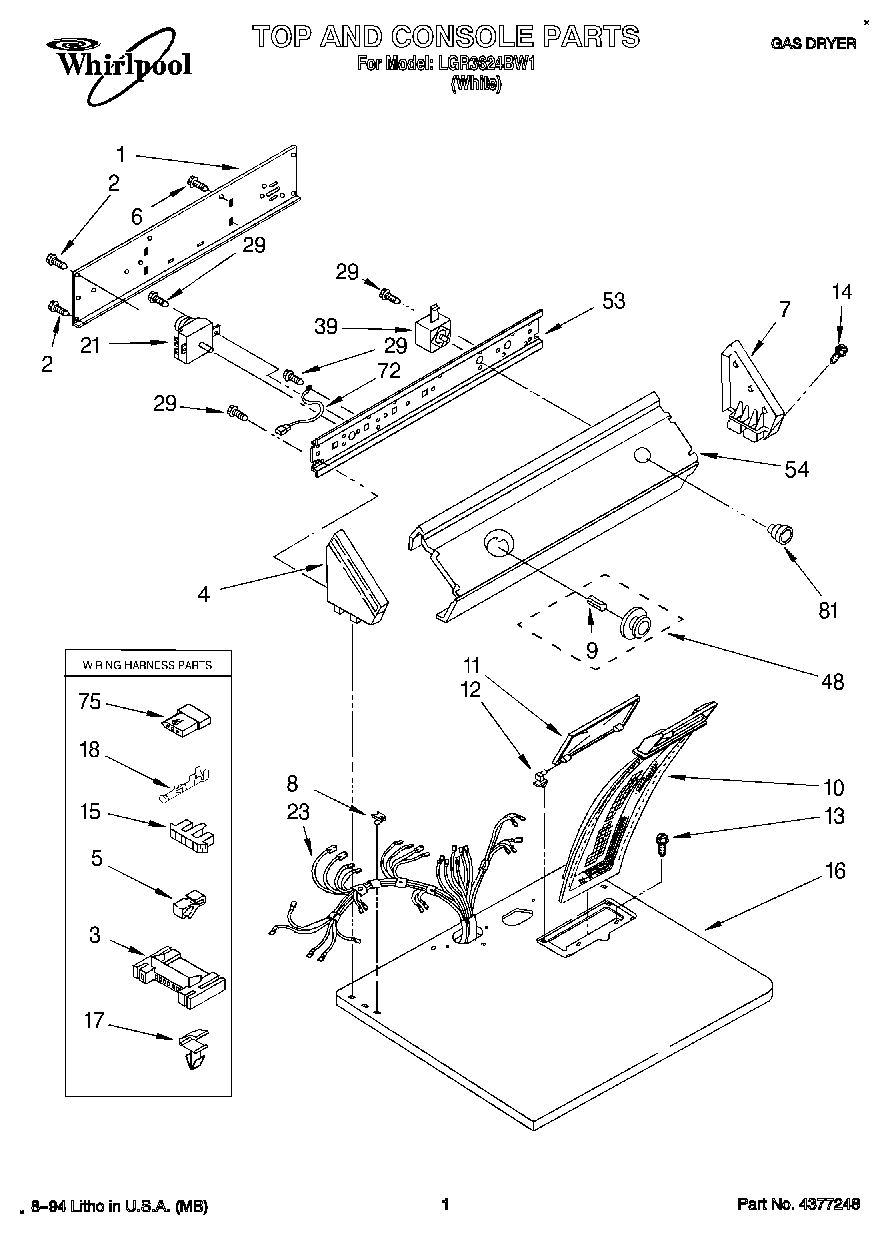

LGR3624BW1 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGR3624BW1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGR3624BW1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Instructions, Installation
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Guide, Use & Care
72017 Whirlpool Appliance Touch-Up Paint White
Label, Wiring Diagram
350956 Whirlpool Spray Assembly
Dryer
350938 Whirlpool Spray Gun
Almond (Uncut)
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
33395683 Whirlpool Connector
4Cap, End (L.H.) (White)
5Clip, Retainer
6WP693995 Whirlpool Screw
7Cap, End (R.H.) (White)
8WP357213 Whirlpool Hinge Stopper
9WP688805 Whirlpool Spring Clip
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15Connector, Timer
16Top (White)
17WP3394427 Whirlpool Clip
18WP94614 Whirlpool Terminal
21WP3976568 Whirlpool Timer
23Harness, Wiring
29WPW10139210 Whirlpool Screw
39WP3395382 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (White)
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
81Knob, Push To Start
