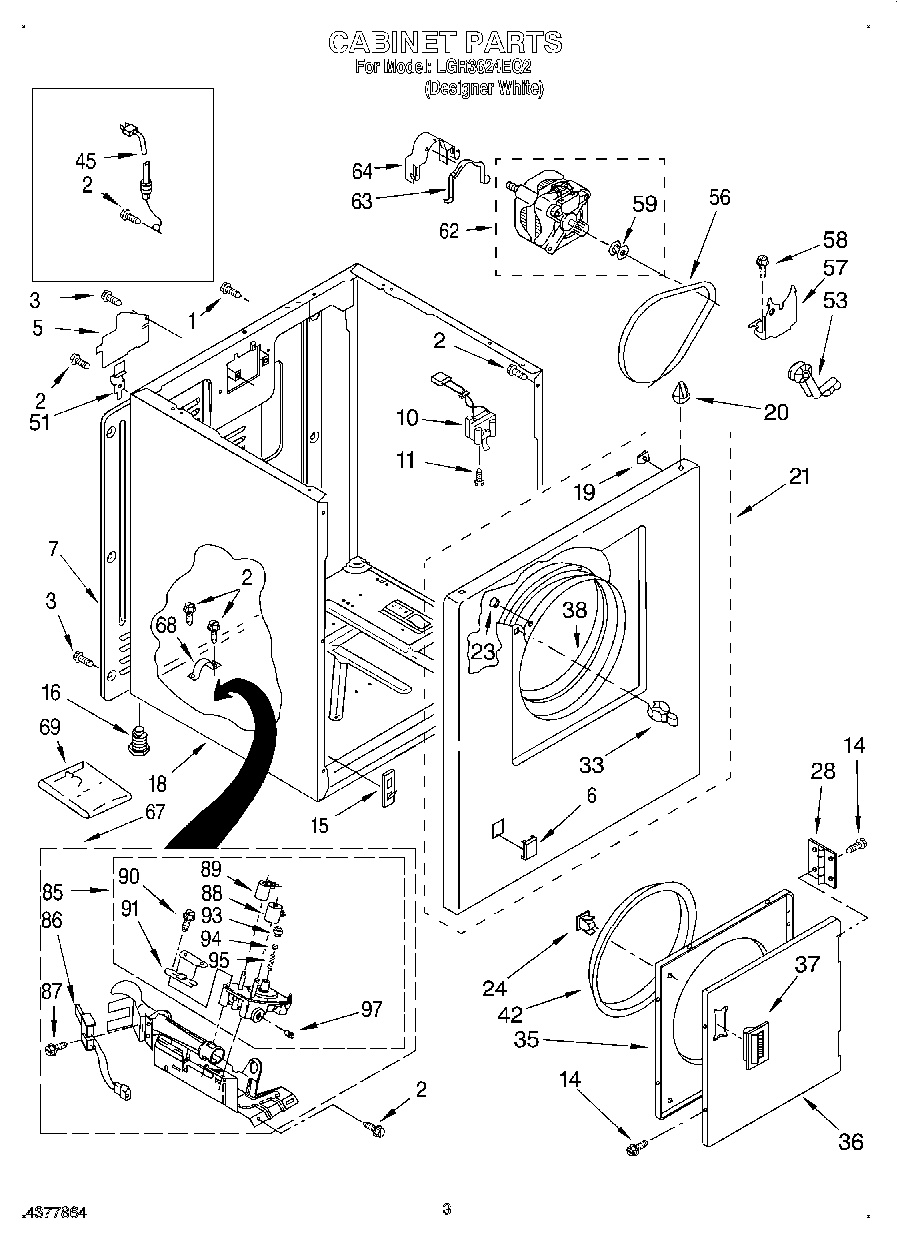

LGR3624EQ2 02 – CABINET

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
5	W11539855 Whirlpool Refrigerator Pump
6	Plug, Front Panel (White)
7	280040 Whirlpool Rear Panel
10	WP3406102 Whirlpool Door Switch
11	WP3395530 Whirlpool Screw
14	WP694091 Whirlpool Screw
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
18	Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly (White)
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
28	WP348023 Whirlpool Hinge
33	279570 Whirlpool Dryer Door Latch Kit
35	280077 Whirlpool Door
36	WP348205 Whirlpool Door
37	WP686711 Whirlpool Door Handle
38	279264 Whirlpool Bearing and Seal Kit
42	W11613302 Whirlpool Door Seal
45	W11222083 Whirlpool Power Cord
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
62	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
64	WP3404162 Whirlpool Clamp
67	WPL 3402844
68	341029 Whirlpool Clamp
69	49572A Whirlpool Dryer Propane Gas Conversion Kit
85	279923 Whirlpool Gas Valve
86	279311 Whirlpool Dryer Flat Igniter with Bracket
87	WPW10366705 Whirlpool Screw
88	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
90	694421 Whirlpool Screw Assembly
91	694538 Whirlpool Bracket
93	WP694424 Whirlpool Limiter
94	WP694423 Whirlpool Regulator
95	WP694422 Whirlpool Spring
97	W10295523 Whirlpool Plug
