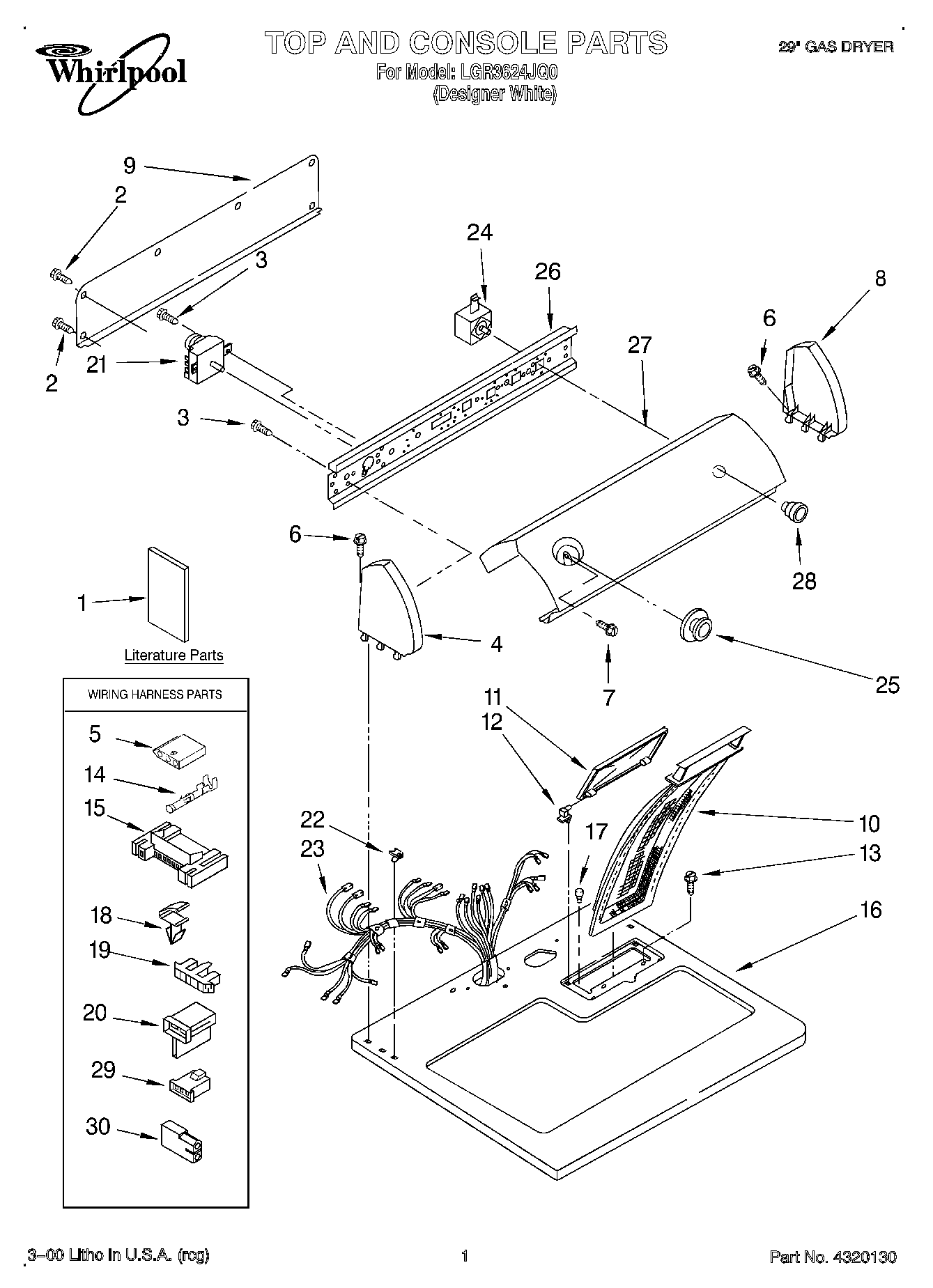

LGR3624JQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGR3624JQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGR3624JQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
Dryer
1Label, Wiring Diagram
1Literature Parts (Guide, Use & Care)
1Instructions, Installation
2WP693995 Whirlpool Screw
3WPW10139210 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73400859 Whirlpool Screw
8W10820038 Whirlpool Endcap
9W10103406 Whirlpool Rear Panel
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP94614 Whirlpool Terminal
153395683 Whirlpool Connector
16Top
17Bumper, Lint Lid
18WP3394427 Whirlpool Clip
19Connector, Timer
20WP3403499 Whirlpool Connector
21WP3976575 Whirlpool Timer
22WP357213 Whirlpool Hinge Stopper
23Harness, Wiring
24WP3395382 Whirlpool Push To Start Switch
25WP3957754 Whirlpool Knob Assembly
26Bracket, Control
27Panel, Control
283957804 Whirlpool Knob
29WP3403498 Whirlpool Connector
30Receptacle, Latching (2-Way) (Uses Terminal 94614)
30799344 Whirlpool Refrigerator Paint
3072017 Whirlpool Appliance Touch-Up Paint White
30350938 Whirlpool Spray Gun
30350930 Whirlpool White Spray Paint
